Stain inspection inside paper cups

Stain inspection inside paper cups

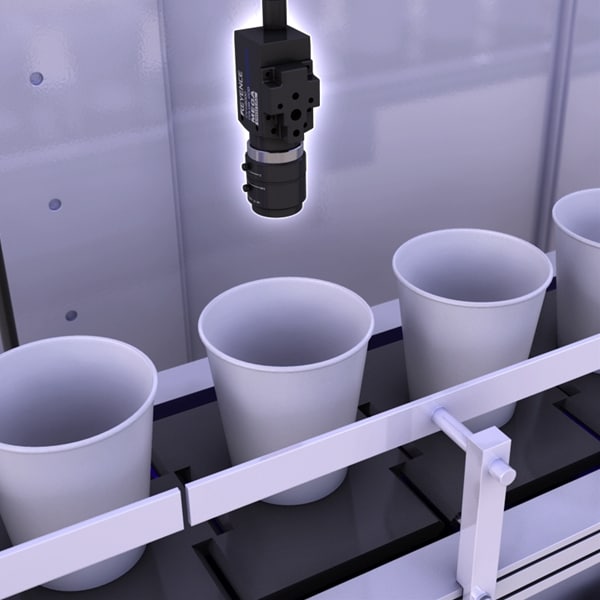

The vision system inspects for contaminants inside paper cups.

Fine Color Processing extracts a color's hue, saturation, and brightness values. Stains are then processed as variances in any of these values. Gradual changes caused by seams or lighting variations on curved surfaces can then be factored out in order to eliminate false detections.


Color extraction was used to detect flaws and foreign particles inside of paper cups, but seams were often detected as flaws. The CV-5000 Series Fine Color Processing can adjust for gradual changes in color such as a seam and extracts the stark differences in hue caused by a stain.


  • XG-8000 series - Customizable Vision System

    Offering a lineup of up to 21 megapixel area cameras and 8K line scan cameras, the XG Series contains powerful vision system technology providing flexibility and power to solve a wide range of applications.

  • XG-7000 series - Customizable Vision System

    The XG Series offers programming directly with the controller or advanced programming using the optional Vision Editor development software.

  • CV-X series - Intuitive Vision System

    The CV-X Series is loaded with powerful features that support GLOBAL STANDARDS in machine vision inspection. State-of-the-art algorithms, that can be set by any user, ensure quick setup and long-term reliability. The best solution can be selected from a variety of options.

  • CV-5000 series - Intuitive Vision System

    The CV-5000 Series has the largest number of camera types for its class, letting you select the optimum camera for a wide range of applications.

  • CV-3000 series - Intuitive Vision System

    Providing the ultimate flexibility with a wide variety of camera choices using the industry's highest-performance image processing engine.
