Detecting bent terminals in ignition coils

Detecting bent terminals in ignition coils

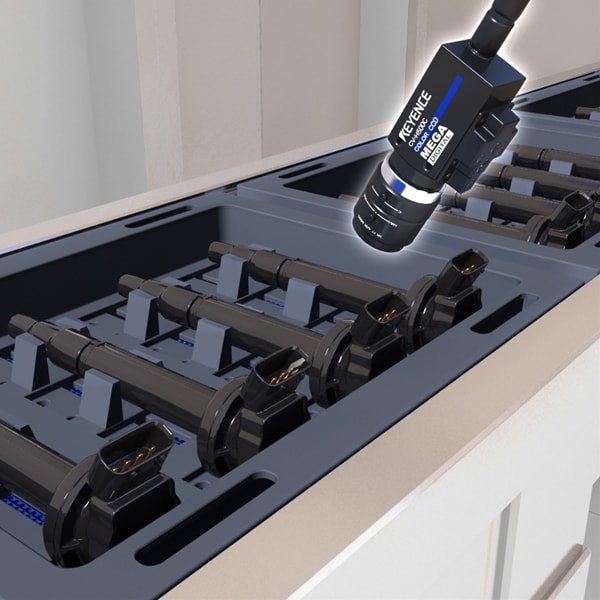

Checking for bent terminals.

The software accurately measures the distance between the coordinates of each terminal and the workpiece edges, while compensating for workpiece tilt. The Trend Edge Position tool of the XG Series measures multiple edge positions in one inspection, reducing the time spent entering settings.


The inspection method previously used consisted of designating regions above and below the terminals, and using simple image sensors to check for the presence of terminals in those regions. While the method was successful in detecting significantly bent terminals that entered the check region, it couldn't check the pin alignment with precision. Using machine vision equipment that can detect multiple points makes it possible to do high precision inspections of bent terminals.


  • XG-8000 series - Customizable Vision System

    Offering a lineup of up to 21 megapixel area cameras and 8K line scan cameras, the XG Series contains powerful vision system technology providing flexibility and power to solve a wide range of applications.

  • XG-7000 series - Customizable Vision System

    The XG Series offers programming directly with the controller or advanced programming using the optional Vision Editor development software.

  • CV-X series - Intuitive Vision System

    The CV-X Series is loaded with powerful features that support GLOBAL STANDARDS in machine vision inspection. State-of-the-art algorithms, that can be set by any user, ensure quick setup and long-term reliability. The best solution can be selected from a variety of options.

  • CV-5000 series - Intuitive Vision System

    The CV-5000 Series has the largest number of camera types for its class, letting you select the optimum camera for a wide range of applications.

  • CV-3000 series - Intuitive Vision System

    Providing the ultimate flexibility with a wide variety of camera choices using the industry's highest-performance image processing engine.
