Checking workpiece seating in hot-forging dies

Checking workpiece seating in hot-forging dies

Automatically checking workpiece die seating during hot forging processes.

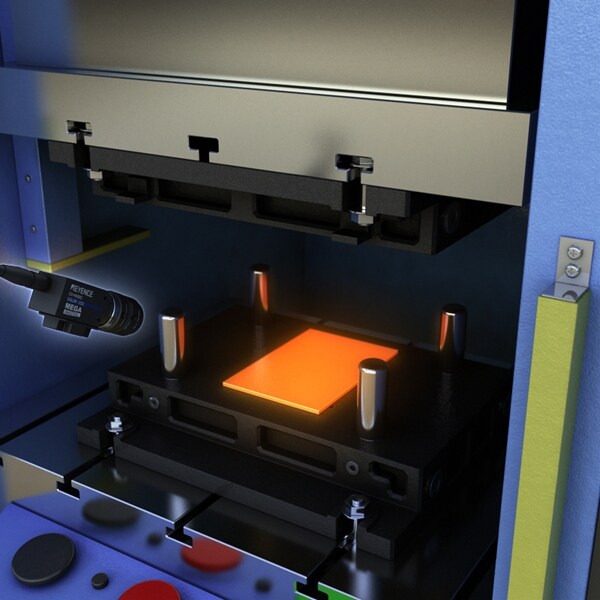

1. Since the workpieces are red-hot metal, they are affected by infrared which makes them appear blurry when photographed by a monochrome camera. The XG Series uses a color cameras to capture a clear, good-contrast image. 2. Previous methods of performing this inspection relied on the perceptions of the human operators to do the work. Using megapixel cameras provides high-precision measurement in order to do accurate inspections for misalignment.

Benefit

Since press cycles are between 3 and 5 seconds, the operator previously had to check the workpieces continuously and sometimes mistakes occurred. Using machine vision equipment ensures stable inspection, and reduces the number of workers needed.

LEARN THE DETAILS OF THE PRODUCT

  • XG-8000 series - Customizable Vision System

    Offering a lineup of up to 21 megapixel area cameras and 8K line scan cameras, the XG Series contains powerful vision system technology providing flexibility and power to solve a wide range of applications.

  • XG-7000 series - Customizable Vision System

    The XG Series offers programming directly with the controller or advanced programming using the optional Vision Editor development software.

  • CV-X series - Intuitive Vision System

    The CV-X Series is loaded with powerful features that support GLOBAL STANDARDS in machine vision inspection. State-of-the-art algorithms, that can be set by any user, ensure quick setup and long-term reliability. The best solution can be selected from a variety of options.

  • CV-5000 series - Intuitive Vision System

    The CV-5000 Series has the largest number of camera types for its class, letting you select the optimum camera for a wide range of applications.

  • CV-3000 series - Intuitive Vision System

    Providing the ultimate flexibility with a wide variety of camera choices using the industry's highest-performance image processing engine.
