Continuous Inkjet Printers / Case Coder
Case Coders for Corrugate & Cardboard Boxes
Corrugated packaging can have more complexity than most substrates. Depending on the thickness and makeup of the surface, ink absorbency varies. Box surfaces shift slightly on high-speed lines, meaning print quality suffers when equipment isn’t built to handle those variables. Even minor shifts on the line can misalign codes just enough to cause scan failures. Yet, the box must still carry critical information to ensure smooth production, logistics, and compliance, such as lot numbers, barcodes, and traceability data.
Every case needs to leave the line readable, accurate, and durable, regardless of volume, box type, or environmental conditions. Effective corrugate box printing and cardboard box coding help maintain these markings. When codes are clean and consistent, products flow without delay, inspection passes without exception, and inventory systems keep pace with demand.
Why Code Quality Matters for Corrugate
When a box code fails, the damage goes well beyond a missed scan as inventory stops moving, and shipments get delayed. Retailers may reject pallets with unreadable codes, which can directly affect the brand's reputation and operational efficiency.
Missing lines
Blurred codes
Stretched or compressed codes
Unreadable codes don’t just delay outbound shipments. They can trigger mountains of rework, block warehouse entries, or require full pallet returns. In high-volume operations, that level of disruption adds up quickly, whether that is in time, cost, or credibility.
Printing on corrugate requires more than just basic contrast. Even slight misalignments or nozzle issues can lead to unreadable codes on rough, absorbent cardboard. High-resolution case coding addresses these challenges by ensuring sharp, stable marks that stay clear and consistent through handling, transport, and scanning.
Integrated print inspection camera

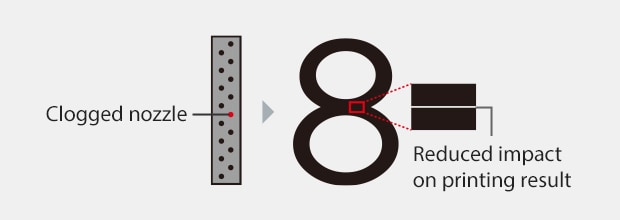

The CC-1000 Series delivers the high-res output needed for crisp, legible codes, with no missing lines or blurred characters. The system is less prone to clogging, and its built-in print inspection ensures flawless quality from the first box to the last.
Common Challenges in Cardboard Box Printing
Cardboard box printing may be cost-effective, but it can be a tough substrate to work with. Ink bleeds into the surface, edges may be crushed or warped, and surfaces aren’t always a uniform smoothness. Lower-resolution printers often can’t maintain scan-grade quality at production speeds, resulting in streaks, misalignments, or poor-quality marks that do not hold up to the process.
Conventional models (low-resolution)
CC-1000 Series (long working distance)
Printers mounted too close to the box are prone to splashback and collisions. That creates air bubbles in the printhead, interrupts ink flow, and leads to inconsistent marking. When codes are stretched or faded, inspection systems fail.
The CC-1000 Series helps prevent these issues by maintaining a longer print distance, which reduces contact risks. Its smart sensor system adjusts in real time to box height, vibration, and conveyor speed. That means no more manual compensating and no more surprises when boxes reach quality control.
Conventional models (short working distance)
CC-1000 Series (long working distance)
Benefits of the CC-1000 Series for Case Marking
Case coders tend to break down in three places: nozzle clogs, missed codes, and unclear maintenance steps. The CC-1000 Series addresses each one with simple, built-in solutions.
Its integrated inspection camera checks every box after printing. Codes are either correct or flagged immediately, eliminating guesswork and the need for manual spot checks. If a barcode is missing or unreadable, the system catches it before the product moves downstream.
One-touch head core replacement
Maintenance is fast and doesn’t require tools. Operators can swap out print cores with a single motion. Cleaning is handled through a built-in module that removes dried ink before it becomes a problem. And with a self-contained ink pad, there’s no risk of spills during purging.
Automatic synchronization of print and inspection settings
Everything runs from one screen. Print and inspection settings stay in sync. Teams don’t have to learn two systems or configure multiple devices to keep production moving. It’s fast to start, easy to maintain, and built for lines that can’t afford downtime.
Industries Benefiting from Corrugate Case Coding
Box coding is everywhere, and each industry has its own distinct requirements. However, all rely on consistent, scan-grade markings that withstand packaging, transport, and inspection.
Food and Beverage
Accurate codes reduce delays at inspection points and streamline product rotation. Clear expiration dates and batch numbers keep recalls controlled and short-lived instead of cascading through distribution.
Pharmaceutical
Reliable case coding simplifies audits and accelerates batch release. With production data locked to every box, quality teams gain confidence, and traceability becomes routine, not reactive.
Cosmetics and Personal Care
High-resolution case coders allow brands to meet packaging standards without sacrificing visual appeal. Fewer misprints mean less rework in cardboard box coding, especially when switching between product variants.
Consumer Electronics and Durable Goods
Sharp, scan-ready case codes reduce processing errors at warehouses and improve traceability for warranty tracking. Faster sorting and clearer identification keep fulfillment on pace with demand.
Automotive and Industrial Equipment
Durable box codes help maintain visibility across long storage cycles and complex logistics routes. Product tracking stays intact even in dust, vibration, or heavy handling environments.
Retail and Distribution
Consistent case coding supports smoother check-ins, fewer rejections, and tighter alignment with retail partner standards. That translates to faster shelf placement and fewer chargebacks.
Each of these industries depends on case coding not just for information, but for efficiency, accuracy, and traceability.
Applications for Corrugate and Cardboard Printing
Most coding systems are built for packaging film or labels. The CC-1000 Series handles the bigger cartons without losing sharpness or accuracy. This large-character inkjet system can print lot codes, barcodes, 2D codes, product details, and even logos directly onto cardboard. It supports both short and wide-format messages, adapting to different box dimensions without adjustments to the printhead. For lines with dynamic labeling needs, this saves time and avoids manual errors.
Installation example
The system also works with dual-head configurations, allowing operators to print on two sides of a case at once. All of this runs through one controller, with monitoring and inspection handled automatically, leading to fewer steps for the operator and more consistency across every shift.
Reliable case coding isn’t just about making marks on a box either; it's also about keeping production aligned with consumer expectations and keeping product data intact while helping systems run at full speed. That kind of consistency isn't optional for operations built on precision and scale.
Few corrugate printing solutions offer the same level of control, adaptability, and scanning accuracy as the KEYENCE CC-1000 Series Case Coder for operations prioritizing uptime and output clarity.
Contact us today to request a test print or get a quick quote, and see why leading manufacturers trust KEYENCE to code with confidence.
FAQs
What Factors Should I Consider When Choosing Ink for Corrugate Box Printing?
Pigment-based inks work well for barcode readability and durability, resisting bleed even on rough textures like corrugate boxes.
Can the Same Case Coder Be Used Across Multiple Packaging Lines?
Yes. The CC-1000 Series is designed for multi-line use. Its auto-adjusting sensors, long-range printhead, and unified control system allow it to handle different box sizes, speeds, and layouts.
How Do Case Coders Help Meet Retailer Compliance Standards?
Retailers demand scan-grade barcodes and traceable data. The CC-1000 Series’ built-in inspection camera verifies every code in real time, flagging errors before products leave the floor.
