Dimensions

* Download CAD file or product manual for larger image/text and more detail.

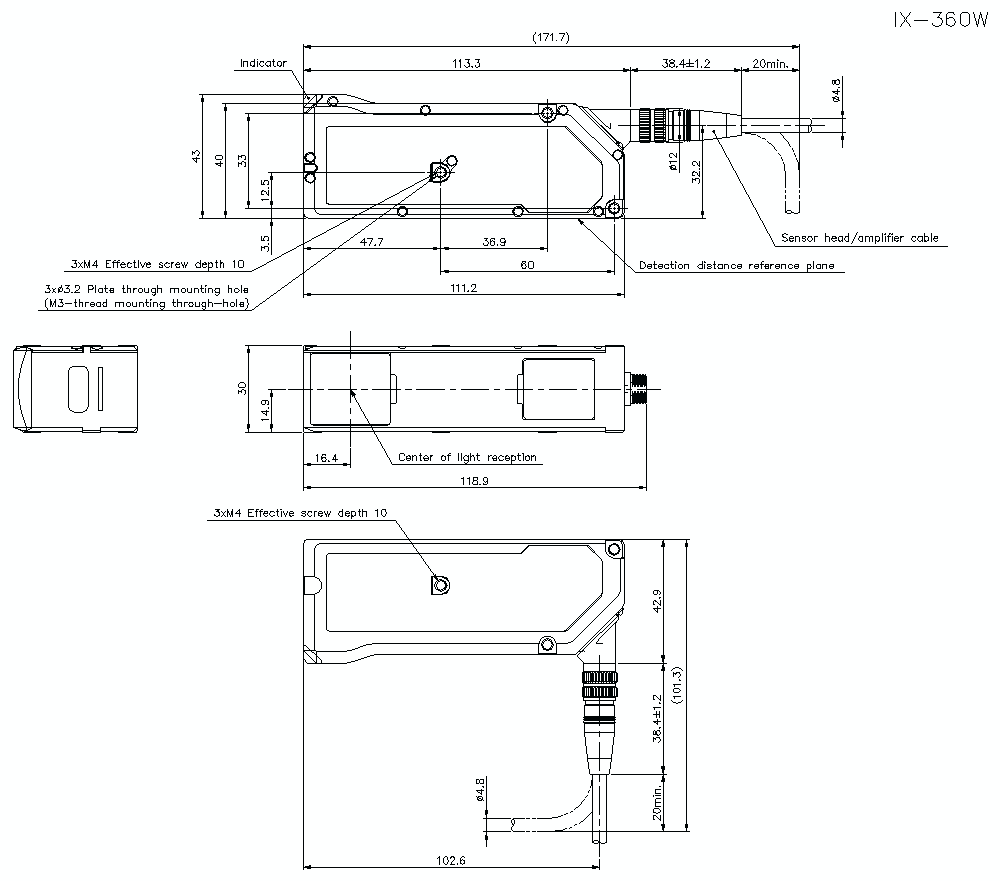

IX-360W

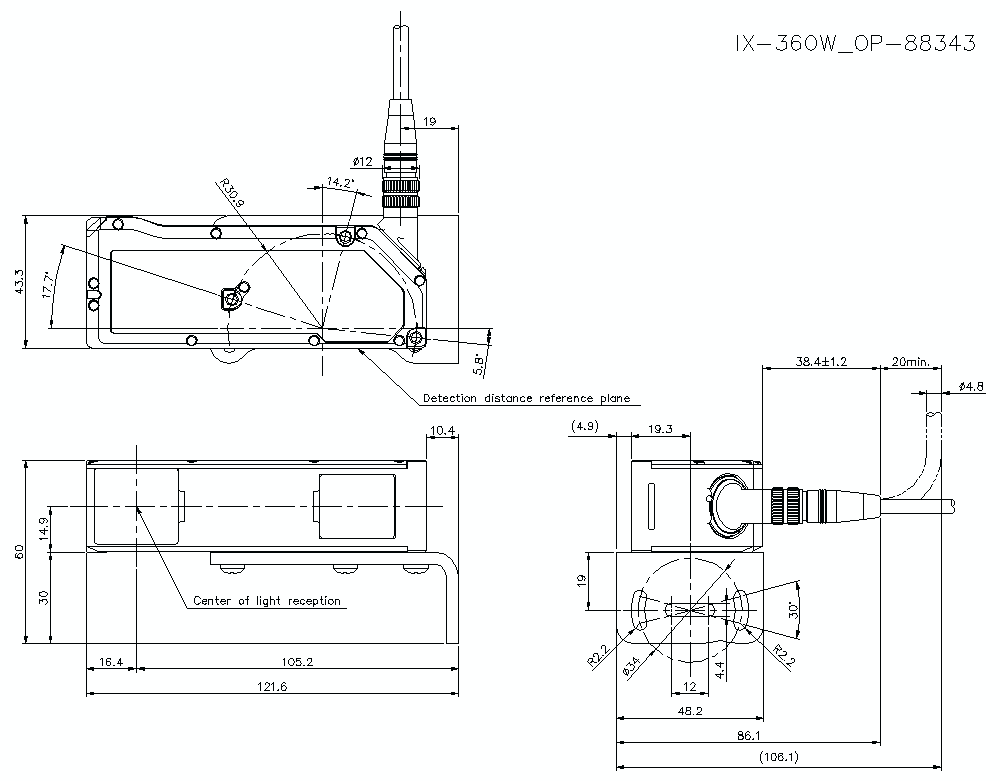

IX-360W/OP-88343

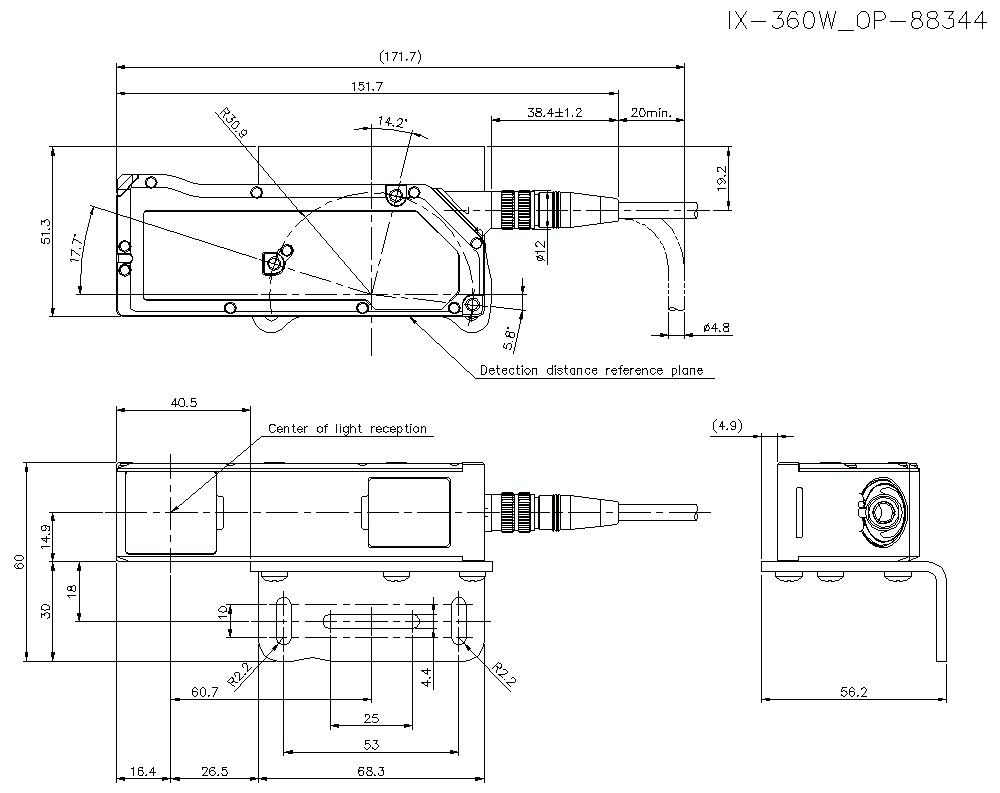

IX-360W/OP-88344

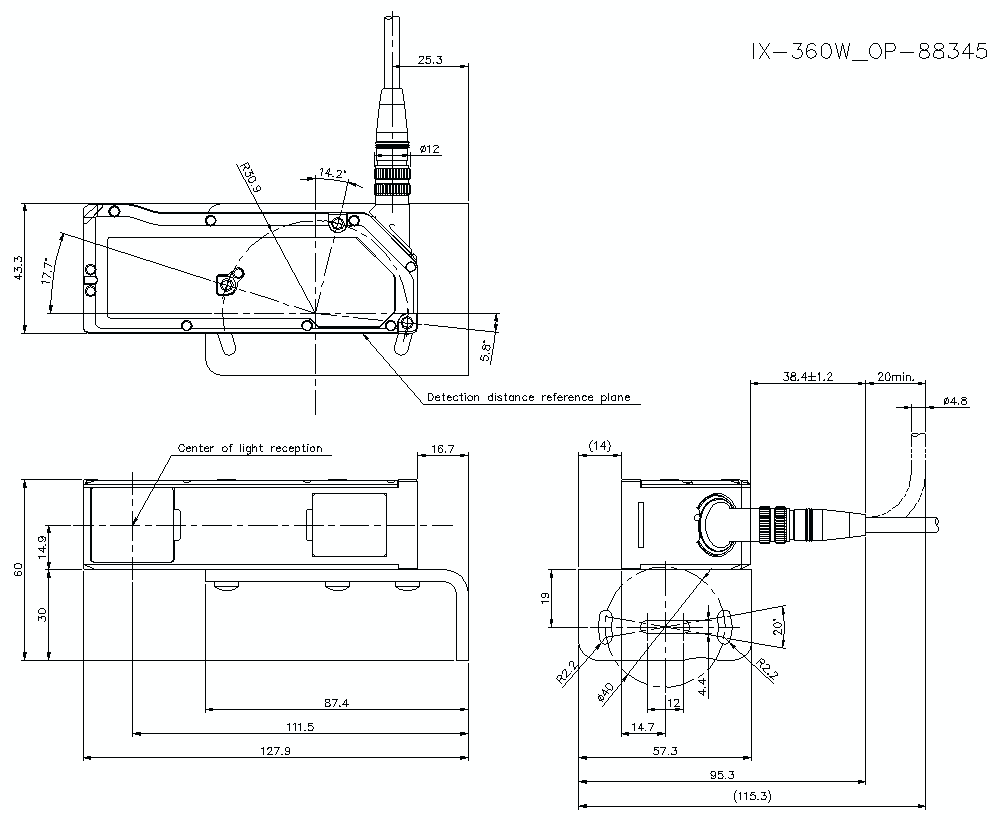

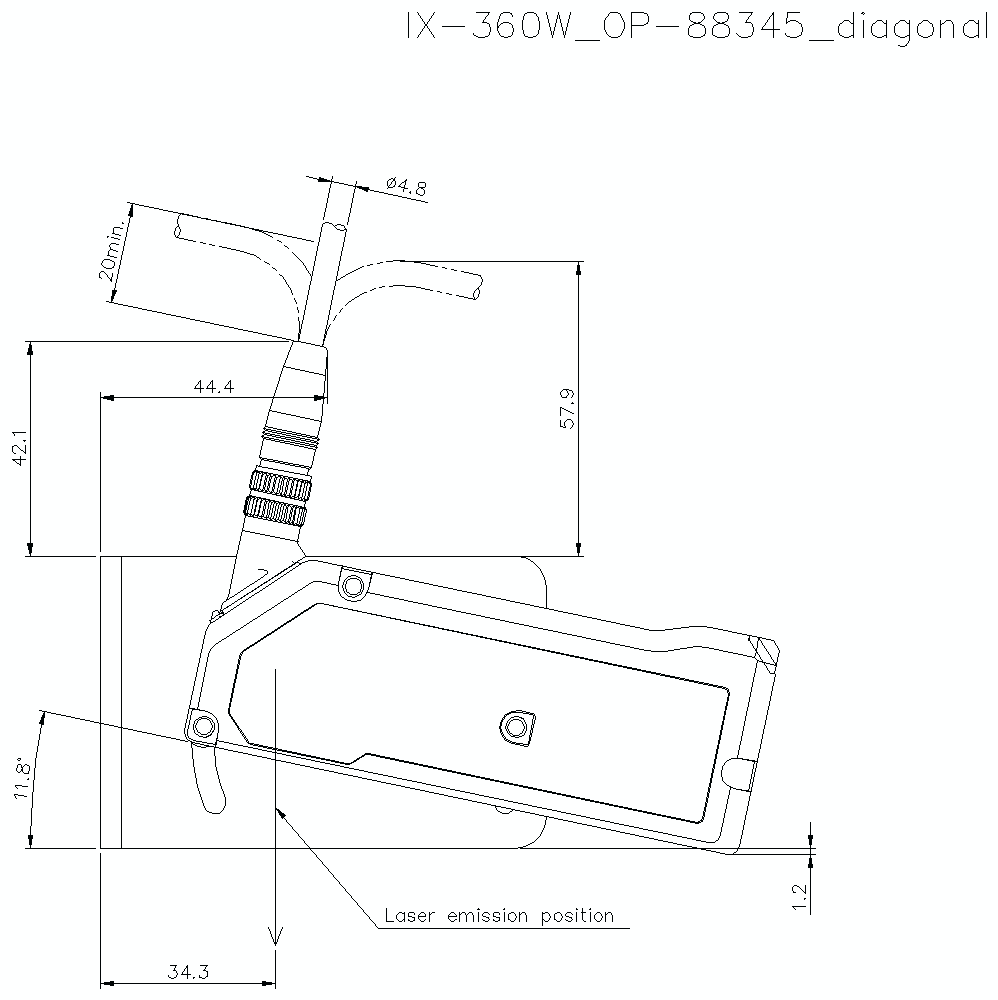

IX-360W/OP-88345

IX-360W/OP-88345DI

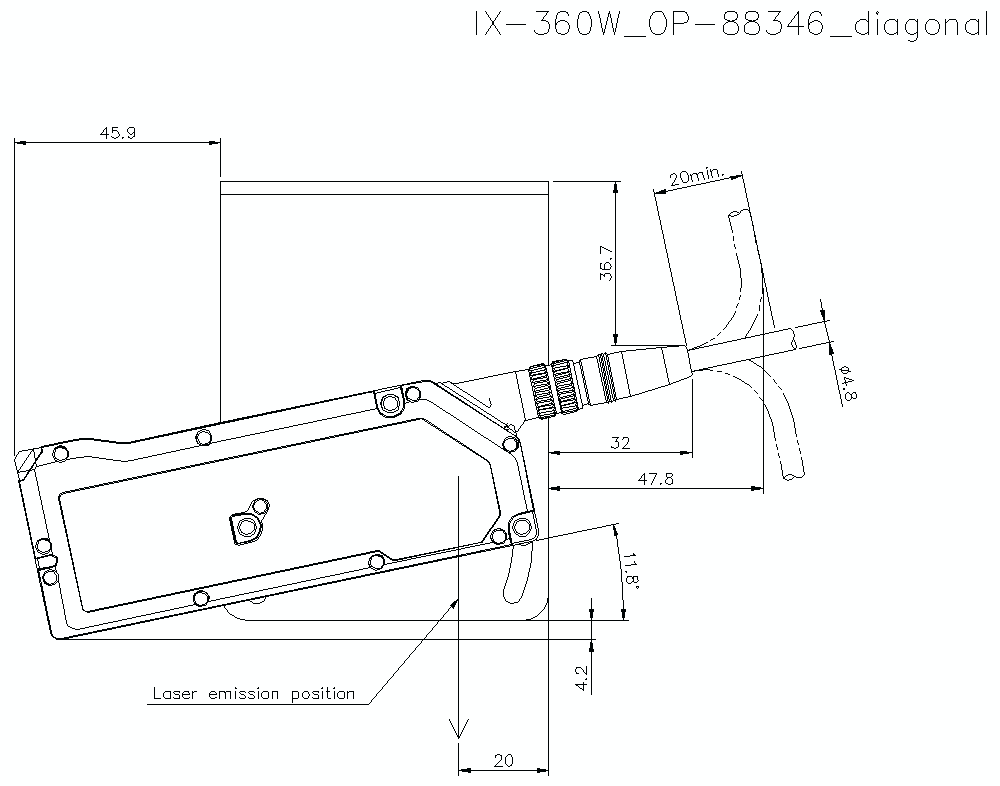

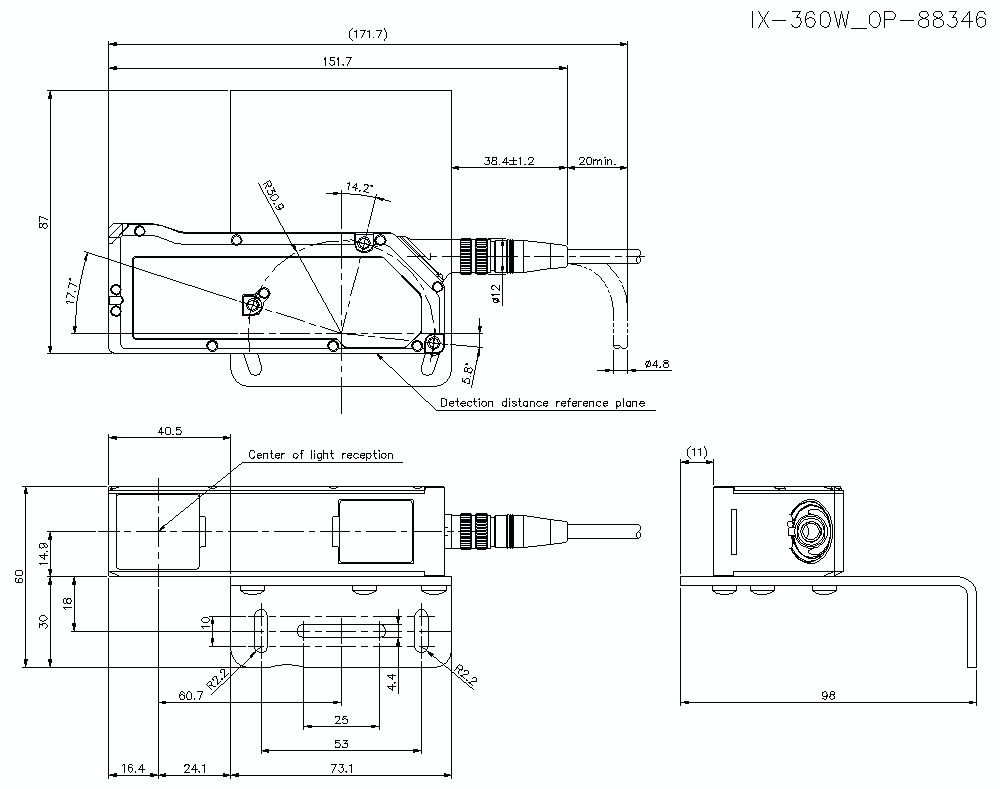

IX-360W/OP-88346

IX-360W/OP-88346DI

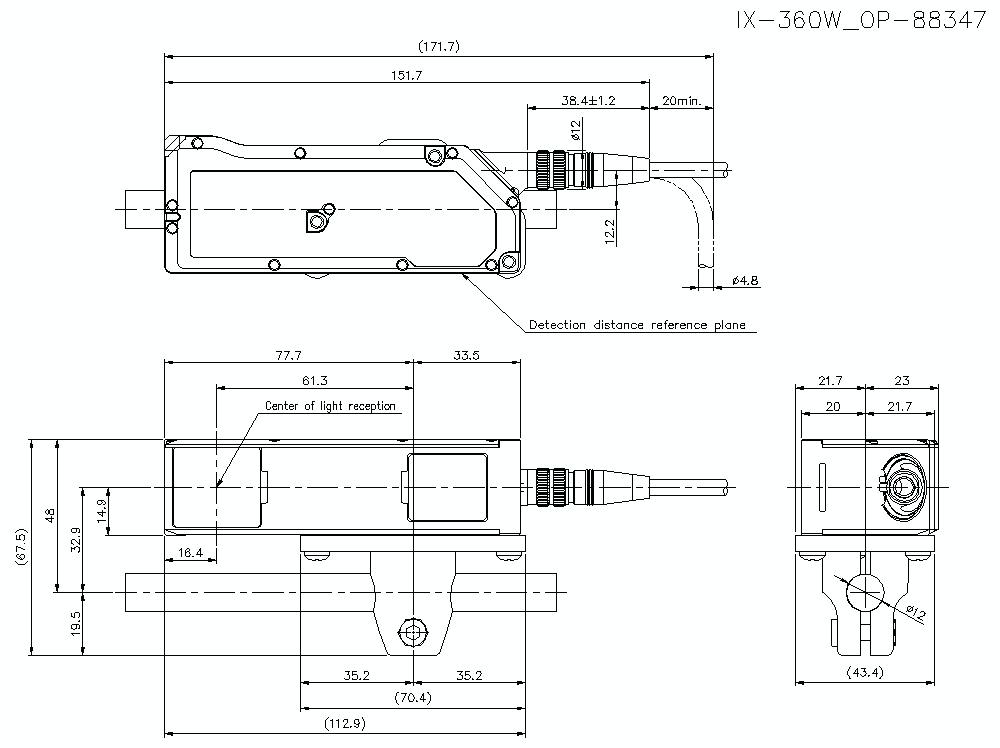

IX-360W/OP-88347
