Dimensions

* Download CAD file or product manual for larger image/text and more detail.

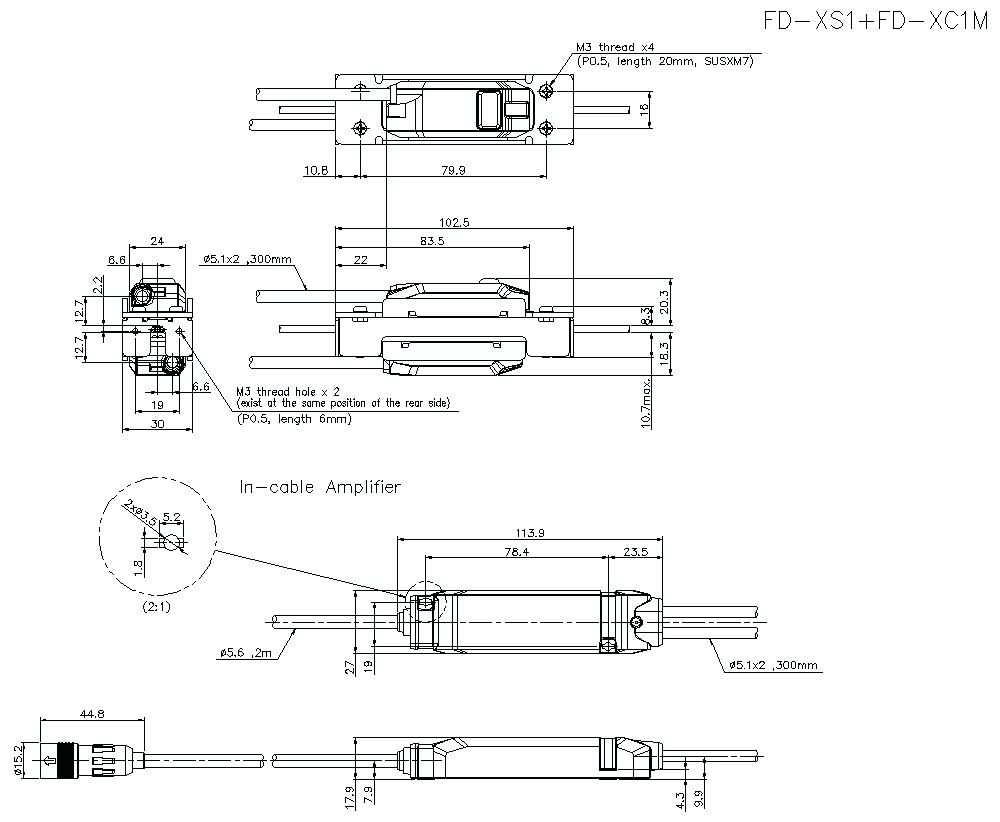

FD-XS1/FD-XC1M Dimension

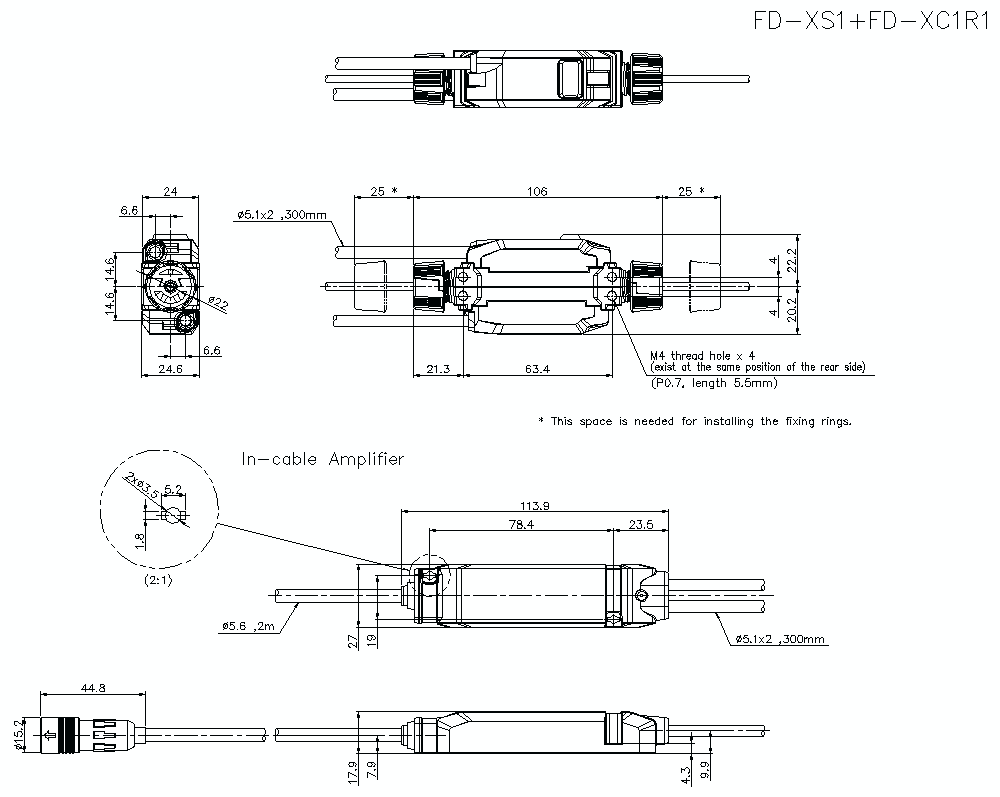

FD-XS1/FD-XC1R1 Dimension

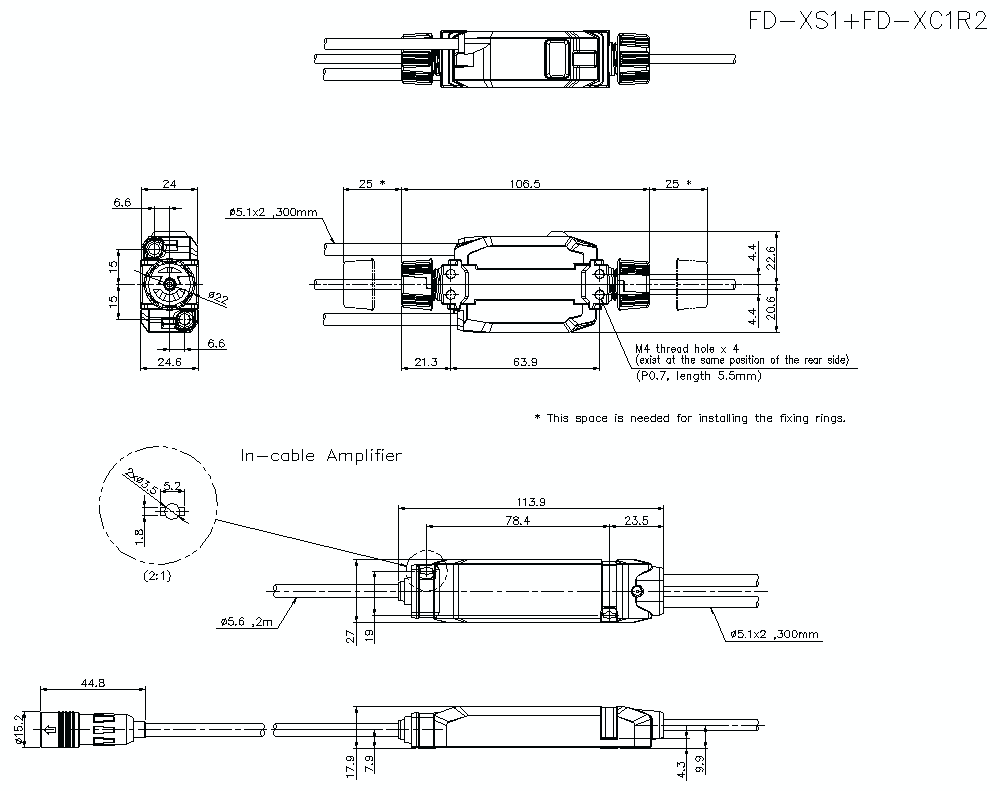

FD-XS1/FD-XC1R2 Dimension

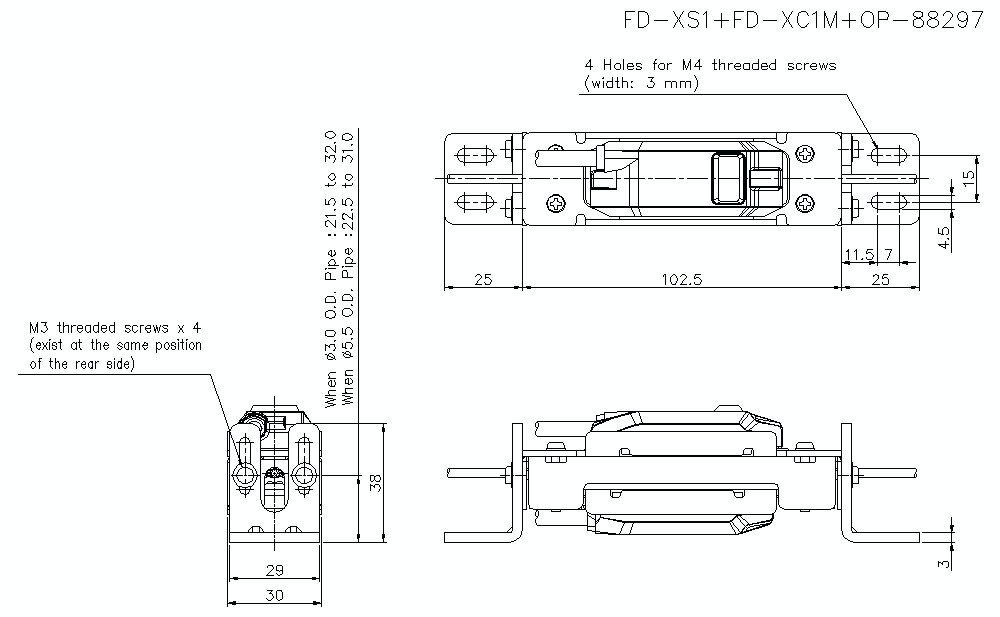

FD-XS1/FD-XC1M/OP-88297 Dimension

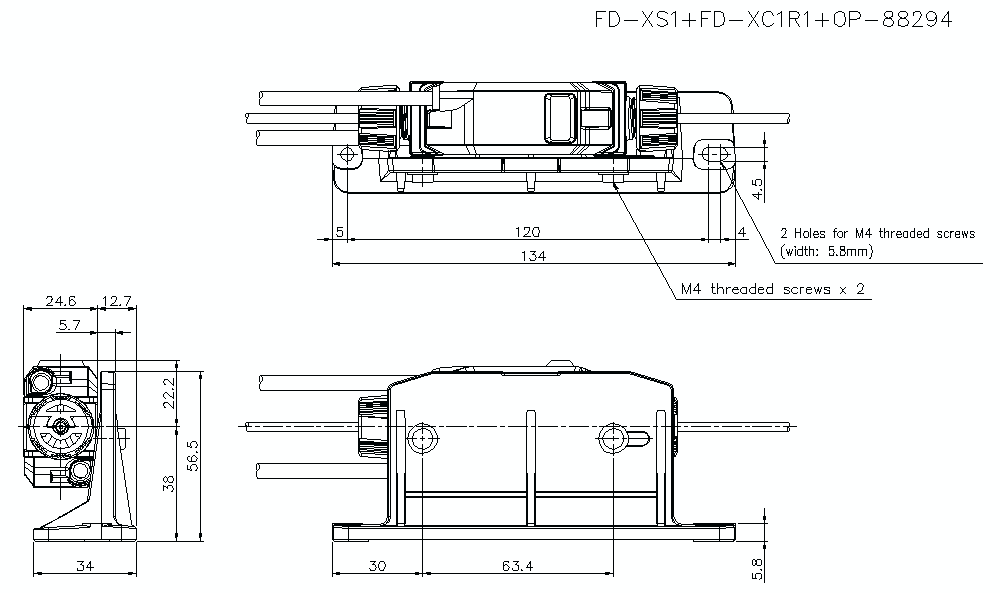

FD-XS1/FD-XC1R1/OP-88294 Dimension

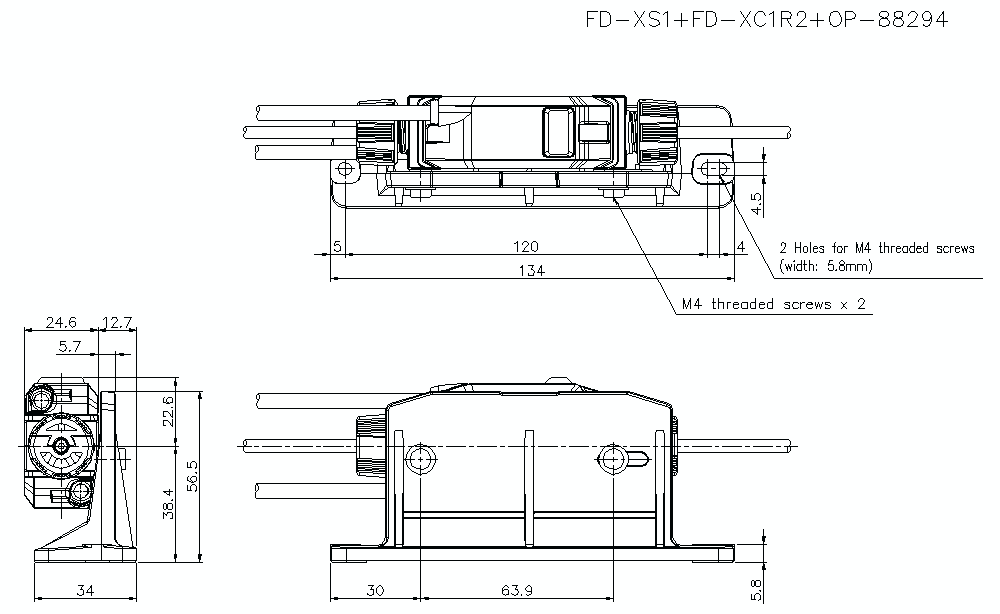

FD-XS1/FD-XC1R2/OP-88294 Dimension
