* Download CAD file or product manual for larger image/text and more detail.

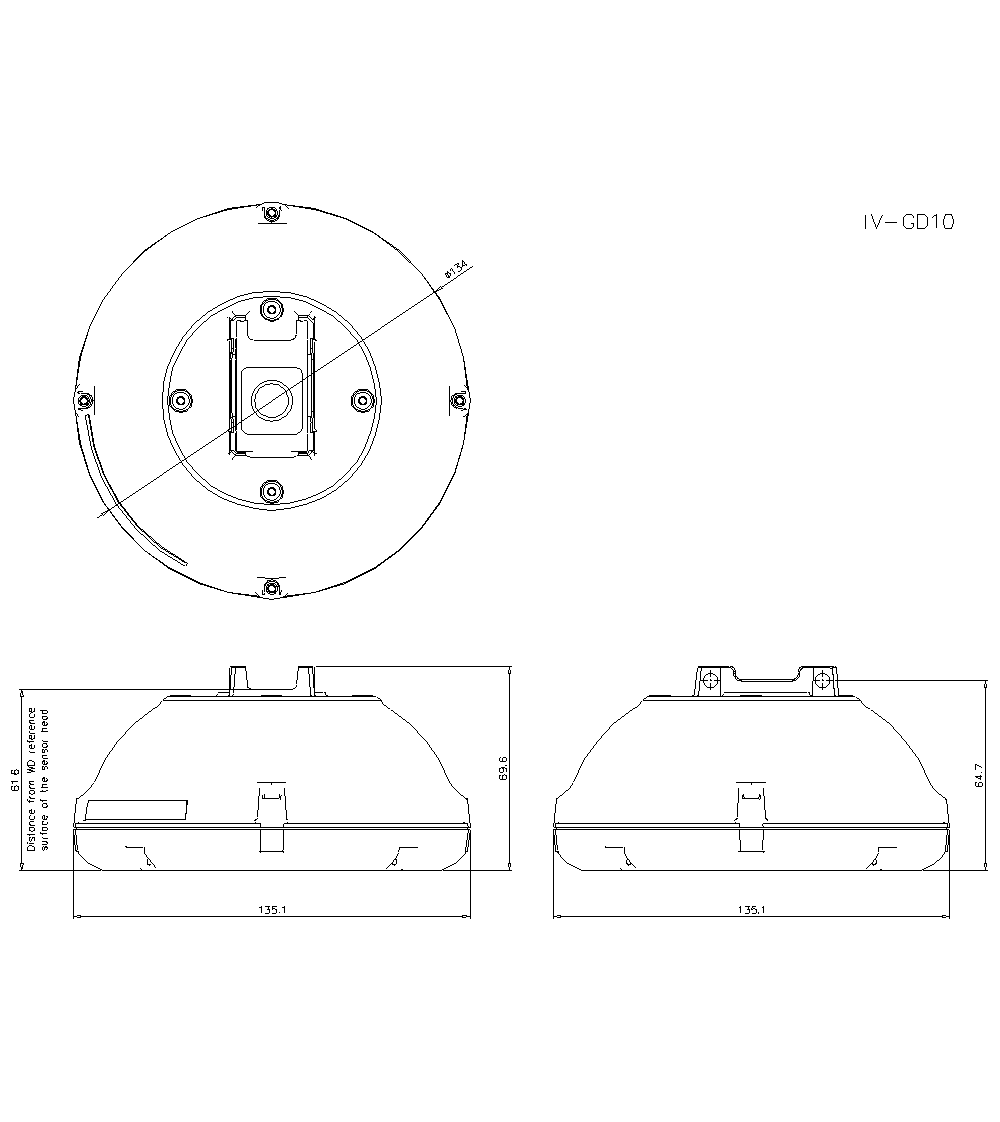

IV-GD10 Dimension

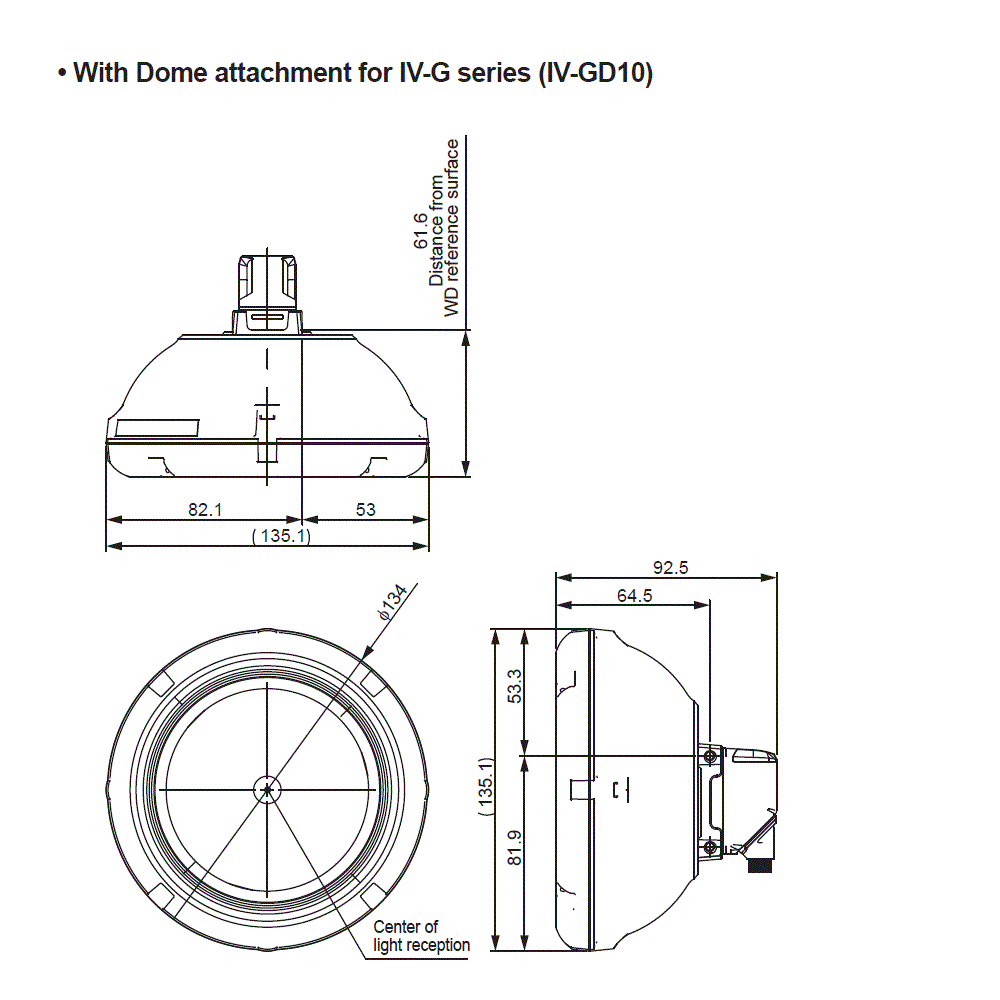

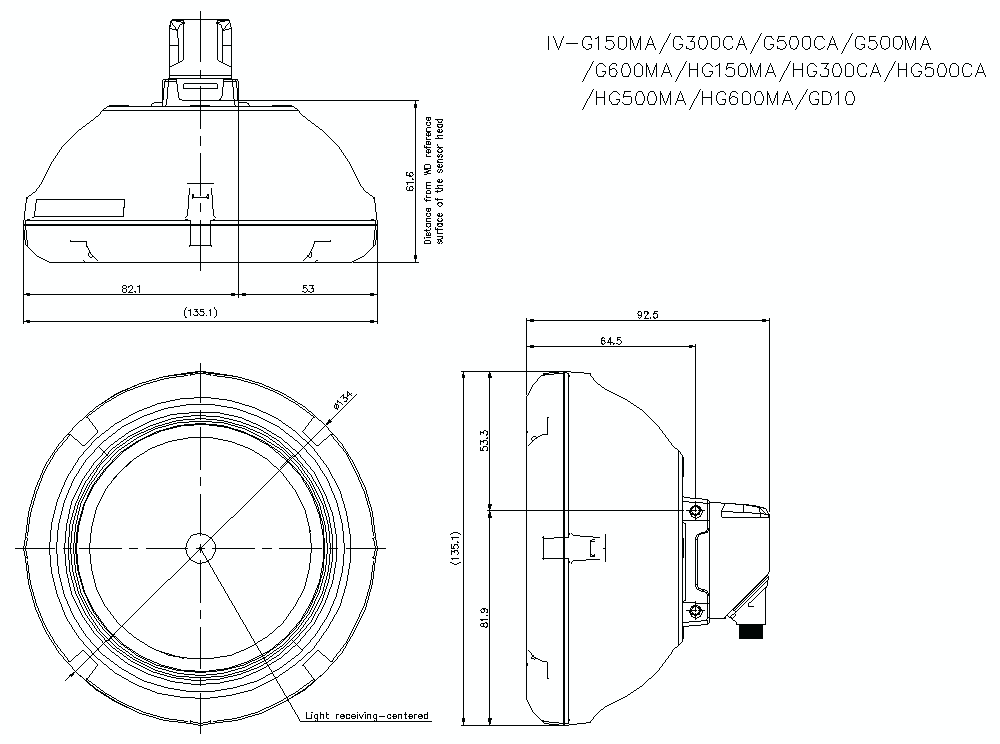

IV-G(CAMERA)/GD10 Dimension


IV-G(CAMERA)/GD10/OP-87908 Dimension

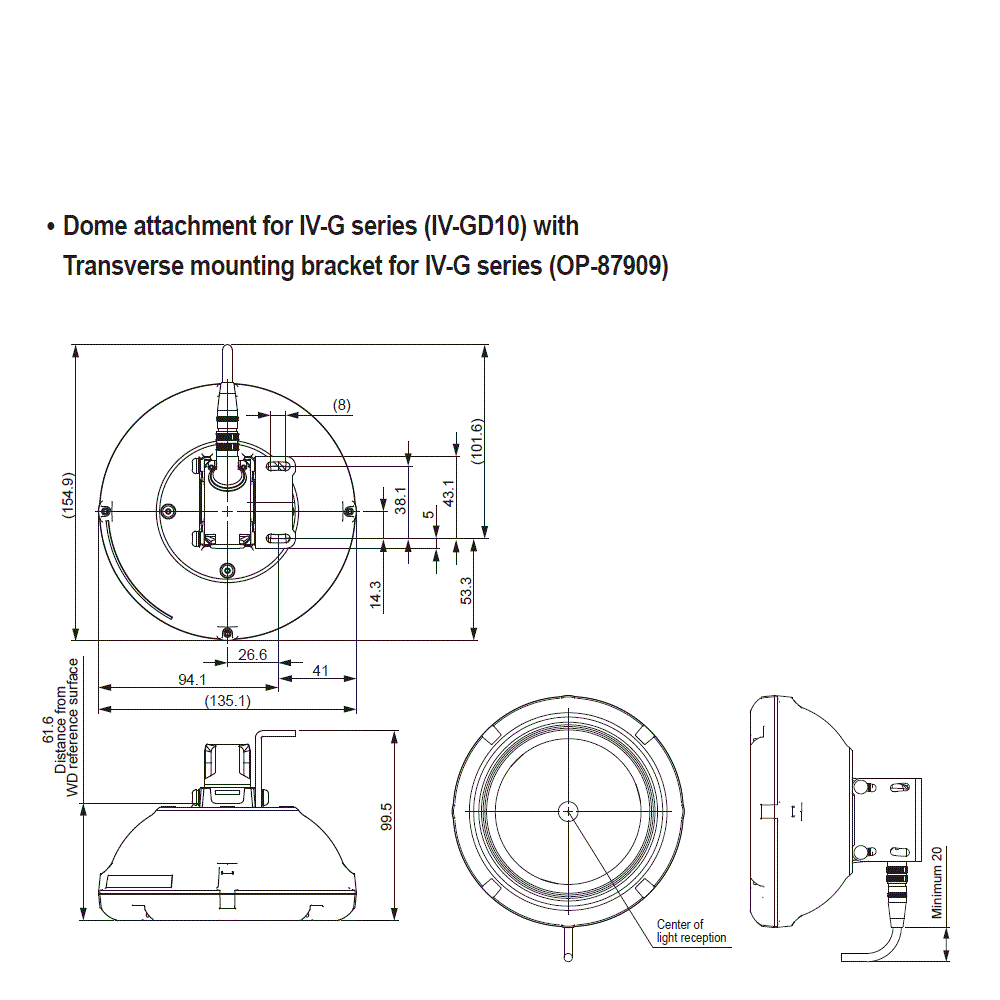

IV-G(CAMERA)/GD10/OP-87909 Dimension

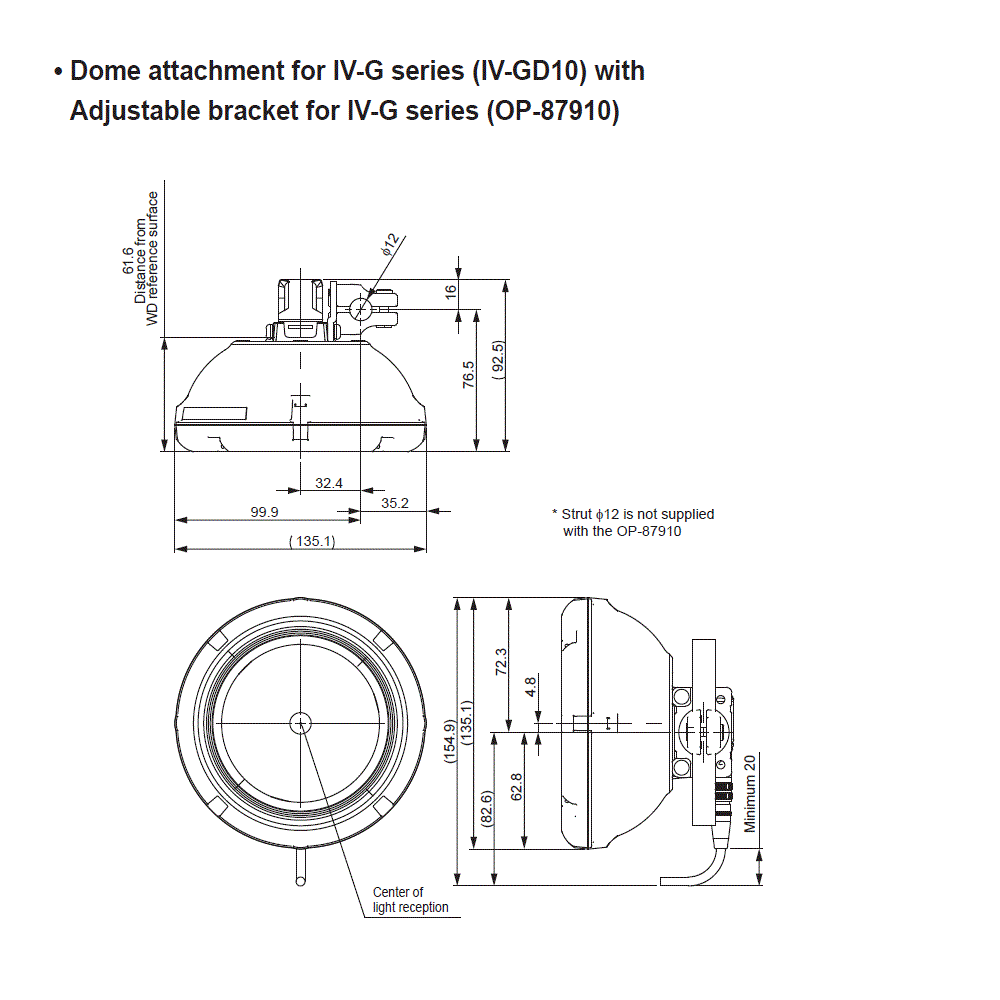

IV-G(CAMERA)/GD10/OP-87910 Dimension

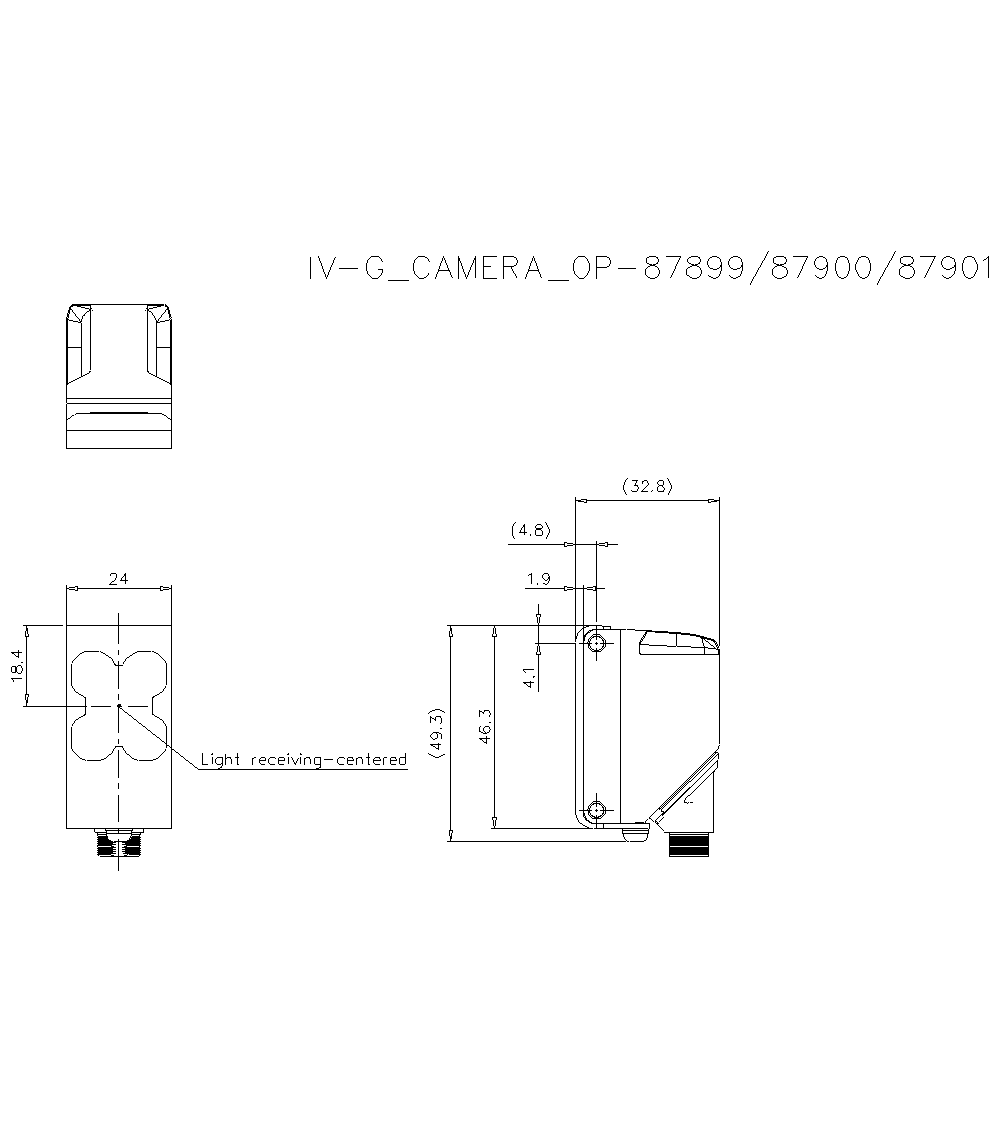

IV-G(CAMERA)/OP-87899/87900/87901 Dimension


IV-G/HG/CAMERA/GD10 Dimension

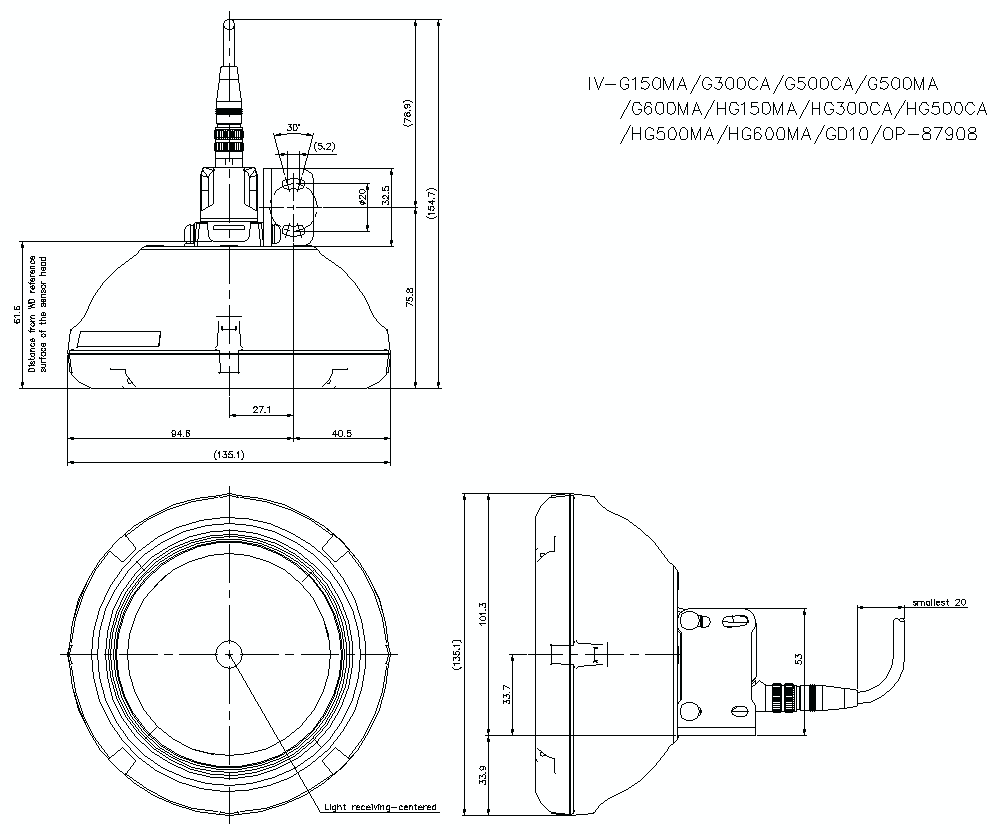

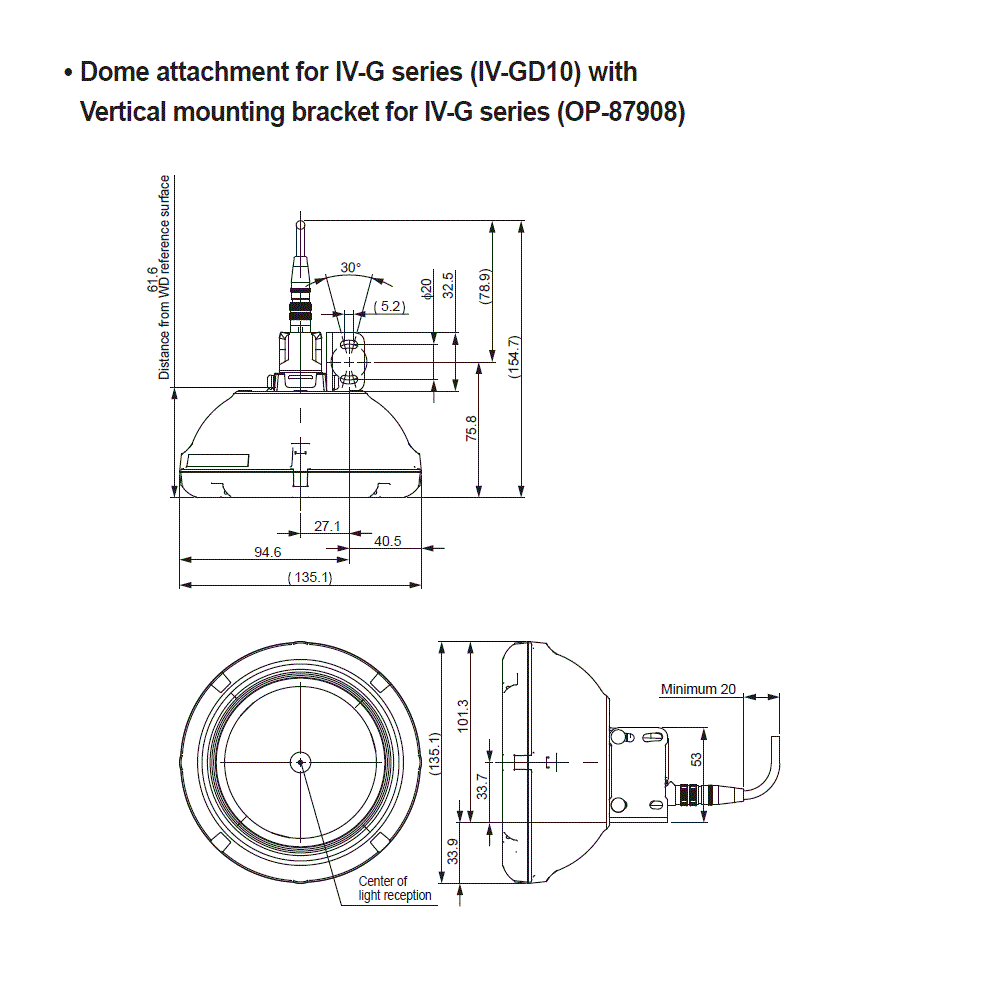

IV-G/HG/CAMERA/GD10/OP87908 Dimension

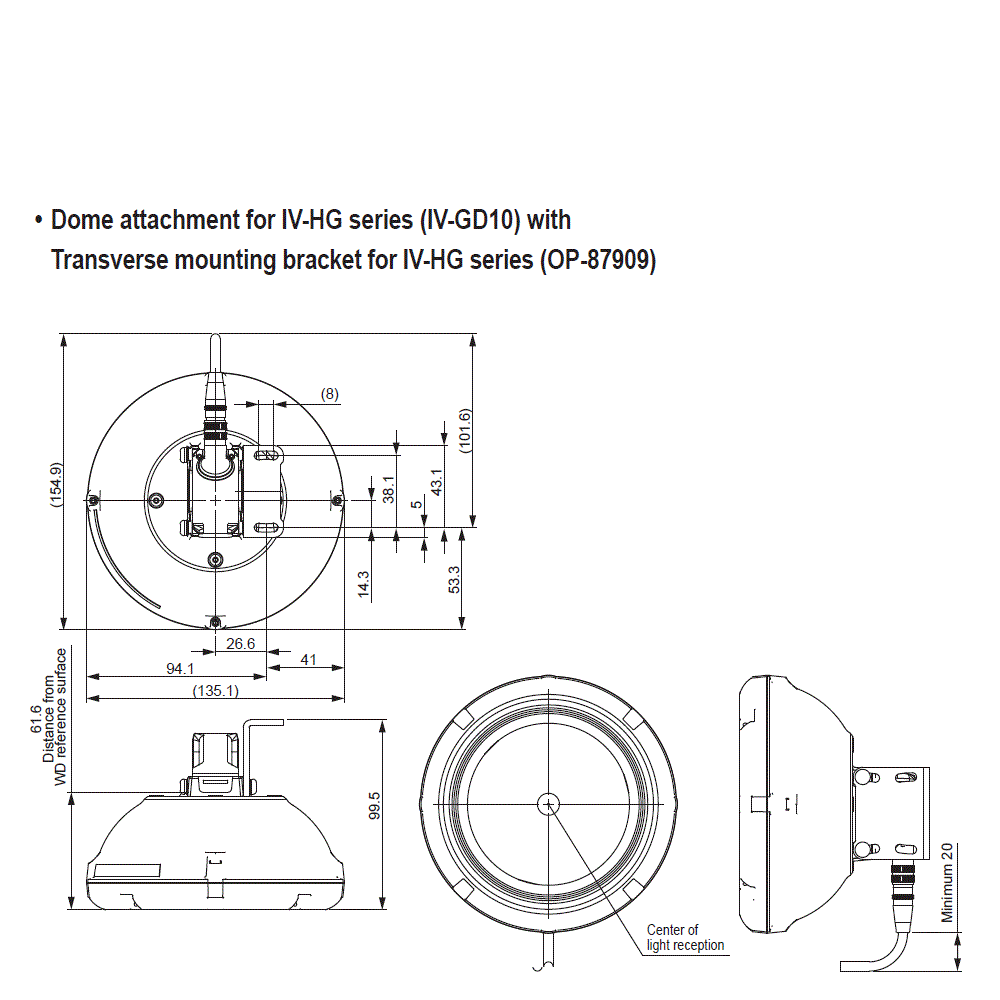

IV-HG(CAMERA)/GD10/OP-87909 Dimension

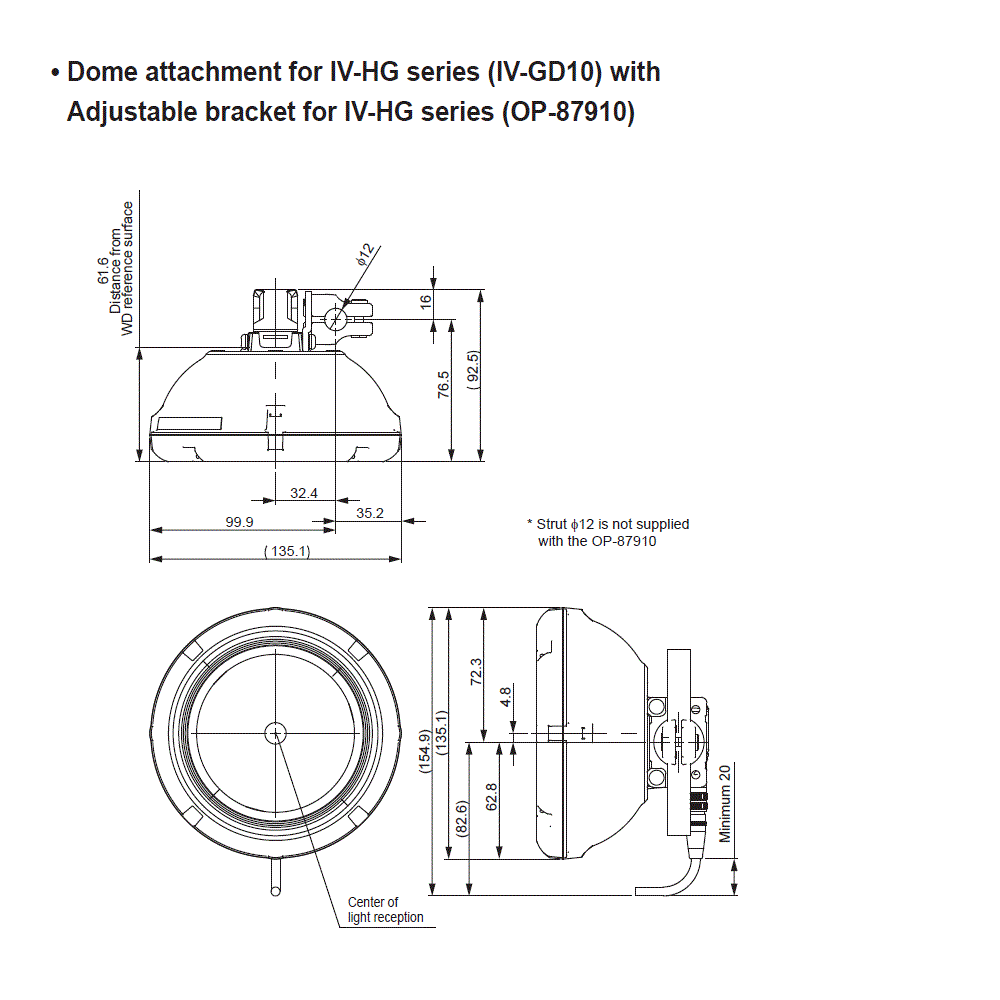

IV-HG(CAMERA)/GD10/OP-87910 Dimension
