* Download CAD file or product manual for larger image/text and more detail.

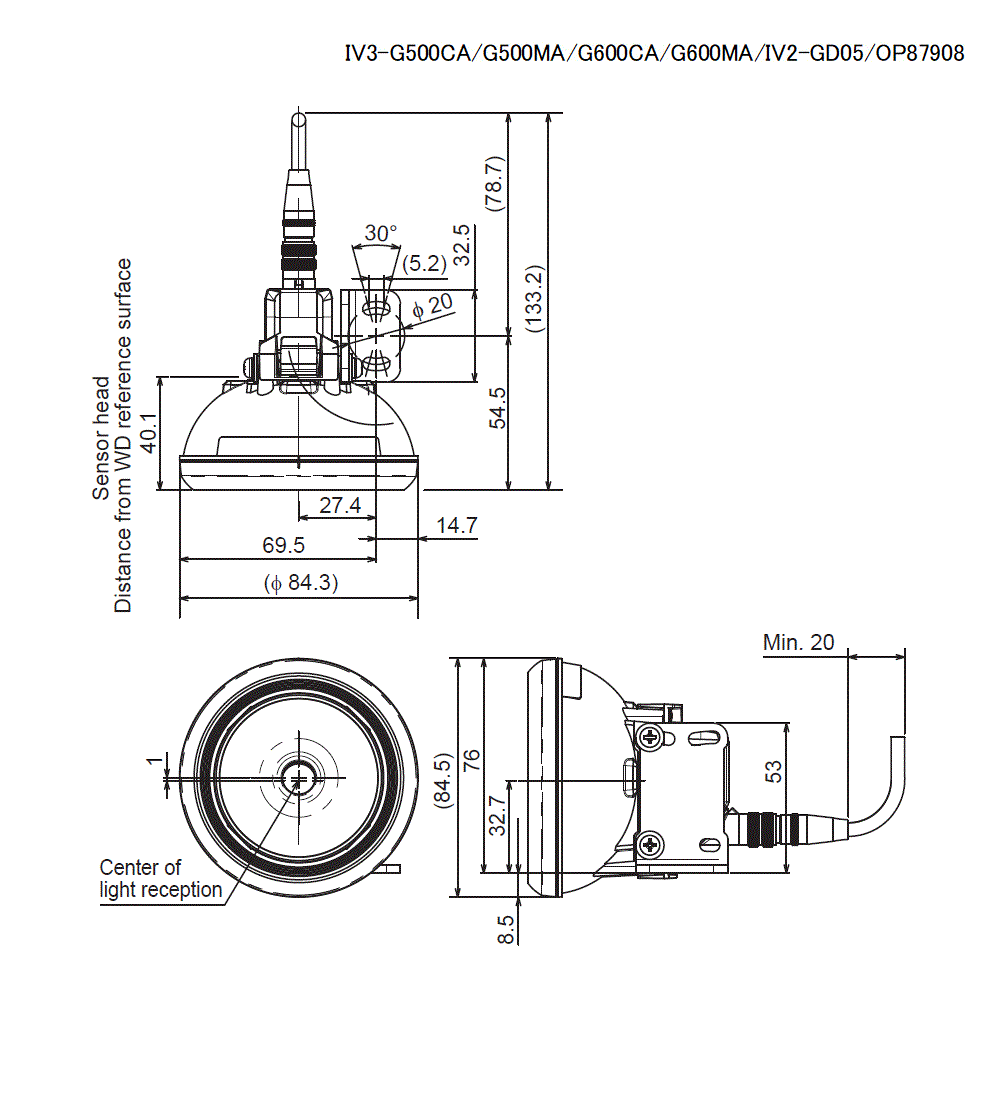

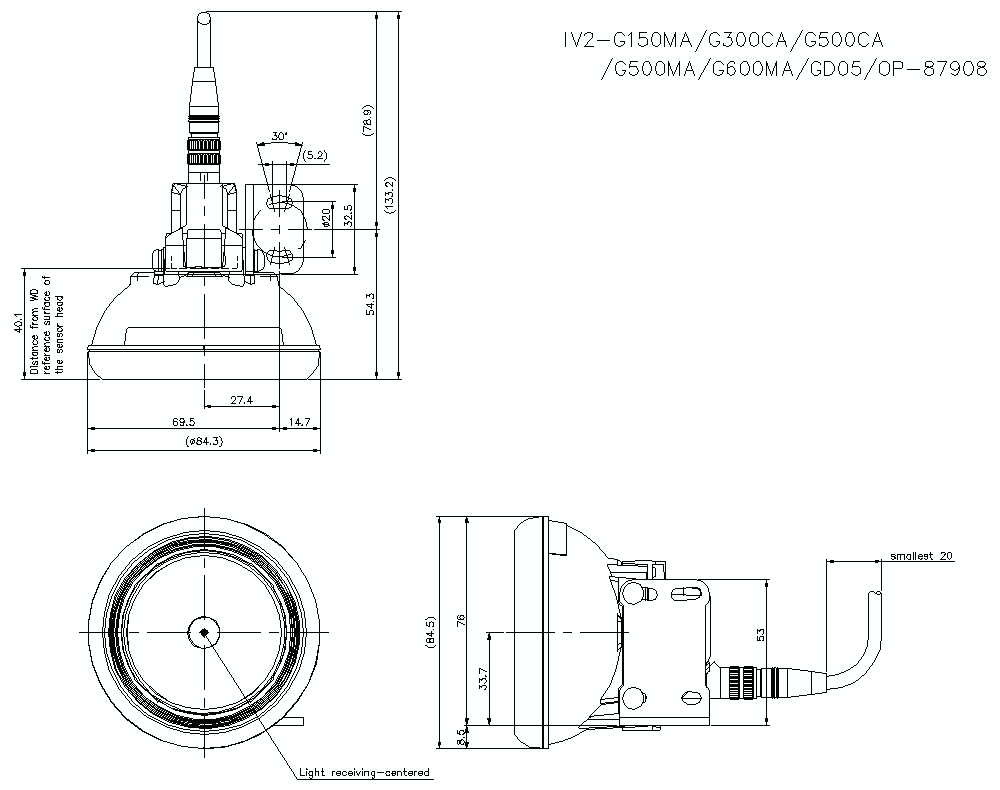

IV2-G150/G300/G500/G600/GD05/OP-87908 Dimension

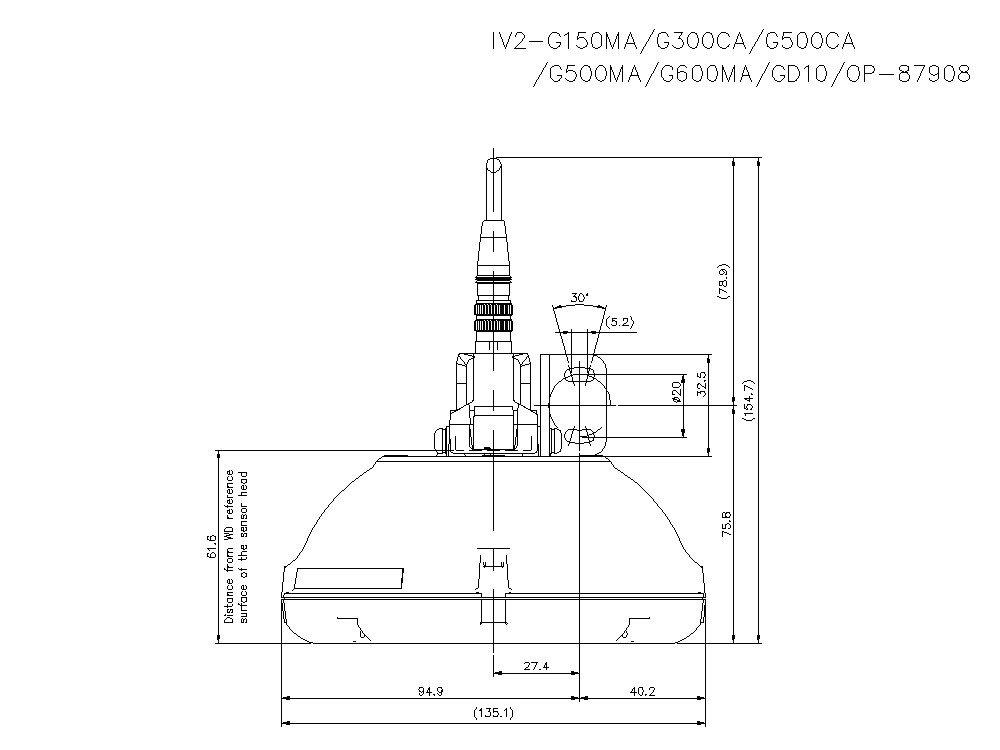

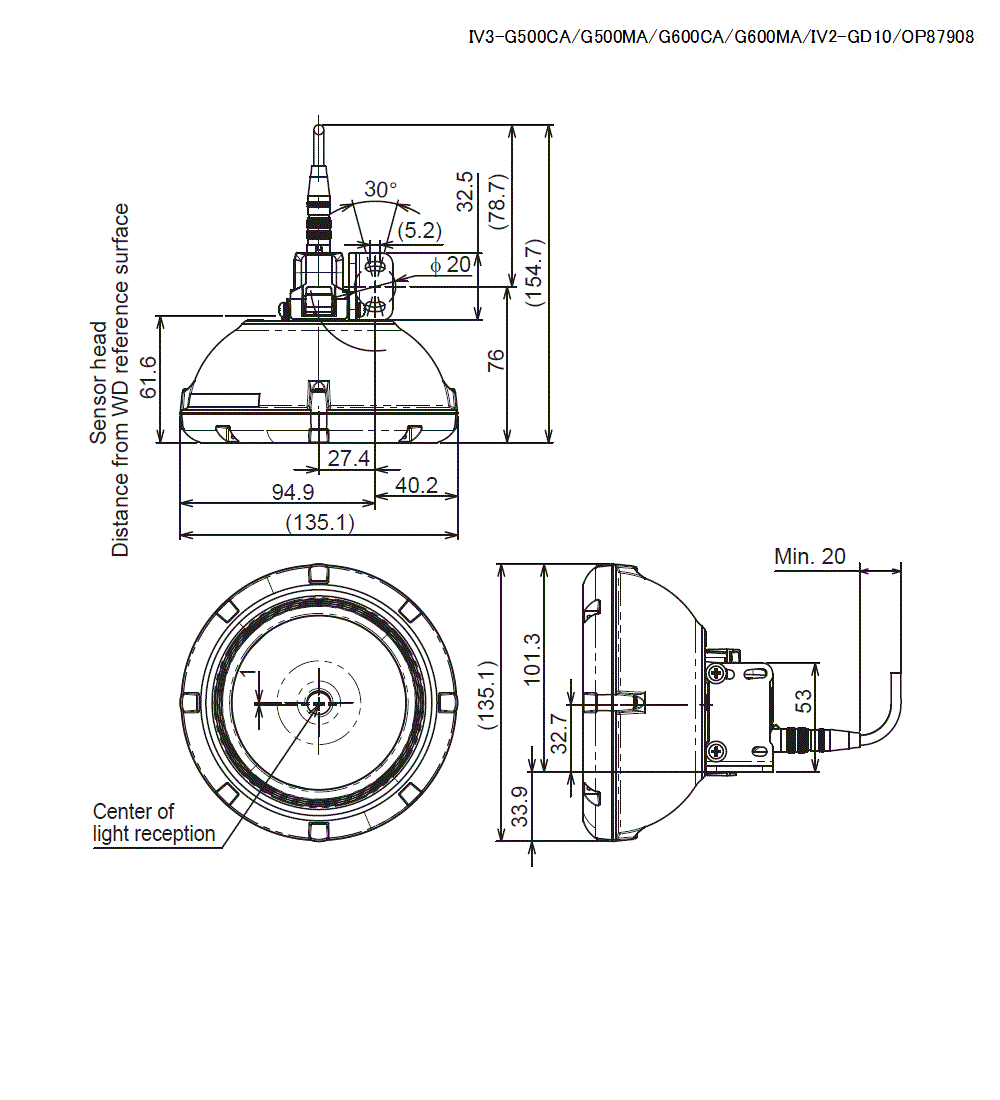

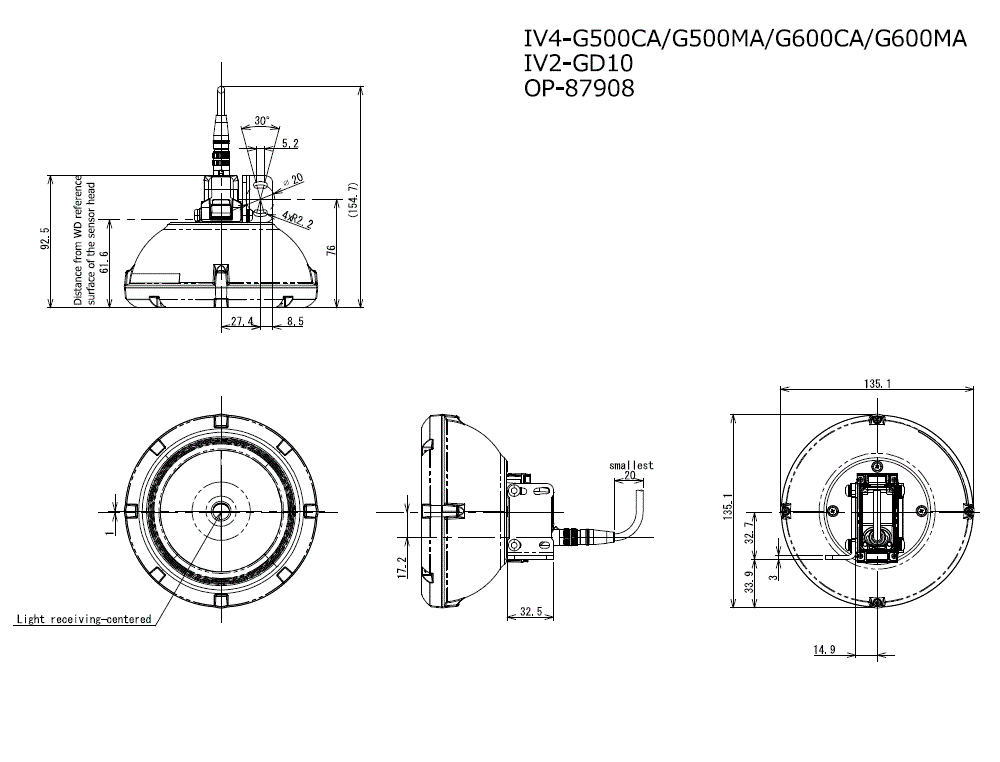

IV2-G150/G300/G500/G600/GD10/OP-87908 Dimension

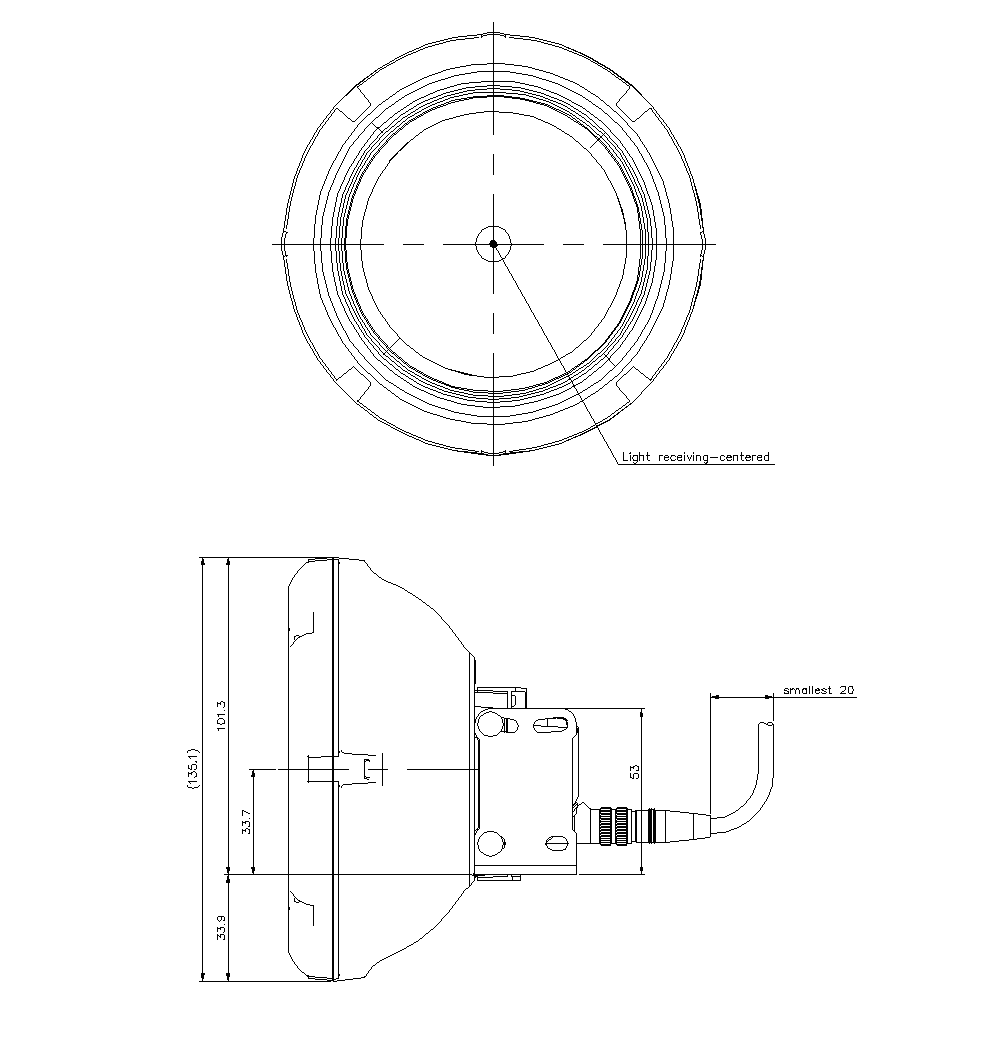

IV2-G150/G300/G500/G600/GD10/OP-87908_02 Dimension

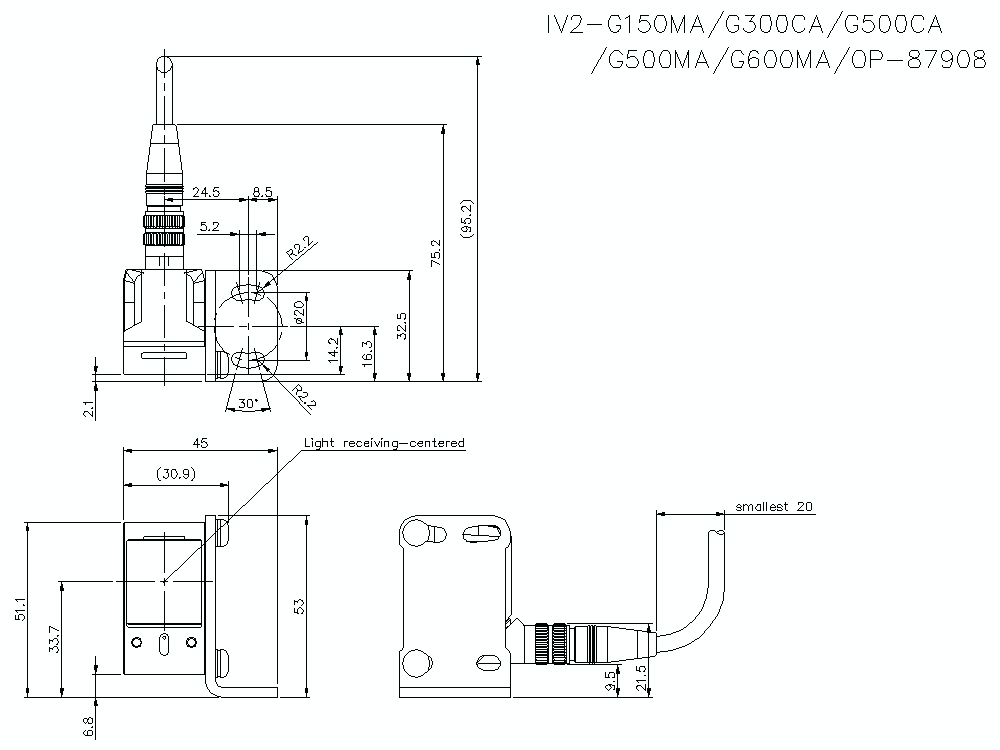

IV2-G150/G300/G500/G600/OP-87908 Dimension


IV-G(CAMERA)/GD05/OP-87908 Dimension


IV-G(CAMERA)/GD10/OP-87908 Dimension


IV-G(CAMERA)/OP-87908 Dimension

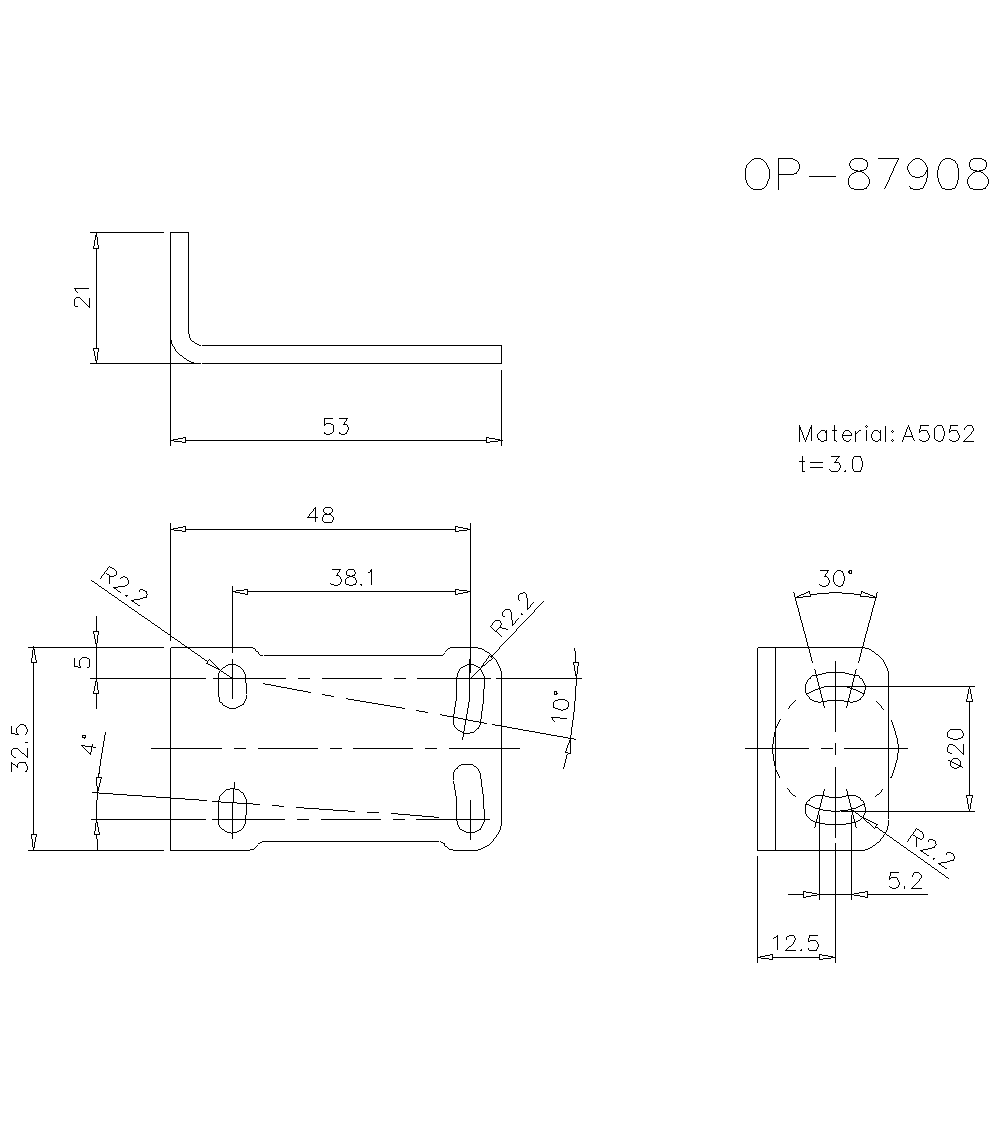

OP-87908 Dimension

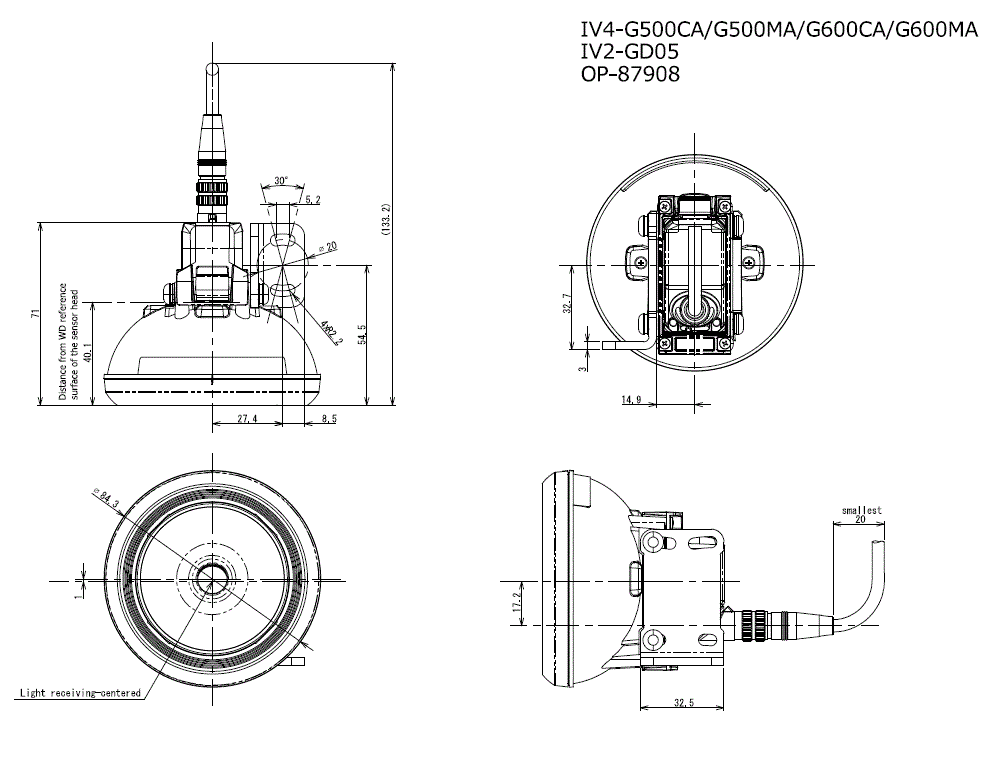

IV-G/HG/CAMERA/GD05/OP87908 Dimension


IV-G/HG/CAMERA/GD10/OP87908 Dimension

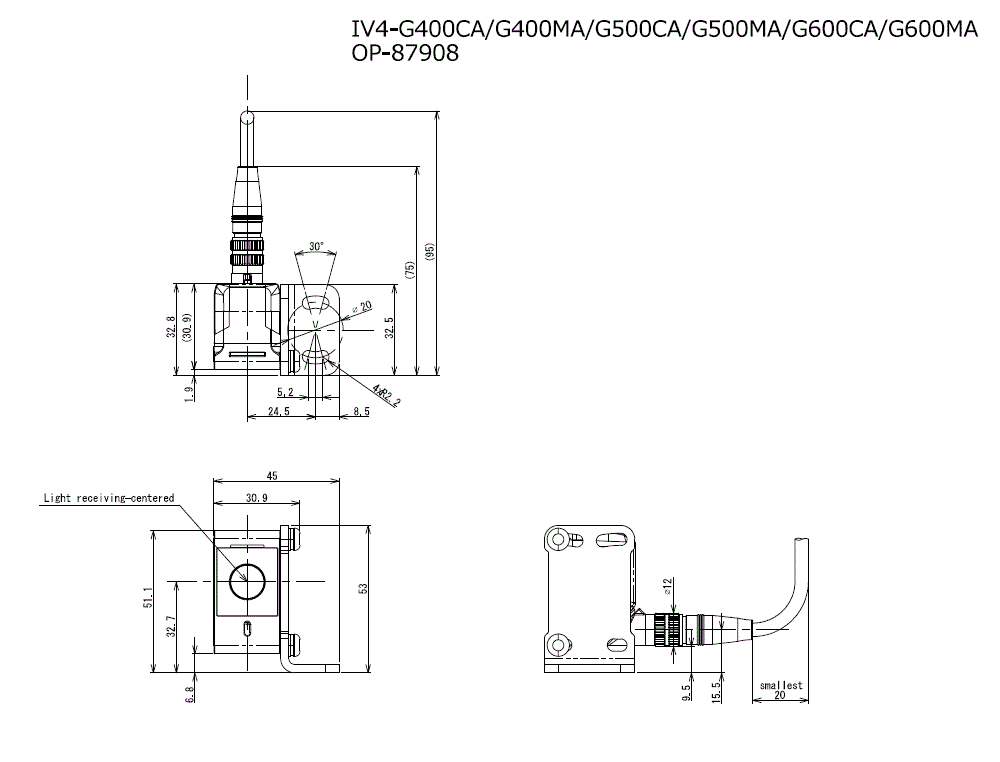

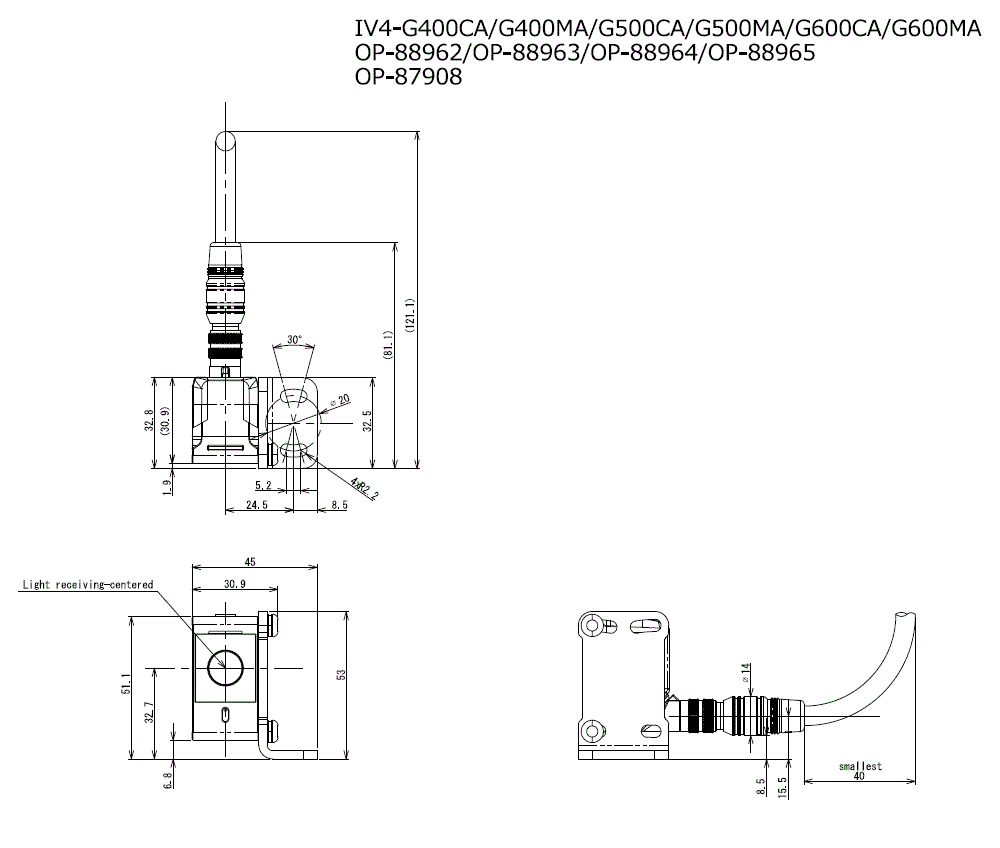

IV-G/HG/CAMERA/OP87908 Dimension
