Preventing Pill Escape in Blister Packaging with Static Control Solutions
Key Takeaways
- Static during forming and filling makes tablets misalign or jump, creating rejects and slowing production.
- Ionizers neutralize charges on film and tablets, stabilizing pill placement and reducing misfeeds.
- Installing bar or compact static eliminators cuts scrap, cleaning time, and changeover delays.

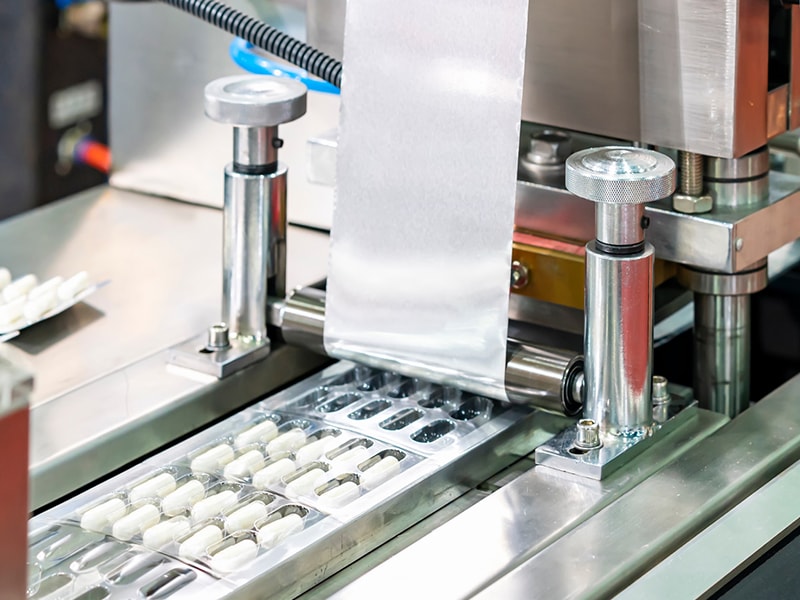

Blister packaging protects tablets and capsules from moisture, contamination, and accidental access. Each cavity is designed to keep a dose intact until use, but that protection begins on the production line. In pill blister packaging, static in blister packaging during forming and filling makes tablets misalign or jump, creating rejects and slowing production.
How Static Electricity Affects Blister Packaging Integrity
Static charge builds at multiple stages of blister packaging. Films pick it up during forming, while tablets gain charge in feeder bowls and chutes. Once charged, pills may cling to film or jump from cavities, throwing off placement before sealing. What should be a routine step instead creates rejects and extra costs, cutting into the reliability pill blister packaging is meant to provide.
The Role of Electrostatic Forces in Pill Packaging
Electrostatic forces make tablets behave unpredictably. Instead of dropping into place, a pill can cling to the film or bounce clear of the cavity. Lightweight capsules are the most prone to this. Missed fills or tilted tablets create defects that may slip past inspection, putting both product quality and patient safety at risk.
How Static Interference Leads to Packaging Failures
One misaligned pill rarely seems like much, but on a high-speed line, it snowballs into thousands of rejects and hours of rework. Cavities go unfilled, tablets shift under the foil, and seals fail. On a high-speed line, small errors multiply into thousands of rejects.

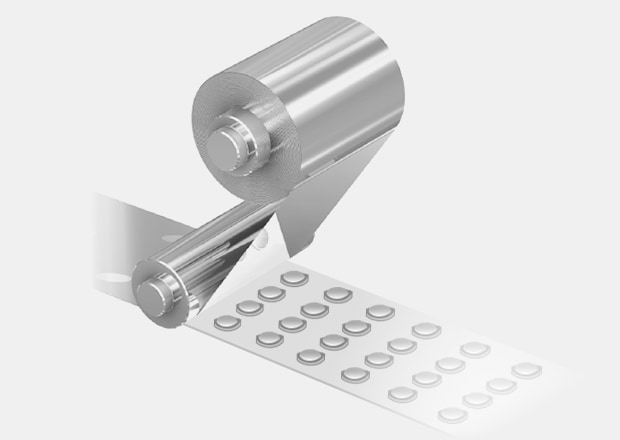

Conventional countermeasures: Image processing
- Since problems are found after they occur, it is impossible to prevent defective products from being produced.
- The operating ratio decreases.
Using Ionizers to Prevent Static Buildup in Blister Packaging
The most effective way to eliminate static is with ionizers. A static electricity eliminator releases positive and negative ions that neutralize charges on the film and tablets. Bar-type ionizers installed over the web or compact units near feeder bowls maintain neutral conditions so pills drop consistently into cavities. In modern systems, ion balance adjusts automatically, preventing the voltage swings that once plagued blister lines. For operators, this means stability and predictability even as production speeds increase.
Key Process Adjustments for Improved Packaging Efficiency
Static eliminators fit into blister lines without major redesign. Bars can sit a few inches above the web, discharging the film as it moves forward, while compact units target the bowls where charge builds on tablets. Newer ionizers don’t need constant tweaking as they sense shifts in voltage and adjust automatically. For operators, that means fewer stalls, less scrap, and a packaging run that holds steady even as speeds climb with a static eliminator for blister lines in place.
Real-World Examples of Static Control Solutions in Action
Pharma lines using ionizers report immediate reductions in rejects. Misfeeds and pill jumps drop to trace levels, while cleaning demands fall as dust no longer clings to charged films. One manufacturer saw scrap costs fall from hundreds of dollars per week to negligible levels once ionizers were added. Operators also report fewer reworks, shorter changeovers, and more confidence in line performance.

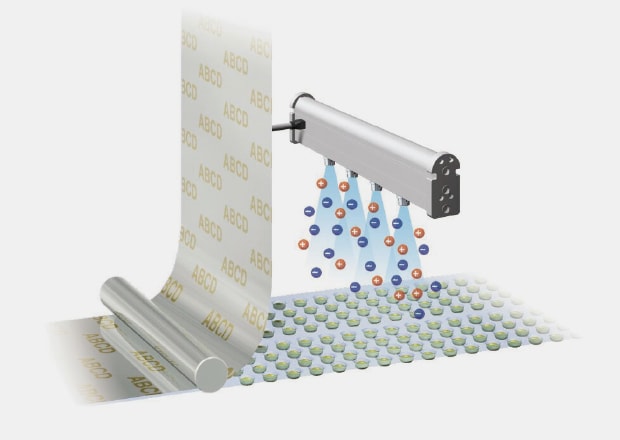

Countermeasures with static eliminators (ionizers):
Ions eliminate static electricity, which helps prevent foreign particles from clinging and avoids defective packaging. The operating ratio can be improved.
Reduced disposal cost due to defective packaging:
Disposal cost of NG products: $25/day → $500/month
In addition, serious complaints affect the level of trust in the company, so there are considerable effects that cannot be calculated.
How KEYENCE’s Static Eliminators Enhanced Packaging Operations
KEYENCE designs ionizers that work on blister packaging lines. The SJ-Q Series delivers rapid static elimination with ±3 V ion balance and a supersonic airflow structure that neutralizes charges in under 0.1 seconds, even at close range. Its probes resist dirt and wear, keeping maintenance low.
For wider webs, the SJ-E Series pushes ions across the whole sheet, neutralizing the strong charges created during forming and transfer. It keeps tablets dropping cleanly into place and cuts down on rejects. With static under control, blister packaging does what it was designed to do: deliver accurate doses with a clean seal and product that holds up through distribution.
Protect your blister packaging lines from static—reach out to KEYENCE for advanced control systems.
FAQs
Why Do Pills Escape from Blister Packaging During Production?
Electrostatic charges build on films and tablets, causing pills to cling, bounce, or misalign during filling. Without static control, those charges disrupt the process.
How Can Static Control Solutions Help in Preventing Pills from Escaping During Blister Packaging?
Ionizers eliminate static so pills drop cleanly into cavities. With balanced ion output, filling stays consistent, rejects decrease, and downstream inspection is simplified.
What Other Factors Can Contribute to Pills Escaping During Blister Packaging?
Humidity, temperature swings, and tablet coatings can increase instability, adding to the risks created by static.
