New LED Technology Replaces the Laser Scan Micrometer

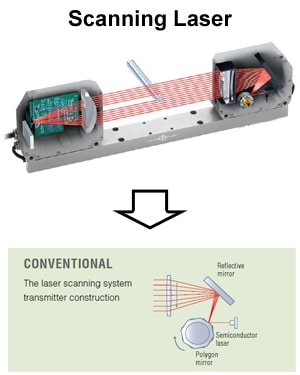

Old Principle

A semiconductor laser is fired at a rotating polygon mirror and scans through the measurement range. Measured values are calculated by measuring how long the laser is obstructed by the target.

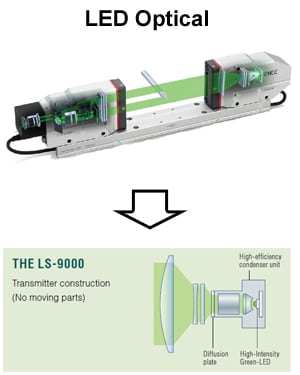

New Principle

Green-LED light is emitted as a uniform collimated beam. The CMOS sensor accurately detects the position of the edge between light and dark edges of the received light and determines the measured values.

LS9 Comparison Left LS9 Comparison Right
Advantage: The new LED principle leads to longer up-time and low cost-of-ownership without sacrificing performance.
