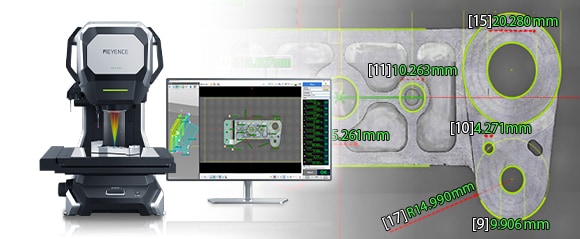

Measurement Microscope

IM-X1000 Series High-precision optical metrology system
for dimensional part inspection

  • Measure Up to 5,000 Dimensions at the Push of a Button
  • 0.7 µm Accuracy and 0.1 µm Repeatability
  • Import Drawings to Automatically Create Programs
  • Automated and Optimized Focus and Lighting

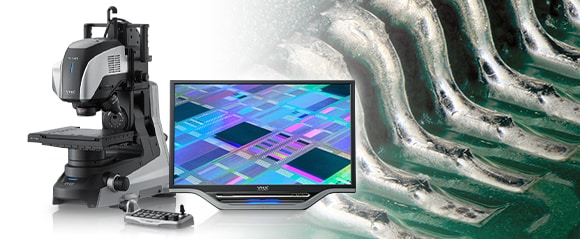

VHX-X1 Series High-resolution optical microscope
for repeatable imaging and analysis

  • Brightfield, Darkfield, Transmitted Lighting Capabilities
  • 20× Larger Depth-of Field with Multi Angle Observation

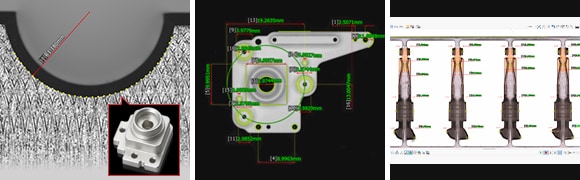

  • Advanced 2D/3D Measurements
  • Automatic Magnification Change from 5x-6000x
