GD&T Measurement System

GD&T Measurement System
- 360-degree, non-contact measurement
- Easy-to-use, place-and-measure operation
- Guaranteed measurement accuracy
- Compare directly to CAD
- Quickly measure flatness, concentricity, etc.
- Download Catalog

Full 360-degree measurement

Scan an object from any angle to generate a complete 360-degree image with just the click of a button. Once an object has been scanned, numerous measurements and comparative analytics can be done.
Guaranteed measurement accuracy

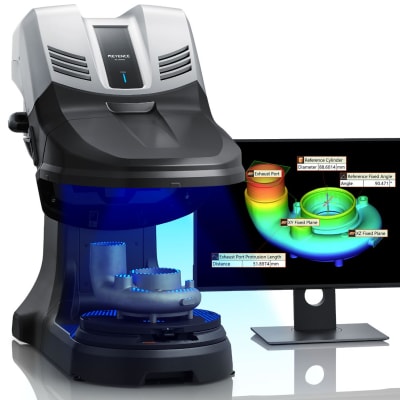

The VL Series 3D Scanner CMM incorporates a new scanning method to provide high-accuracy measurements even of detailed shapes and features with 2 micron repeatability. Each system includes documentation regarding the certification process, inspection reports, and traceability system.

Place-and-measure operation

Objects can be scanned directly on a motorized stage without the need for any fixtures - simply place the part on the stage and press a button. An intuitive software interface makes 3D measurement easy for anyone to perform.
Compare directly to CAD

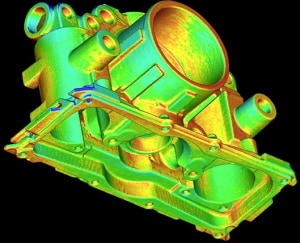

Clearly understand how a manufactured part compares to the design file by overlaying them. Differences in height are displayed using changes in color so that users can quickly see how and where a part varies in shape.

3D Cross-Sectional Measurement

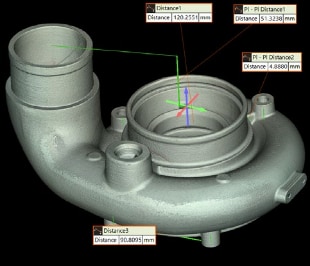

Create a cross-section of a 3D shape to perform detailed dimensional analysis. Points can be freely set on 3D shapes, even if the reverse side or an imaginary point is used as reference.

Learn more about the VL Series GD&T Measurement System!
