Profile Projector

Profile Projector
Instant Measurement System
- 99 dimensions on up to 100 parts in seconds
- No operator subjectivity
- Place and press inspection
- Automatically record data and generate inspection reports
- Download Brochure

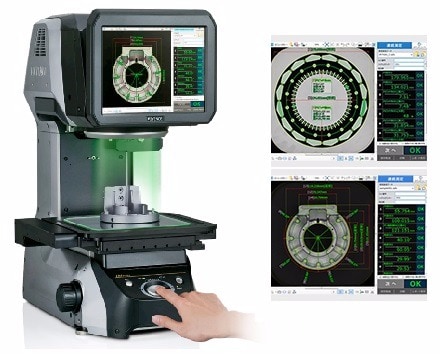

What is the KEYENCE IM Series?

The Instant Measurement System projects a parts profile and automatically performs measurements in place of conventional or digital comparators, calipers/micrometers, measuring microscopes, and optical CMMs.
Place and Press Inspection

Place up to 100 parts on the stage and measure up to 99 dimensional features on each part at the push of a button for instant part inspection.

Eliminate Operator Error

Utilizing the IM Series' advanced optics and high-speed image processing technology, measurements are now consistent regardless of who's operating the system.
Automatic Data Recording and Inspection Reports

Complete inspection and analysis reports can be automatically saved on the system without having to manually record the data by hand.

Spring
Lathe Processing
Threads
Plastic with Toplight

For more information download the brochure.
