Pattern Match Sensors

Pattern Match Sensors
- Quick one button teach
- Multi-purpose sensor
- Reliable detection
- Download Catalog

How does a pattern match sensor work?

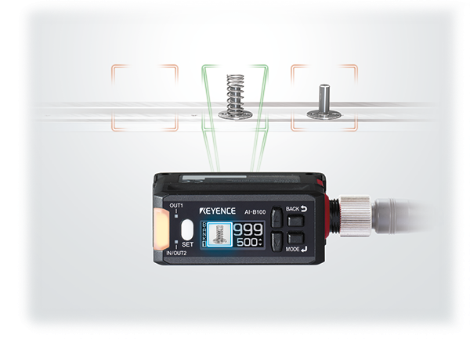

A pattern match sensor detects the shape, brightness, and orientation of a part to determine if the pattern matches what the sensor was taught.
Why do people use pattern match sensors?

Pattern match sensors are used to confirm the presence of a part and differentiate parts by comparing their patterns.

What separates the AI from other pattern match sensors?

The AI provides reliable detection even in situations when the part position is inconsistent or reflections are unstable. This pattern match sensor does not struggle where conventional sensors fail. Setup is also quick and simple with just the press of a button.
Common pattern match applications:
- Label misalignment
- Spring presence
- Part orientation
- Screw tap presence
