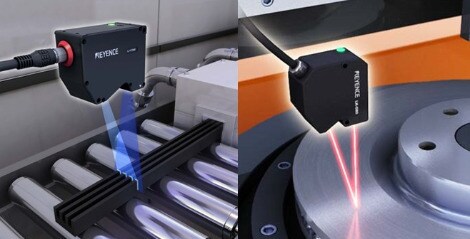

  • Laser measurement technology for stable inline measurement

    • A broad range of products for accurate, reliable 1D, 2D and 3D measurements using the triangulation method
    • Measurements unaffected by color, material and surface even with extremely short exposure times by balancing the laser emission time and intensity
    • Solutions for a wide range of measurement tasks, such as distance, angle, thickness, vibration and concentricity measurements

The triangulation principle explained:

The laser beam is directed at the sample to be inspected. The light reflected by the sample is collected by the receiver lens and reproduced on the light-receiving element. If the distance changes, the collected light is reflected at a different angle and the position of the beam spot on the light-receiving element changes accordingly.
