  • Lighting Methods with the VHX Digital Microscope

    • Bright-Field illumination (coaxial lighting)
    • Dark-Field illumination (ring lighting)
    • Multi-Lighting
    • Polarized illumination
    • Differential Interference Contrast (DIC)

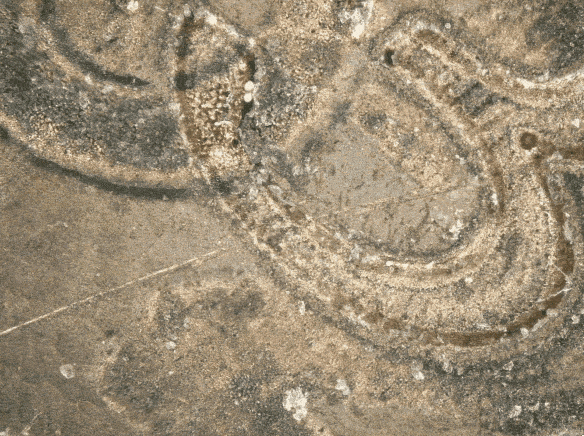

NEW Multi-Lighting function
Allows users to view lighting data from every angle in one image

  • Normal observation

  • Multi-lighting

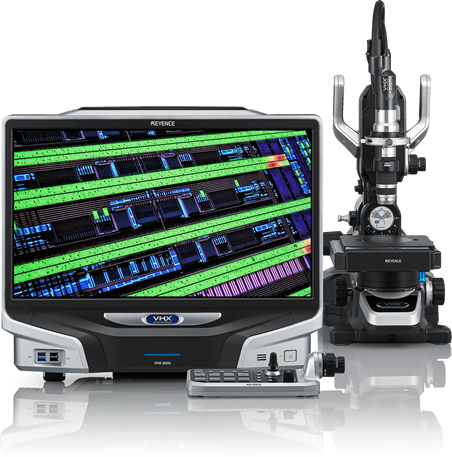

VHX Digital Microscope- Lighting Techniques

The VHX Digital Microscope allows users to easily adapt lighting so they can always capture the best image. Users can choose between bright-field (coaxial lighting), dark-field (ring lighting), transmitted, and polarized illumination with our lenses. The VHX also has lenses capable of differential interference contrast (DIC).

Now with the Multi-Lighting function, users can automatically capture an image with lighting data from every angle, no need to configure lighting. Surface features that were previously impossible to view become clear at just the push of a button.


Microscope Lighting Techniques: Illumination Methods Edition

Microscope Lighting Techniques: Illumination Methods Edition

  • [File type]PDF:1.57MB
