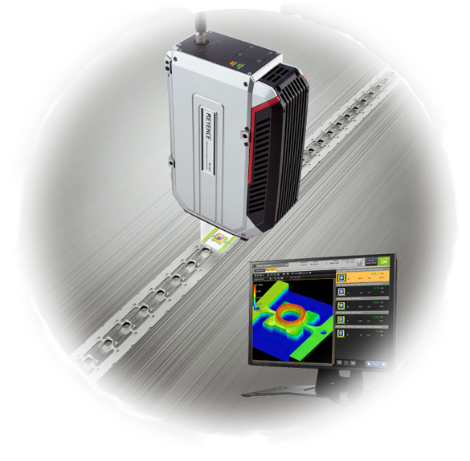

WI-5000 Real Time 3D Measurement

NEW WI-5000
Real Time 3D Measurement
- 80,000 points of data in 0.13 seconds
- 3D image without dead zones
- High accuracy Z-axis measurements
- Measure any surface type
- Download Catalog

How does the 3D sensor work?

The WI-5000 uses spectral interference to collect 80,000 points of height data to capture accurate 3D images in 0.13 seconds, without moving the part.
Why do people use this technology?

The sensor simplifies the inspection process by making it easier to capture and record measurements from a 3D image. It can be incorporated into production or used as an inspection station.

What can real time 3D sensors do?

Using the 3D image, the sensor can measure many aspects, from height difference and width, all the way to planarity and volume.
What materials can be measured?

The WI-5000 can accurately image almost any material type including metal, rubber, and glass.

Flatness
BGA Planarity
Solder Height and Volume
Bent Pins

Click here to get more information on the WI-5000.

Download Catalog
