Transforming 3D surface metrology

Measure across a 50 mm area with nanometer resolution

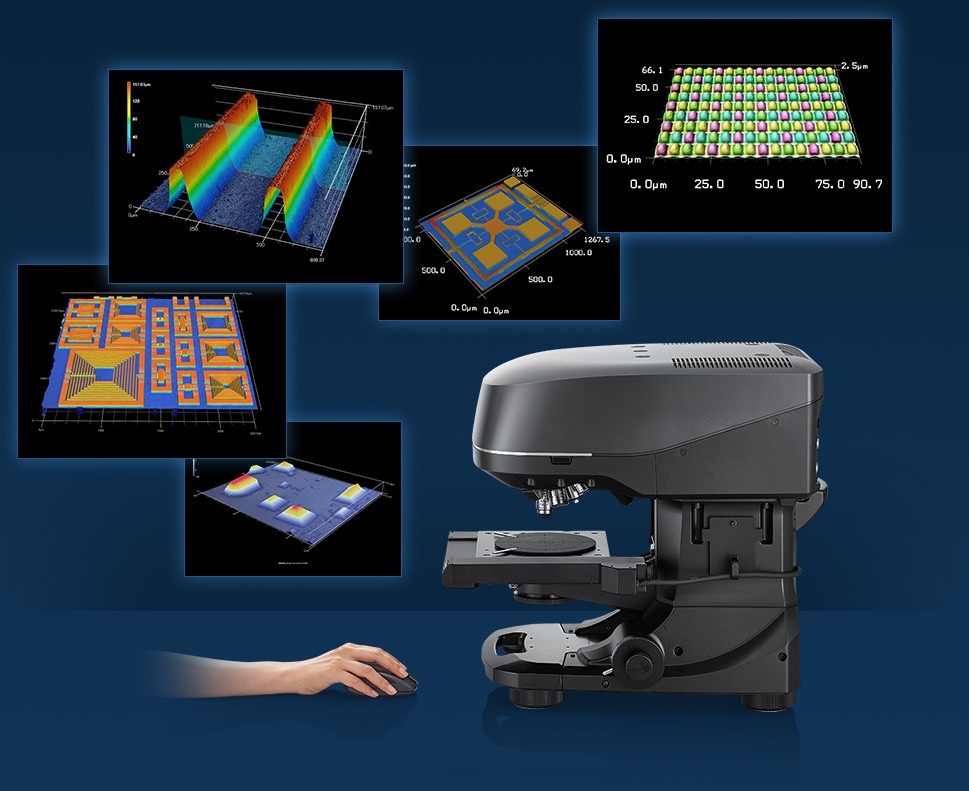

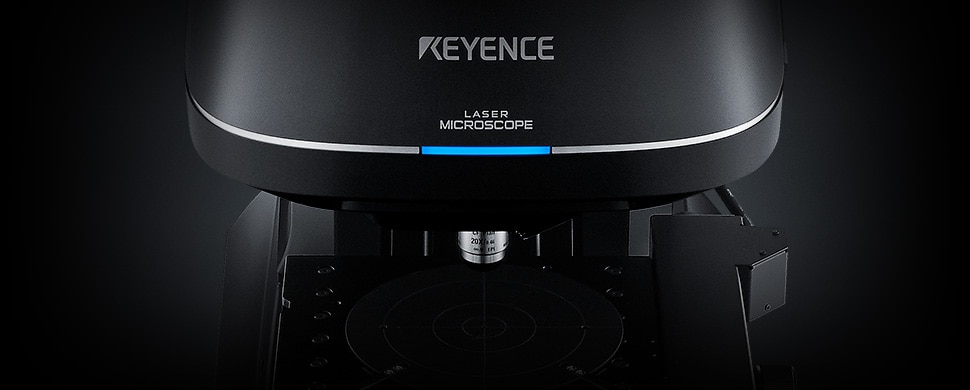

[NEW] 3D Laser Scanning Confocal Microscope VK-X1000

New functions of the 3D Laser Scanning Confocal Microscope VK-X1000

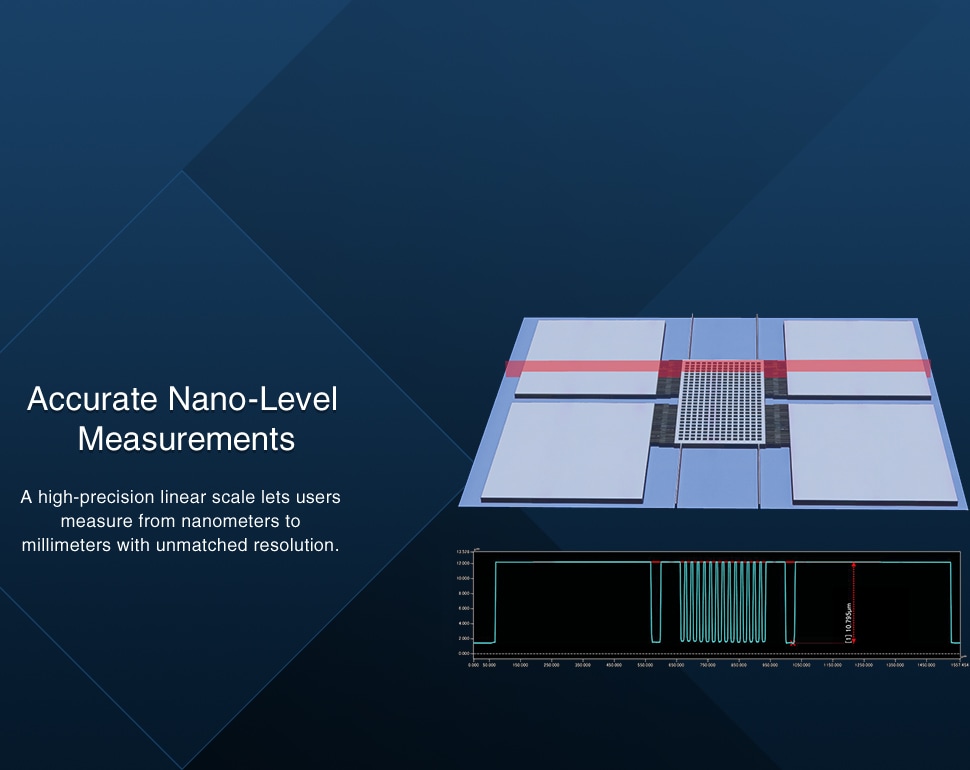

[Accurate Nano-Level Measurements] A high-precision linear scale lets users measure from nanometers to millimeters with unmatched resolution.

[16 times larger measurement area] The VK-X enables high-accuracy 3D measurements over a large area —a limitation of conventional laser microscopes.

Core Capabilities

  • [Observation] Spans the range from optical microscopes to SEMs / Magnification up to 28,800x, Fully-focused color observation, No pre-processing or vacuum required / (Fully focused optical image / Abrasive (400x) 16-bit laser color image)

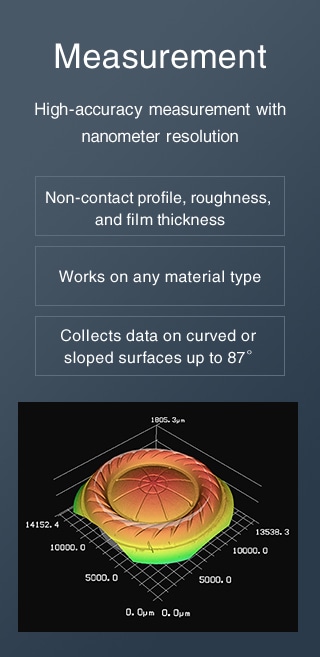

  • [Measurement] High-accuracy measurement with nanometer resolution / Non-contact profile, roughness, and film thickness, Works on any material type, Collects data on curved or sloped surfaces up to 87°

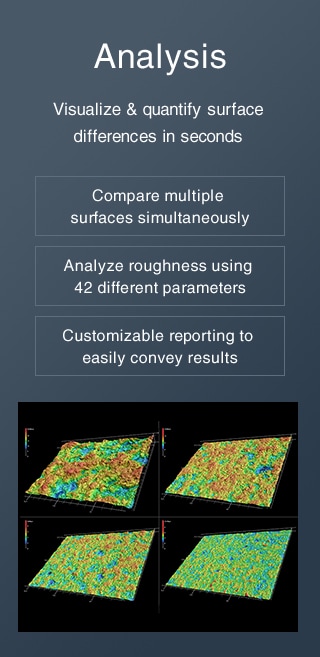

  • [Analysis] Visualize & quantify surface differences in seconds / Compare multiple surfaces simultaneously, Analyze roughness using 42 different parameters, Customizable reporting to easily convey results

For details, see the catalog.
