Easy 3D/GD&T Measurements by Anyone, Anywhere

Handheld Probe Coordinate Measuring Machine
XM Series

View Catalog

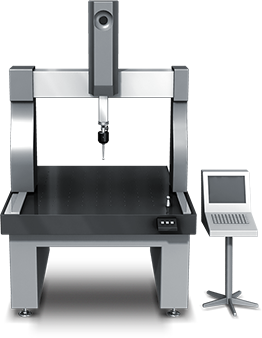

Difficult and Complex
Requires highly-trained operators and time-consuming programming.
Controlled Environment
Needs a large space and a regulated operation environment.
Ongoing Costs
Maintenance and calibration are costly ongoing needs.

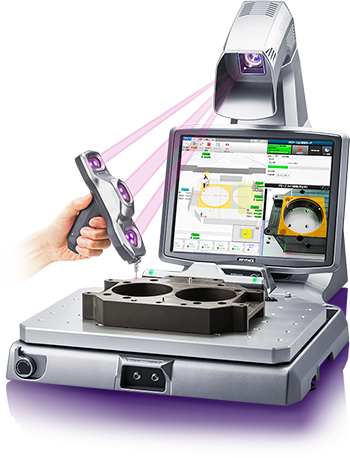

XM Series

As simple to use as a set of calipers.
Shop Floor Ready
The XM Series can be moved on a cart and doesn't require additional equipment such as a granite table.
No Cost of Ownership
Initial and running costs are greatly reduced.

New Function

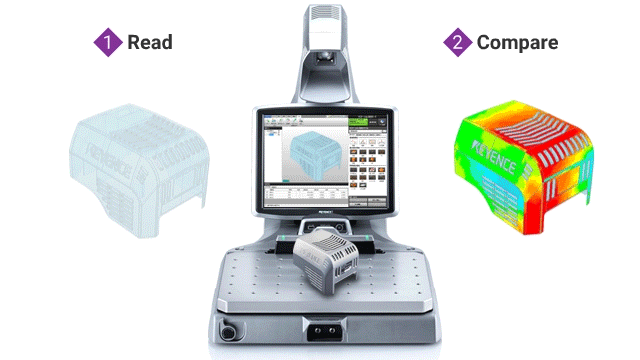

Compare with 3D CAD data

Product profile measurement can be performed with comparisons against 3D CAD data. Now it is possible to measure freeform surfaces.

For details, see the catalog.

You can also contact us at:


Download the catalog here
