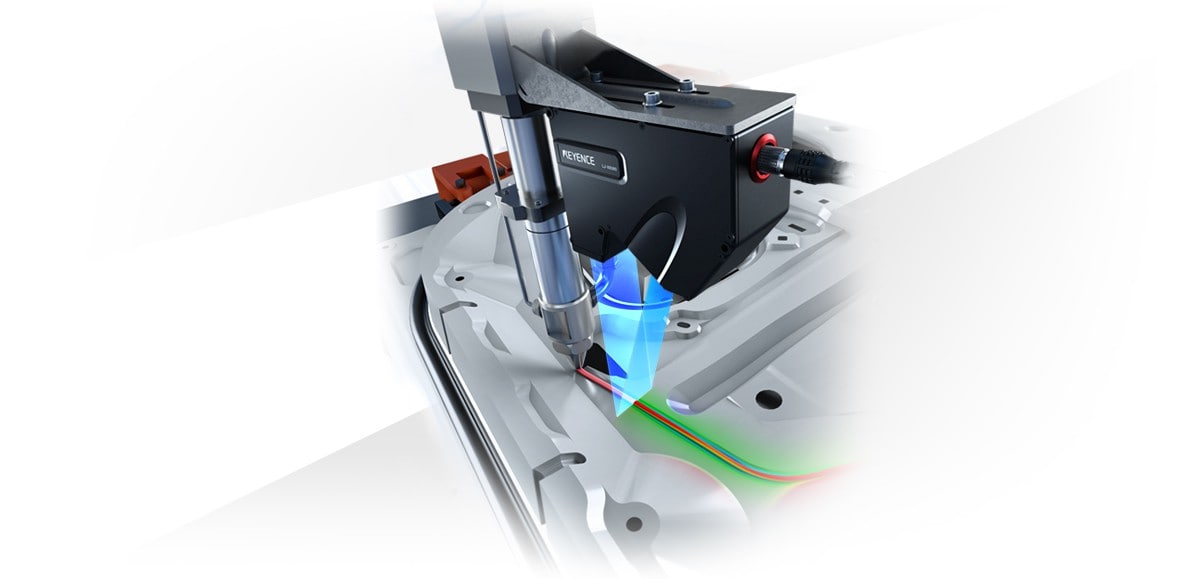

NEW Laser Profiler LJ-X8000 Series High-Resolution Measurement 3200 Profile Points 2D Measurement × 3D Inspection

View Catalog

4x More Resolution

Capture the shape of targets in exceptional detail with the new standard in high resolution measurement, 3200 points/profile.

Conventional

LJ-X8000

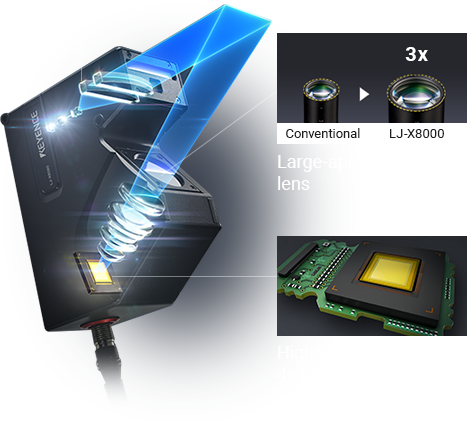

Cylindrical lens / Large-aperture receiver lens / High-resolution CMOS, 4x higher than conventional products

View Catalog

Measure & Inspect Inline

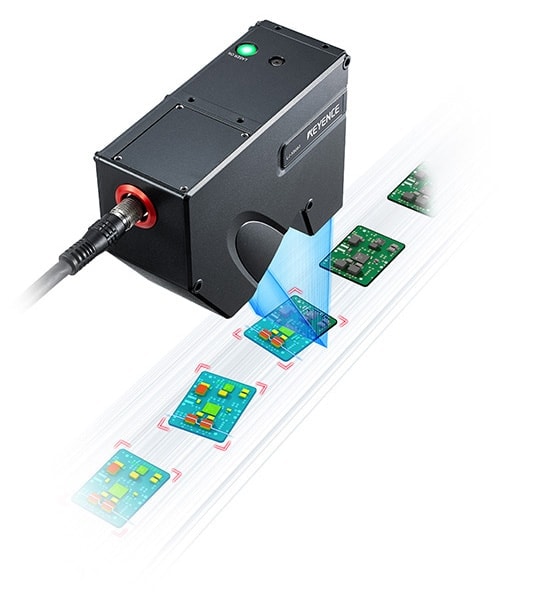

Perform accurate 2D/3D measurement and inspection inline by capturing the shape of a target. Omni-directional position correction enables measurement regions to align with a feature regardless of position or tilt.

If a PCB is misaligned or tilted, measurement and inspection cannot be performed correctly.

Without omni-directional position correction

Stable inspection is possible by identifying and automatically correcting for misalignment and tilting of targets.

LJ-X8000

View Catalog

Set Up in 3 Easy Steps

Measurement and inspection settings are configured in three easy steps. What used to require advanced programming skills can now be performed by any user.

Set up measurements in just a few clicks

Height Measurement

Profile Measurement

Trend Height Measurement

Height Measurement

  1. STEP
    1

    Capture settings

  2. STEP
    2

    Inspection tools

  3. STEP
    3

    Misalignment correction

  4. Configuration complete

View Catalog

2D/3D Measurement and Inspection Solutions

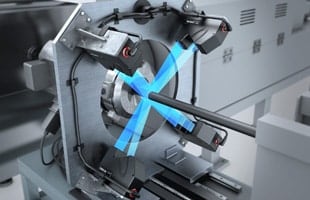

Cable Defect Detection

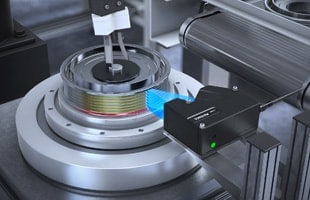

Car Pulley Measurement

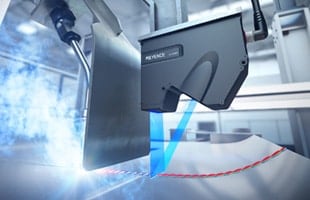

Weld Inspection

View catalog for more details.
