Select according to measuring distance

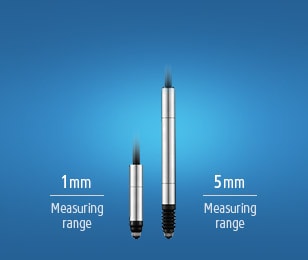

  • NEWShort type

    1mm Measuring range / 5mm Measuring range

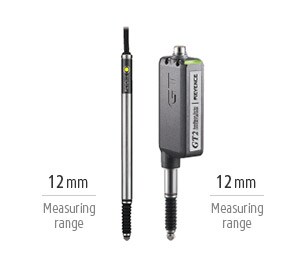

  • Mid-length type

    12mm Measuring range / 12mm Measuring range

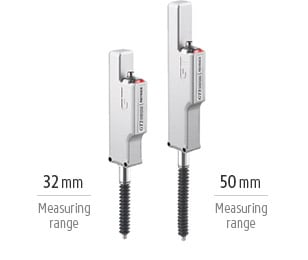

  • Long type

    32mm Measuring range / 50mm Measuring range

Select according to installation environment

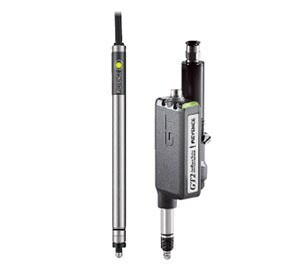

  • Air push type

    • Components including guided cylinders and jigs are kept to a minimum.
    • Reduces assembly and adjustment efforts.

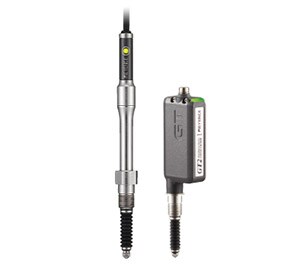

  • Flange-mounting type
    (all-in-one model)

    • No position adjustment required during installation.
    • Rugged design eliminates the risk of sensor head damage even when tightly clamped.

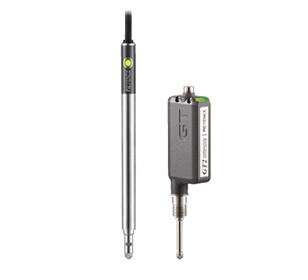

  • Low stress
    (Measuring force: 0.1 N and up)

    • Measure without applying force to the target.

Download the catalog for more details on
how this technology can be used in
your facility.

Download here.
