Vision System Lighting and Programming Made Easy
Now, anyone can easily conduct product inspection!

Intuitive Vision System
CV-X400 Series

Download Catalog

Anyone can now easily create complex images

  • CHIP INSPECTION ON A METAL SURFACE

  • STAMPED CHARACTER INSPECTION ON METAL CASTING

  • PRINTING DEFECT INSPECTION

  • INSPECTION OF EMBOSSED CHARACTERS ON RESIN SURFACES

Precise adjustment of lighting settings as well as
highly specialized image creation skills used to be required.

With the CV-X400 Series,
anyone can now create optimal images in 3 easy steps.

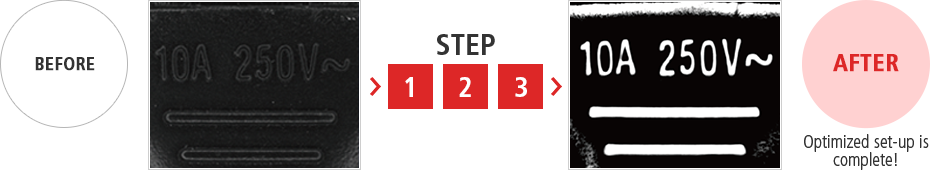

LUMITRAX TUNING

The 3steps make it possible for anyone to easily create the optimal LumiTrax™ image.

  1. STEP 1
    Select inspection type
  2. STEP 2
    Select the image with the sharpest features
  3. STEP 3
    Select the optimal contrast

Download Catalog

APPLICATION EXAMPLES

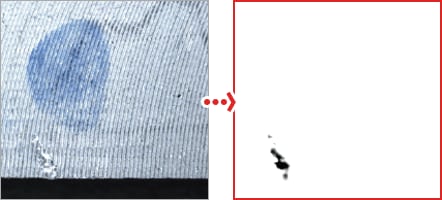

  • CHIP INSPECTION ON A METAL SURFACE

    Factors such as remaining cleaning agent, dirt, and minor hairline fractures are canceled so that only deep defects such as scratches and chips are detected.

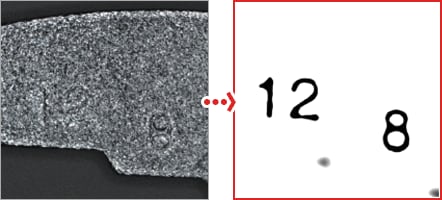

  • STAMPED CHARACTER INSPECTION ON METAL CASTING

    From a random casting surface, the Stamped character with greater concave-convex information are emphasized.

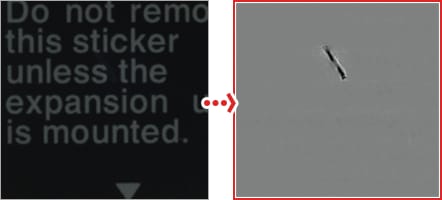

  • PRINTING DEFECT INSPECTION

    Images are created in which only the slits are extracted without being affected by the complex printed background.

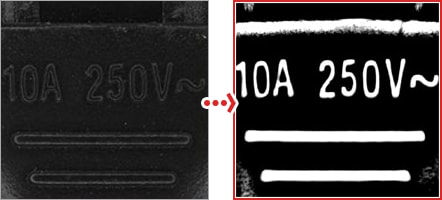

  • INSPECTION OF EMBOSSED CHARACTERS ON RESIN SURFACES

    Only the embossed characters are accurately extracted, even when the background or the object is the same color.

  • For details, see the catalog.
