NEW
Multi-Dimensional Vision System
Simultaneous 2D + 3D Inspection View Catalog

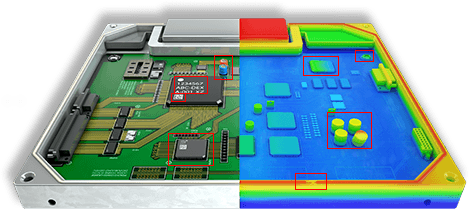

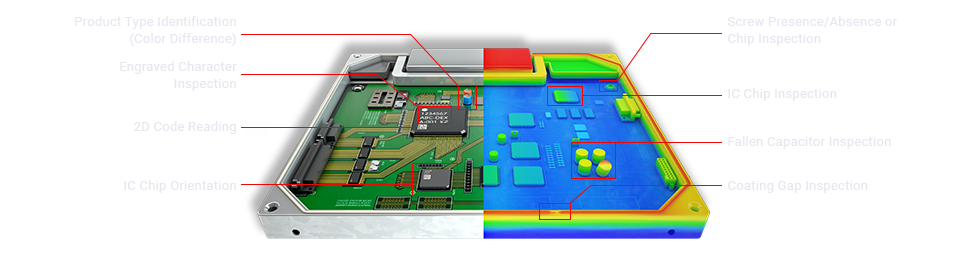

Product Type Identification (Color Difference)/ Engraved Character Inspection / 2D Code Reading / IC Chip Orientation / Screw Presence/Absence or Chip Inspection / IC Chip Inspection / Fallen Capacitor Inspection / Coating Gap Inspection

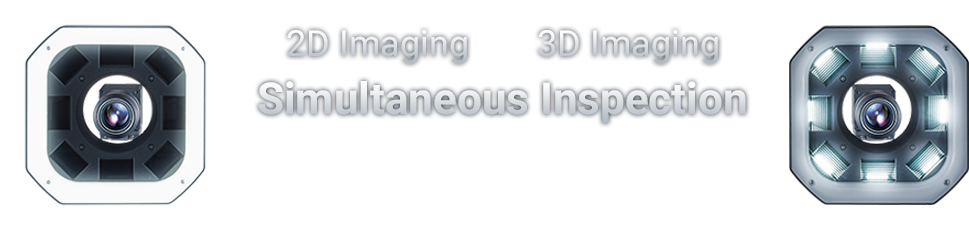

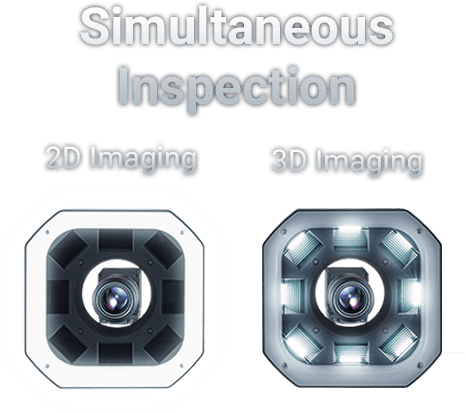

Simultaneous 2D + 3D
Inspection

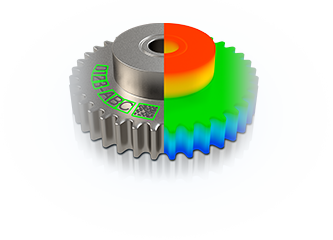

Complete your inspection by getting 3D data from a 2D camera!

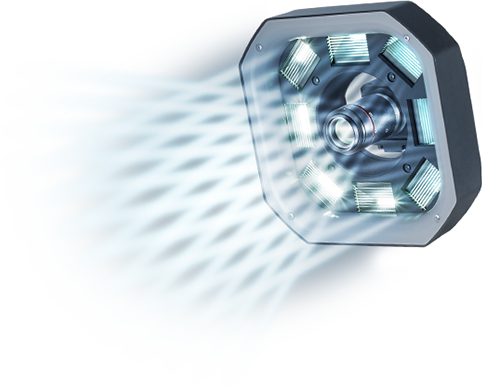

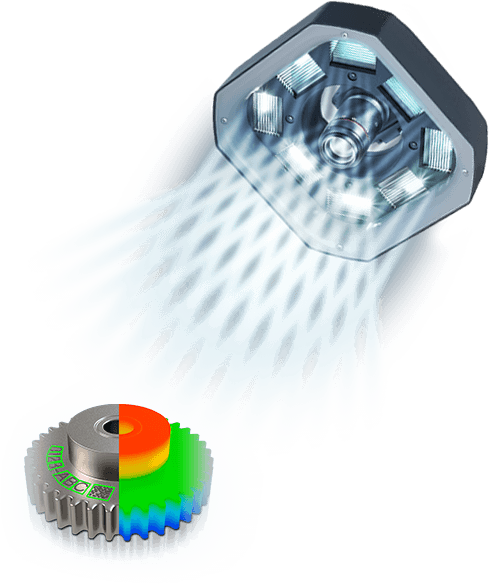

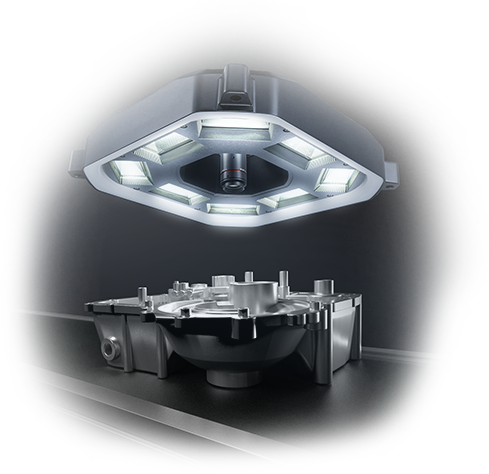

The new lighting incorporates pattern projection from eight light sources.
Capable of accurately capturing target appearance and using lighting
adjustments for stable detection of difficult-to-spot variations.

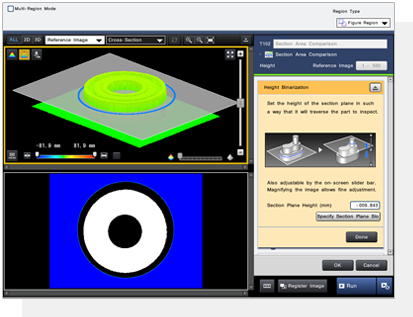

Simple Menu-Driven Settings

Easy to use interface for all users with setup menus for every step.

Need to Inspect Large Targets?

Inspect small and large parts with two light sizes, 125mm 4.92" and 250mm 9.84".

Download the catalog
to learn more!
