NEW! Vision System Automatic Inspection of Defects, Uneven Surfaces, and Contamination

Vision Systems Design 2019 Innovators Awards GOLD

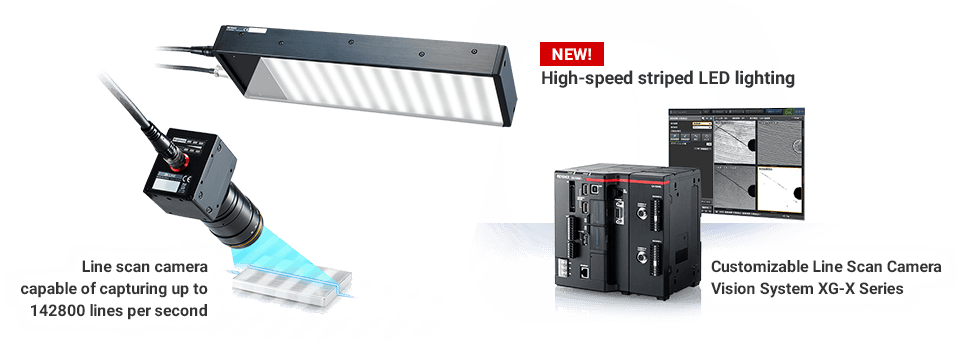

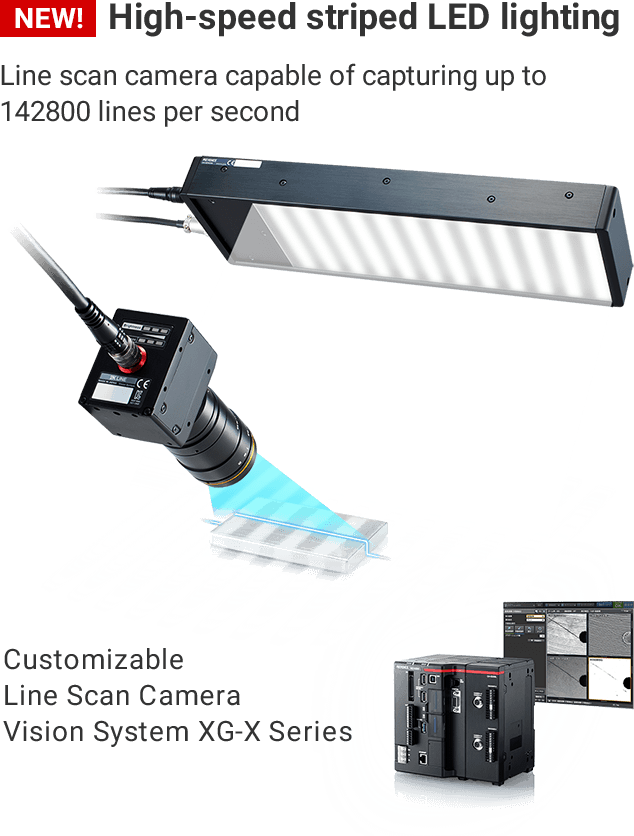

[NEW!/ high-speed striped LED lighting][Line scan camera capable of capturing up to 142800 lines per second][Customizable Line Scan Camera Vision System XG-X Series] [NEW!/ high-speed striped LED lighting][Line scan camera capable of capturing up to 142800 lines per second][Customizable Line Scan Camera Vision System XG-X Series]

Reliable extraction of minute defects

Capture high-resolution images to extract defects otherwise impossible to see with a camera

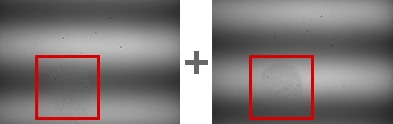

IMAGES WITH DIFFERENT STRIPE PATTERNS ARE COMBINED.

AN IMAGE WITH ONLY THE DEFECTIVE AREA EXTRACTED IS CREATED.

Different calculation methods are used to create multiple images.

5 types of images created from each individual captured image

Normal image
Specular reflection image
Diffuse reflection image
Gloss ratio image
Shape image

Stable inspection of extracted defects

Stable inspection of conventionally difficult targets—from composite inspections of defects with varying conditions to inspections of complex shapes

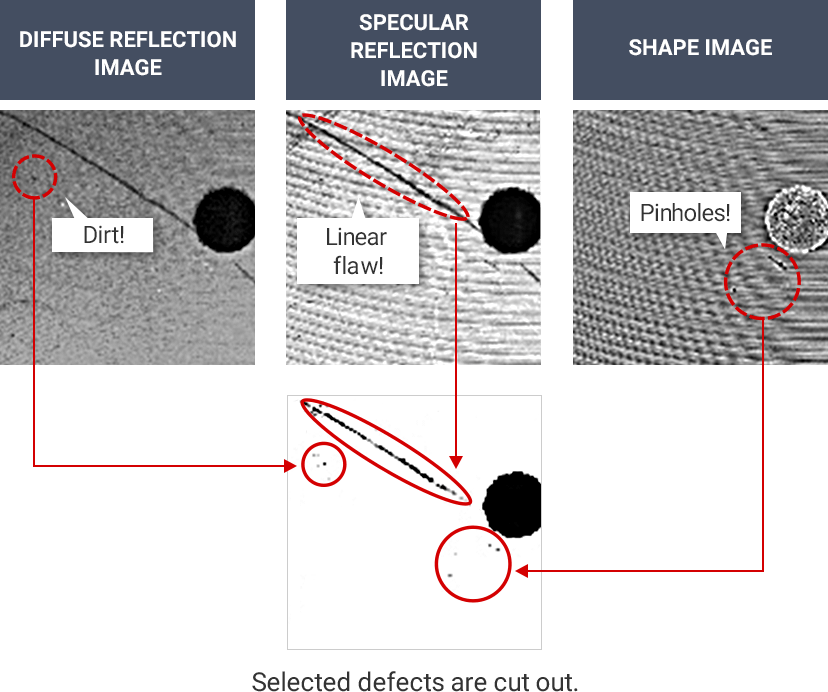

DIFFUSE REFLECTION IMAGE / SPECULAR REFLECTION IMAGE / SHAPE IMAGE
