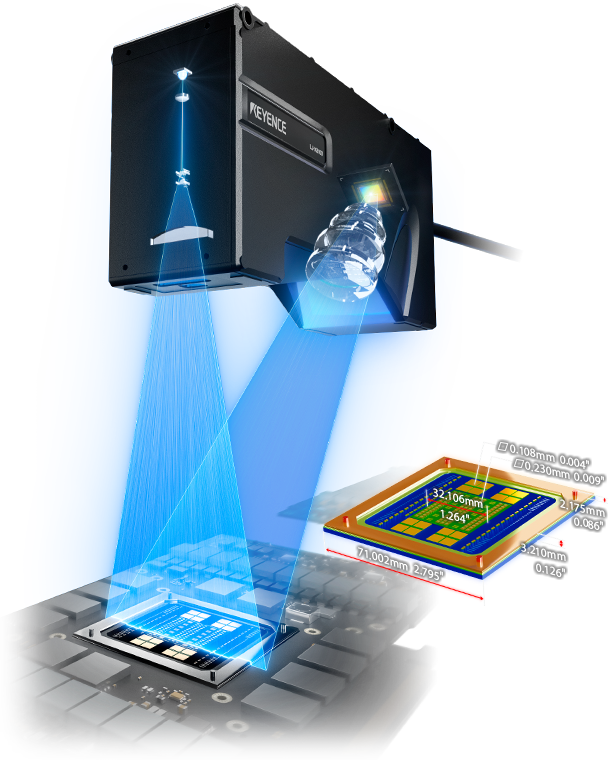

2D/3D Laser Profiler LJ-X8000 Series New Models Offer Increased Precision Over a Larger Area The New Standard for 3D Inspection

Achieving large-scale measurement while maintaining high definition and high precision

Height, width, angle, flatness, etc.Measurement Checks

Dents, swelling, chips, burrs, etc.Appearance Inspections

Solve Both with Inline 3D Inspection

Solve Challenges in Nearly Any Situation

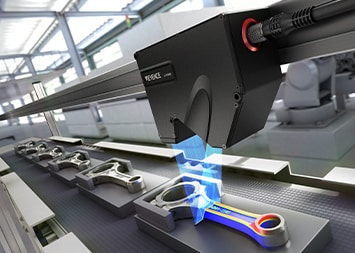

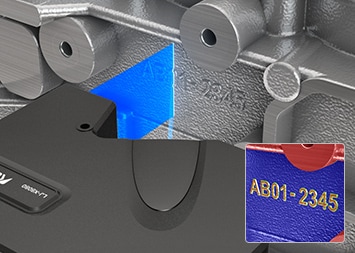

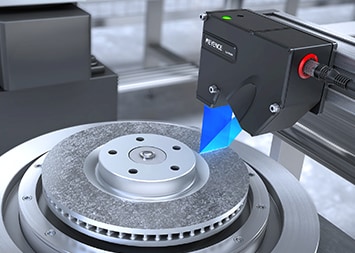

Automotive & Metals

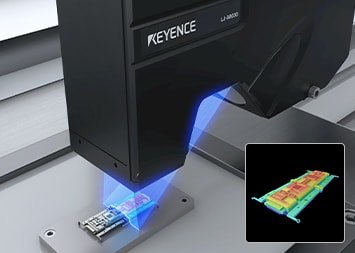

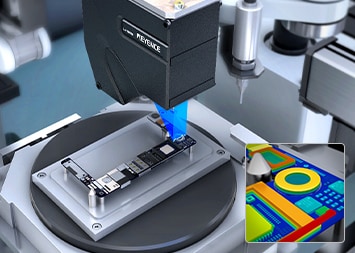

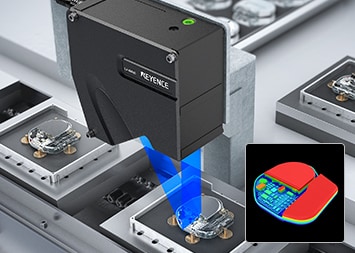

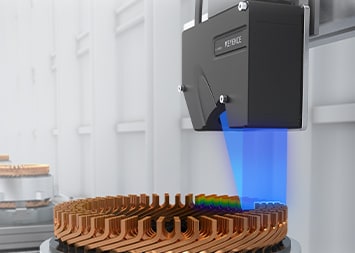

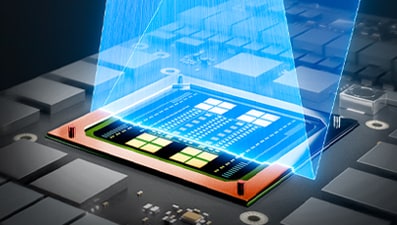

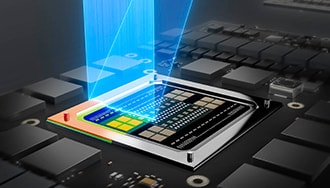

Batteries, Electronic Components, & Electrical Equipment

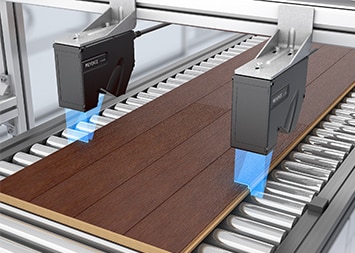

Building Materials

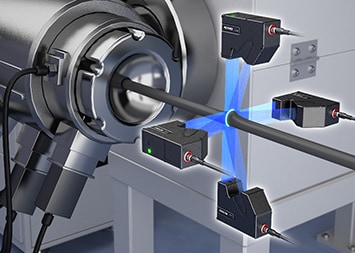

Plastics & Cables

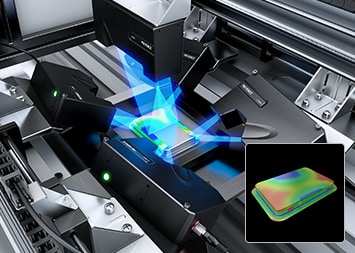

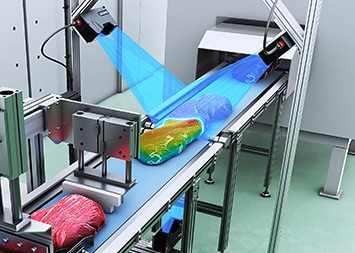

Food & Beverage

Logistics

New LJ-X8030

Measurement range (Maximum width)16 mm (0.63″)

Repeatability (height)0.3 µm (0.000012″)
New LJ-X8070

Measurement range (Maximum width)36.5 mm (1.44″)

Repeatability (height)0.3 µm (0.000012″)
New LJ-X8100

Measurement range (Maximum width)77 mm (3.03″)

Repeatability (height)0.5 µm (0.000020″)

LJ-X8020

Measurement range (Maximum width)8 mm (0.31″)

Repeatability (height)0.3 µm (0.000012″)
LJ-X8060

Measurement range (Maximum width)16 mm (0.63″)

Repeatability (height)0.4 µm (0.000016″)
LJ-X8080

Measurement range (Maximum width)39 mm (1.54″)

Repeatability (height)0.5 µm (0.000020″)
LJ-X8200

Measurement range (Maximum width)80 mm (3.15″)

Repeatability (height)1 µm (0.000039″)
LJ-X8300

Measurement range (Maximum width)160 mm (6.30″)

Repeatability (height)3 µm (0.000118″)
LJ-X8400

Measurement range (Maximum width)320 mm (12.60″)

Repeatability (height)5 µm (0.000197″)
LJ-X8900

Measurement range (Maximum width)720 mm (28.35″)

Repeatability (height)10 µm (0.0004″)
