A New Confocal Laser Scanning Microscope for Everyday Use

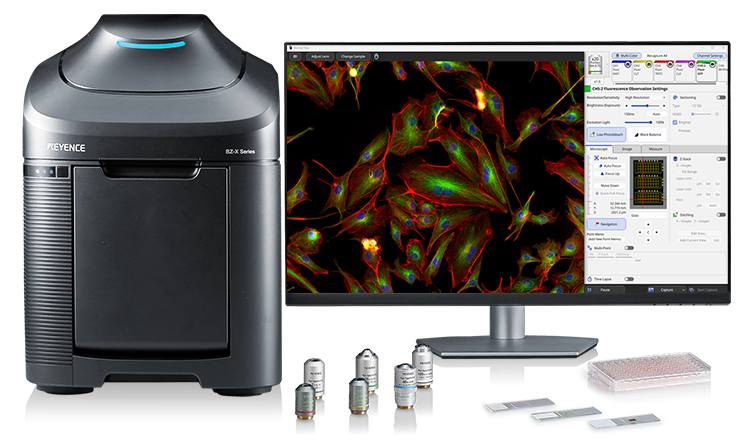

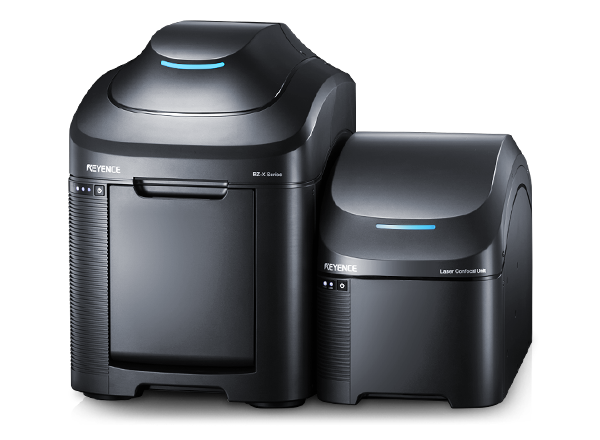

All-in-One Fluorescence Microscope BZ-X1000

NEW Confocal Laser Scanning Unit BZ-XLC1

All-in-One Fluorescence Microscope

Confocal Laser Scanning Unit

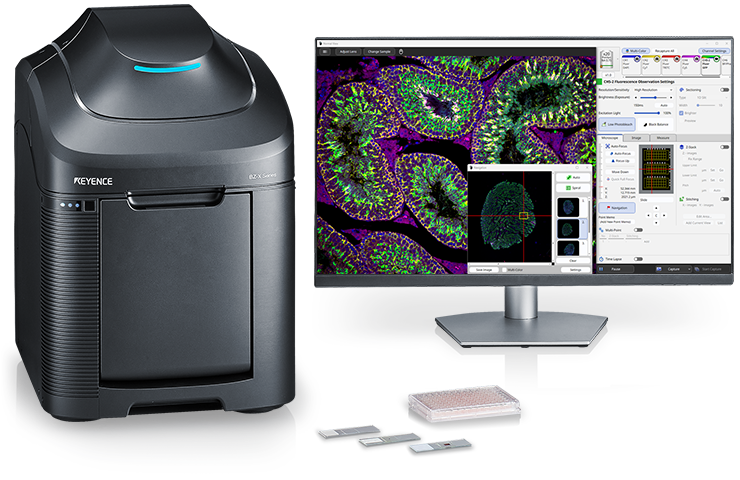

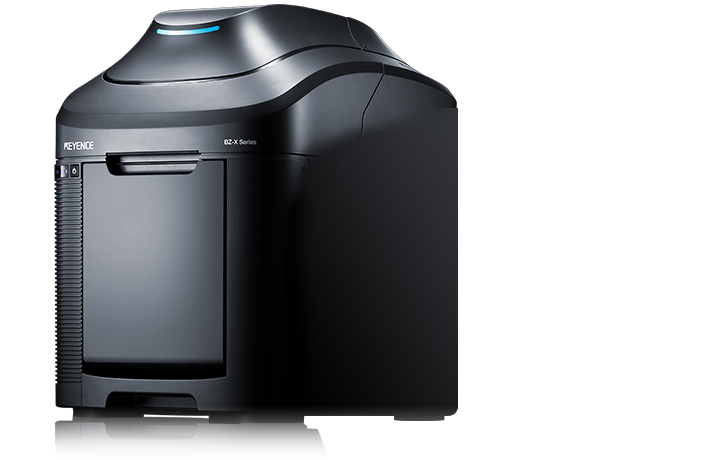

All-in-One Fluorescence Microscope

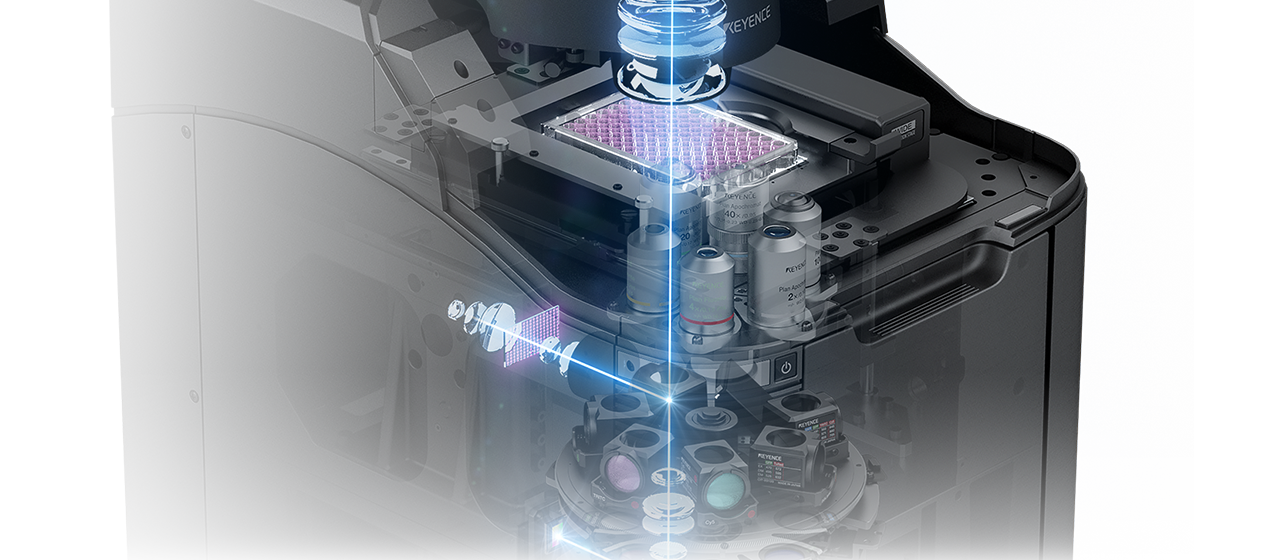

High-Speed Acquisition Revolutionary filter wheel captures images 5× faster

  • Built-in high-speed motorized filter wheel
  • Dual filter system combines faster imaging with high-sensitivity

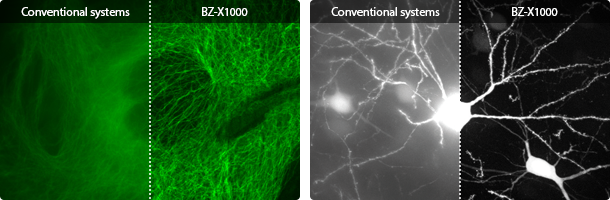

High-Resolution Imaging 10-megapixel CMOS camera

  • Monochrome and color imaging
  • High-brightness LED
  • 6-channel multi-color capability

Easy-to-Use Intuitive design built for all users

Place the specimen within the field-of-view and press a button to start automatically scanning. The system intelligently detects the specimen’s shape and scans only the required areas, rapidly generating a complete, overall image.

Microscope Capabilities That Expand as Your Research Evolves

Tissue Imaging

  • Image stitching
  • Z-Stack
  • Quantification
  • 3D analysis

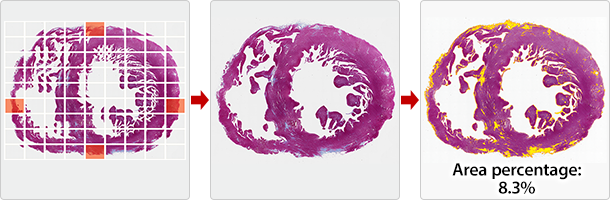

Quantitative analysis of whole tissue sections

Cell Imaging

  • Single-cell imaging
  • 3D analysis
  • Near-infrared imaging
  • Localization analysis
High-magnification, high-resolution imaging of microstructures

Live-Cell Imaging

  • Time-lapse
  • Calcium imaging
  • Time-series analysis
  • Video capturing

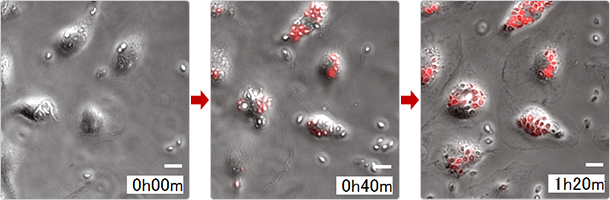

Time-lapse with phase contrast and fluorescence overlay

Microplate Assays

  • High throughput
  • Plate scanning
  • Screening
  • Batch imaging and analysis

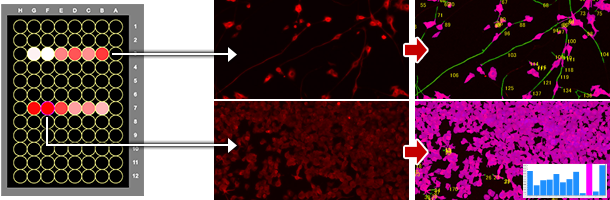

Multi-well plate analysis

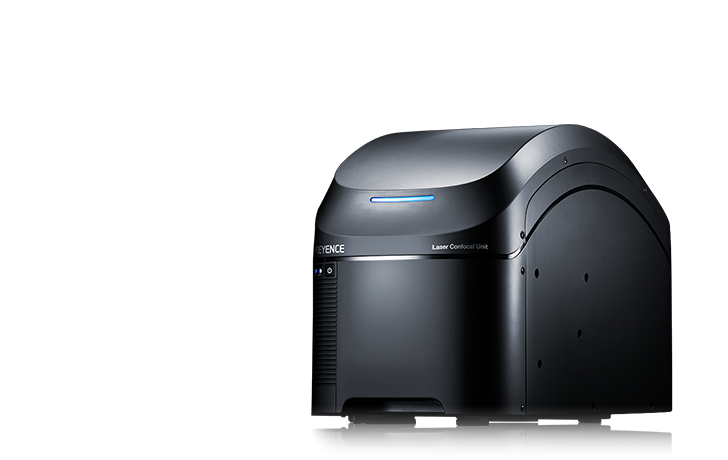

Confocal Laser Scanning Unit

No Darkroom Required & Space-Saving Design

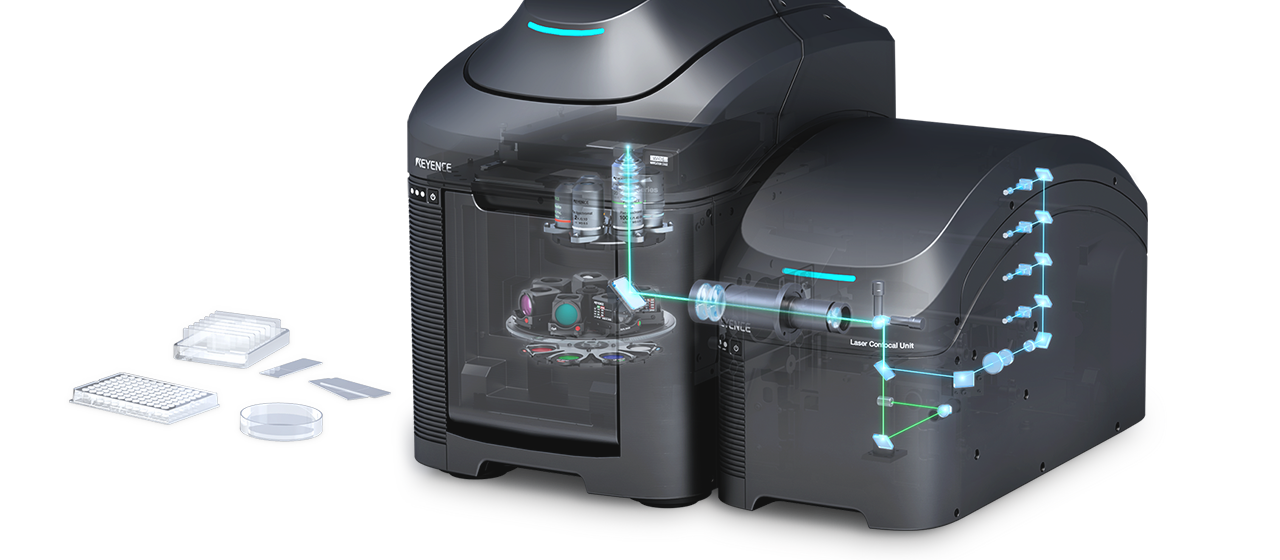

Everything you need for laser confocal imaging, all in one.
Easily install it on your existing lab bench.

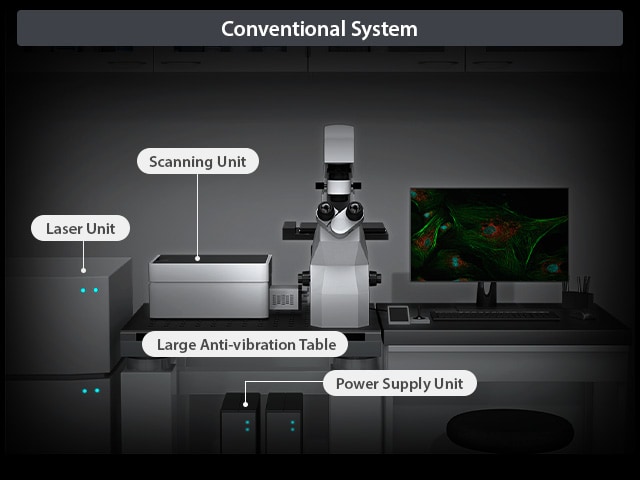

Conventional System

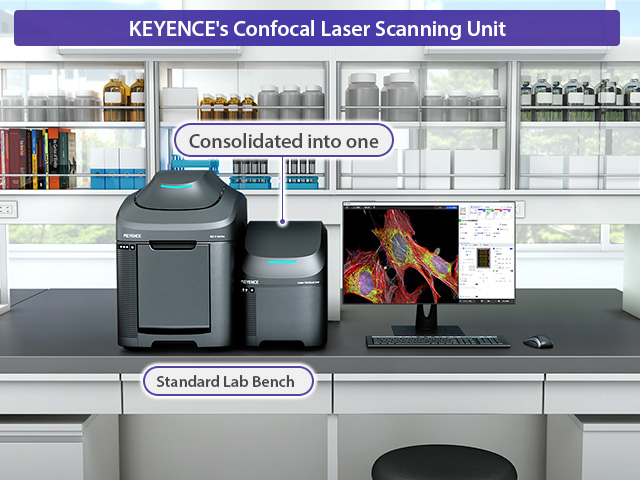

KEYENCE's Confocal Laser Scanning Unit

Easy-to-Use Interface & High-Speed Operation

Switch from widefield to confocal imaging with a single click while maintaining focus across magnifications.
Anyone can efficiently capture images while minimizing phototoxicity and photobleaching.

Simple Setup and Operation— So You Can Focus on Breakthrough Results
