An In-Depth Look Three Reasons to Switch from Arm CMMs to the WM Series
Reason 1 Measurement range of up to 25 m 82.0'
Limited range
Arm CMMs have a fixed range of motion, and measurement beyond that range is not possible.
Redefining measurement range with a new concept

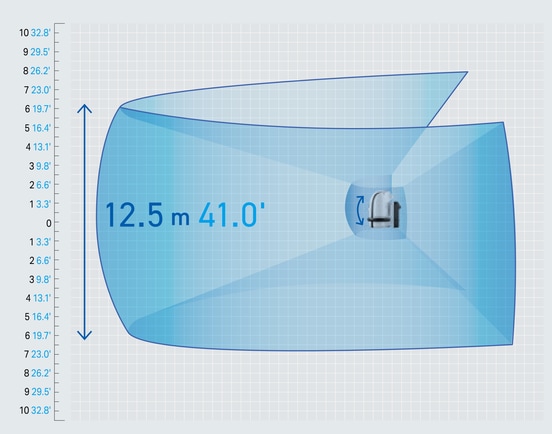

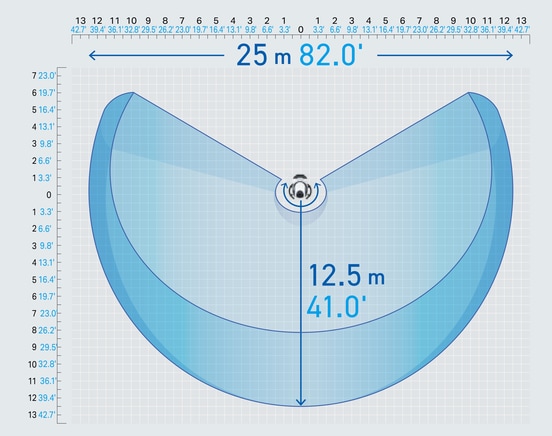

The WM Series offers a measurement range of up to 25 m 82.0'. Measurement is also possible anywhere within the camera’s field of view.
Reason 2 Wireless probe for simplified measurement
Difficult to handle
Physical limitations prevent arm CMMs from measuring areas that cannot be reached.
Easy-to-handle wireless probe
The WM Series features a wireless probe that is easy to use. Simply place the probe against the target for measurement.
Reason 3 Easy-to-understand measurement results
Difficulty in identifying measurement locations
With general-purpose CMMs, measurement results are simply lines of numbers and symbols, making it difficult to identify the measurement location.
Easy-to-understand inspection reports with images
The WM Series superimposes measurement results directly on images captured by the camera.
This makes it possible to create inspection reports that allow anyone to immediately understand what was measured.
Unparalleled ability to handle various targets with contact and scanning collaboration
All kinds of measurements are possible on site, both in size and shape.
Choose from two probe types for measuring hole distance and other dimensional features as well as curved surfaces and complex shapes.

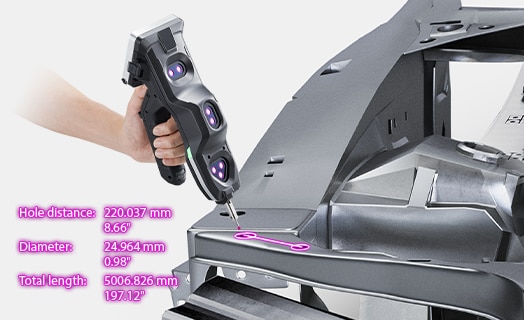

Dimensional measurement with contact probe

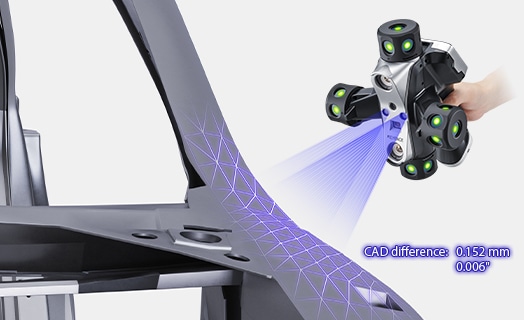

NEWLaser-scanning probe for shape measurement
Application Examples
Adjustment of equipment and measurement after assembly
It is possible to measure the position and tipping after assembly.
Shape measurement of pressed products
Scan measurement of free-form shapes, complex R, etc. can be performed.
