MEASUREMENT EXAMPLESPRECISION METAL AND ELECTRONIC COMPONENTS

Spark plugs, injectors, spool valves, and engine valves

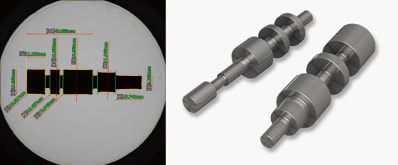

The advanced capabilities of the system allow up to 5000 dimensions to be measured simultaneously. Measurements compared to pre-set standards and measurements of fine radii or curved surfaces can be performed all at once.

Gears and sprockets

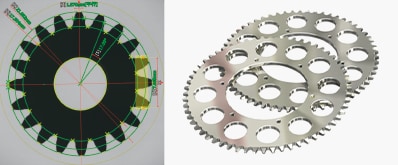

Peak circle diameter, tooth pitch angle, and concentricity can easily be measured using virtual lines.

Oil seals, O-rings, and mechanical seals

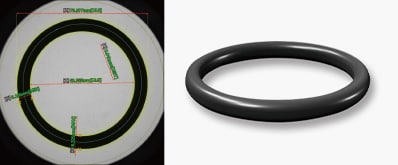

Both the inner and outer diameters, as well as the minimum and maximum diameters can be easily measured. Burrs are automatically recognized and measured as well.

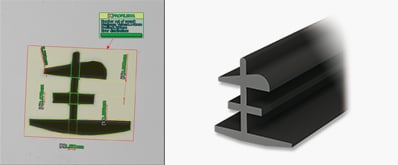

Weatherstripping

Profile tolerance measurements can be performed easily by making comparisons with CAD drawings or a master sample.

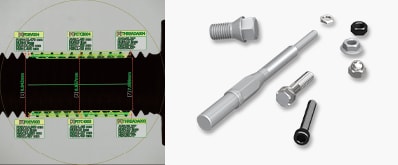

Springs, screws, and bolts

A variety of measurements such as major diameter, minor diameter, pitch diameter, pitch, and angle can be performed instantaneously. The IM-X Series is also equipped with a dedicated menu for thread measurement.

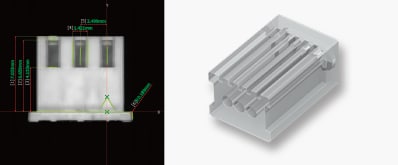

Electrical component connectors, seatbelt components, and interior components

It is easy to perform measurement for points where epi-illumination is used. Lighting conditions are reproduced automatically.

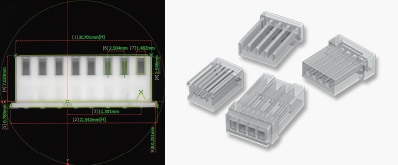

Connectors, cases, and plastic precision molded parts

Measurement using reference lines and pitch measurement

The advanced capabilities of the system allow up to 5000 dimensions to be measured simultaneously. Because the illumination conditions are reproduced automatically, it is possible to perform measurements with no variations between users.

Precision pressed parts

Measurement using virtual lines, R measurement, and GD&T

A variety of measurement menus are available including measurements using virtual lines, R measurements, and GD&T. These measurements can be easily specified with a click of the mouse.

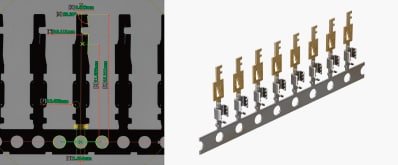

Lead frames

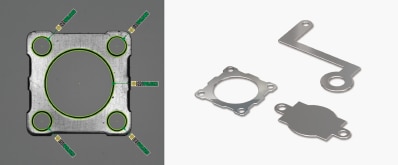

Pattern measurement and measurement of positions from reference points

For targets with multiple instances of the same pattern, batch measurement makes it possible to measure all the patterns simultaneously.

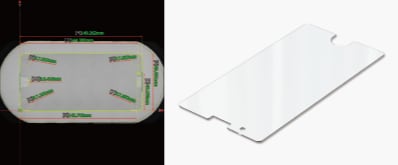

Screen glass and protective films

Shape measurement and shrinking percentage inspection

For transparent objects, illumination can be used to apply contrast, which enables easy and accurate measurements.

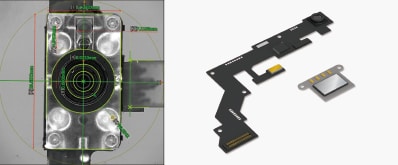

Camera modules and flexible PCBs

Device position misalignment inspection and positional deviation measurement of mounted components

The IM-X Series is equipped with an auto-focus function. Even for targets with steps, focused images can be captured for each height to enable high-accuracy measurement.

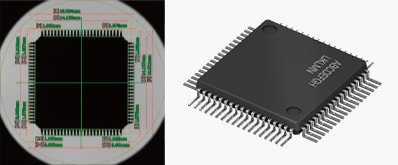

Mounted parts ; ceramic capacitors, crystal oscillators, and ICs

Lead measurement and distance measurement for plated parts

The IM-X Series (high precision model) has achieved a repeatability of 0.1 μm while still maintaining a streamlined, user-friendly experience. Simply “place and press.”
