Image Dimension Measurement SystemIM-Xseries

Reduced inspection time

Measure up to 5000 Dimensions in Just 1 Second

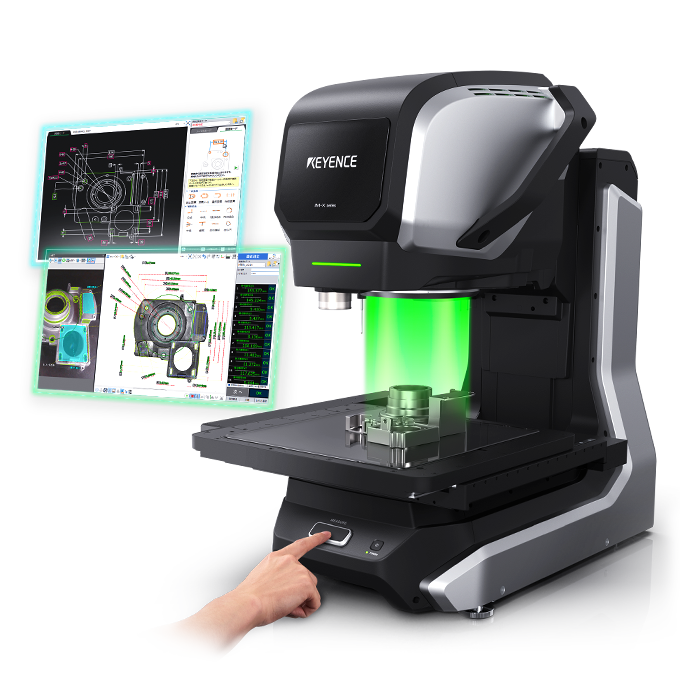

Pressing a single button starts measurement, with results and a CAD drawing shown immediately on the screens behind.

5 Measuring Devices
in 1 Unit

The IM-X Series has been recognized not just for its speed and ease-of-use, but also the ability to perform measurements that previously required a range of inspection systems.

  • Measuring microscope

  • Optical CMM

  • Optical comparator

  • Hand caliper/micrometer

  • GD&T and profile measurement system

Anyone can Measure with Simple Place-and-Press Operation

The IM-X Series image dimension measurement system allows anyone to take hundreds of precise measurements by simply placing the part on the stage and pressing a button.

The IM-X Series was designed on the concept of doing away with archaic measurement practices that were limitations of the technology of their time. By utilizing proven technologies in new ways, the IM-X Series provides customers with added value from standardizing difficult measurements to streamlining entire inspection processes.

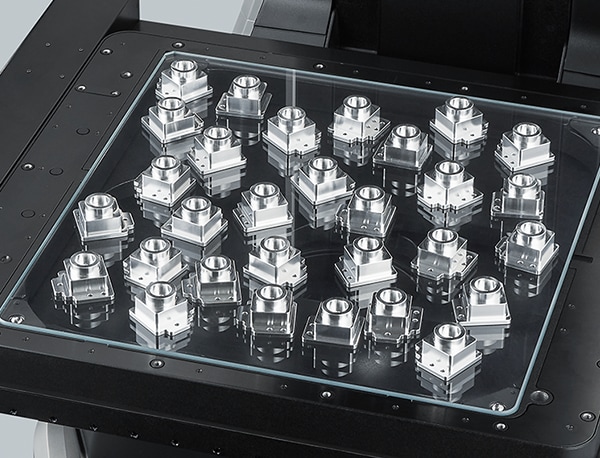

Dozens of identical parts are placed together under the glass stage to be measured in a single operation.

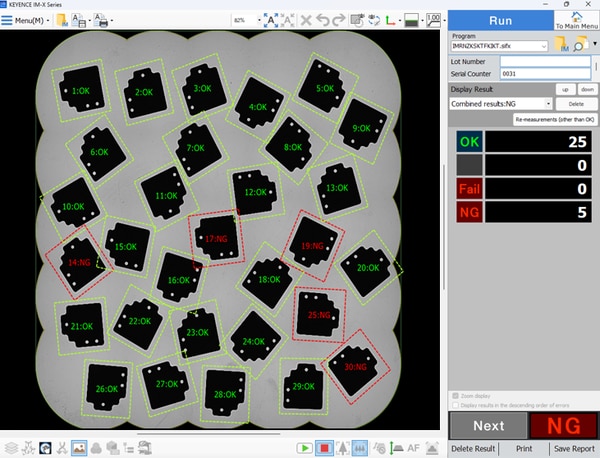

The results screen outlines each part OK or NG and tallies them automatically.

Case study: MeasurementAdvantages of Introducing the IM-X Series

Incoming InspectionIM-Xseries Improves Yield

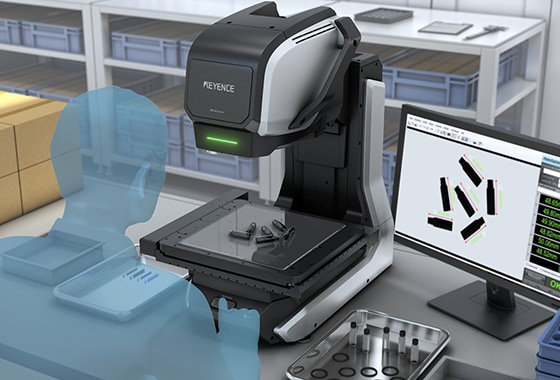

At an incoming-goods desk stacked with parts bins, the screen measures several small supplied parts together.

Several dozen dimensions can be measured in a few seconds - this allowed us to add more inspection items and samples for measurement.

With the improved capability, defective parts can be singled out prior to assembly, which significantly improves yield in the assembly process.

Because incoming inspection can be performed without being affected by who does the job, it became easier to check the quality of the parts delivered by the supplier and give further instructions if necessary.

  • Multiple-item incoming inspections performed consistently without variations
  • Handles a larger sample size and measures previously untested parts

In-process InspectionIM-Xseries Improves Productivity

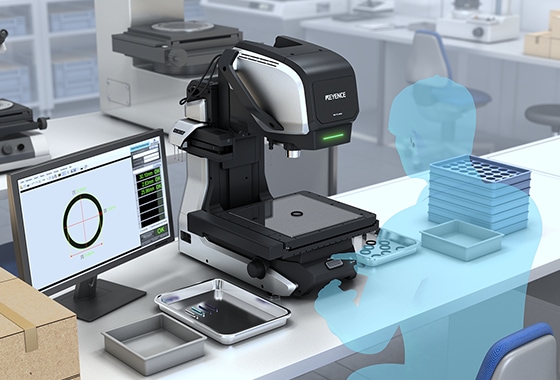

On the production floor, the screen traces a round part's profile during first-article inspection.

First-article inspection during system startup and tooling changeover can really limit production when waiting for someone to finish inspection. By having an IM-X Series system near the production line and being able to finish first article inspection in a few seconds, we are able to get up and running quickly and maximize production.

We are now able to perform sample inspection much more frequently, allowing us to detect early signs of defects using the onboard trending. Being able to detect abnormalities in production early on has saved us from producing defective parts and makes the IM-X Series an invaluable tool in our production line.

  • Detection of early signs of problems within the process
  • Improved precision in equipment adjustment

Pre-shipment InspectionIM-Xseries Reduces Personnel Costs and Shortens Lead Time

Near stacked shipping crates, the screen measures several small parts' layout together before they ship.

Training expenditure can be greatly reduced with the IM-X Series. For example, in overseas applications where turnover is high, the IM-X Series can take identical measurements regardless of the operator.

In cases where we have short lead time, the IM-X Series helped fulfill the demand of our customers. We were able to maintain stock once we introduced this measuring equipment.

  • Reduces inspection time and the number of personnel
  • Reduces training time
  • Reduces the man-hours needed to create inspection records
  • Expedites shipping inspection for short lead-time orders

Testing in the Laboratory

In the lab, the screen traces a part's profile in detail next to trays of sample parts.

Compared to our previous measuring equipment, the IM-X Series is easier to use and gives the same results regardless of who performs the measurement. The problem of having measurements differ depending on the examiner has been resolved, client complains related to testing have significantly decreased.

The IM-X Series can automatically save measurement results and generate a report, which significantly reduces the man-hours spent on data management. We can now save data on one server to manage data using just one centralized system.

  • Improves the quality control system and protects against risks
  • Performs measurement based on national traceability standards
  • Provides measurements that do not rely on examiners' experience

Applications

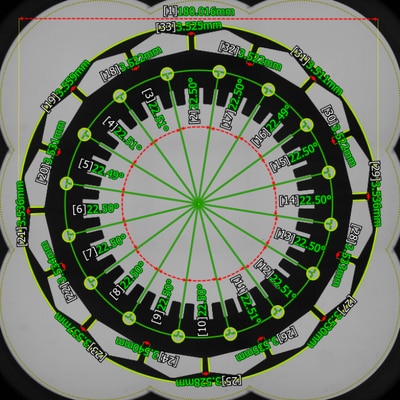

Every hole position, diameter, and angle around the pressed part's circumference is measured and labeled in a single shot.

Pressed product

Every diameter and length along the lathe-turned shaft is measured and labeled in a single shot.

Lathe-machined product

The spring's coil diameter and pitch at each turn are measured and labeled in a single shot.

Spring

Every width, diameter, and depth of the sintered part is measured and labeled in a single shot.

Sintering

Every slot width and spacing on the injection-molded part is measured and labeled in a single shot.

Injection molding

Every tooth position and angle around the gear is measured and labeled in a single shot.

Gear

Every pin's width and spacing on the connector terminal strip is measured and labeled in a single shot.

Connector terminal

The machine tool tip's diameter and angles are measured and labeled in a single shot.

Machine tool tip

Contact us to learn more about how our advanced technology can help take your business to the next level.
