Measurement Examples: AviationPortable and handheld 3D scanner and dimensional probing system

With a measurement range of up to 25 m 82.0', single-person measurement is possible for various large targets.

This wide range makes the WM valuable in diverse applications.

Wide Area Coordinate Measuring Machine WM Series

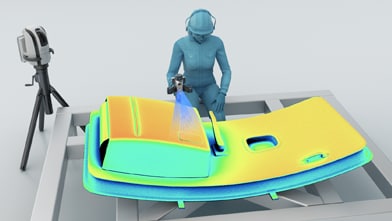

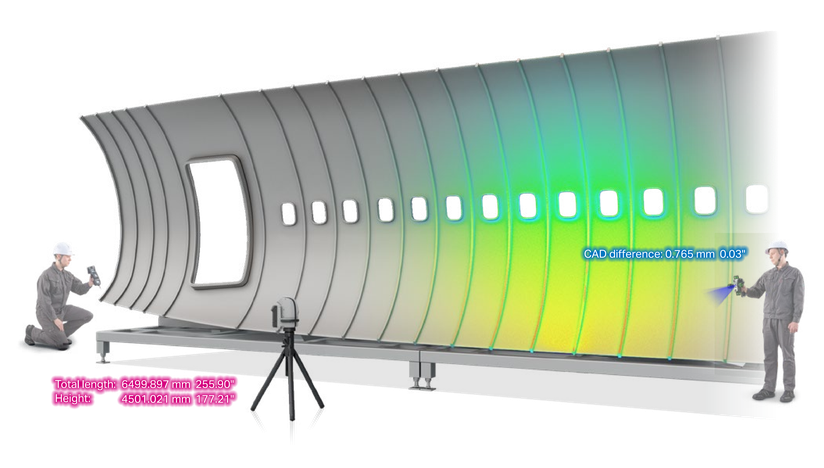

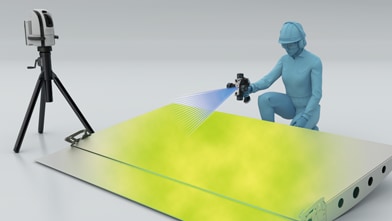

Large panel scanned by hand. CAD difference: 0.765 mm 0.03". Total length: 6499.897 mm 255.90". Height: 4501.021 mm 177.21"

Common Problems with Conventional SystemsScanning takes too long Solutions with the WM SeriesUnparalleled scanning speed

01Measurement range

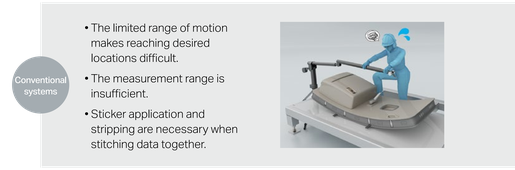

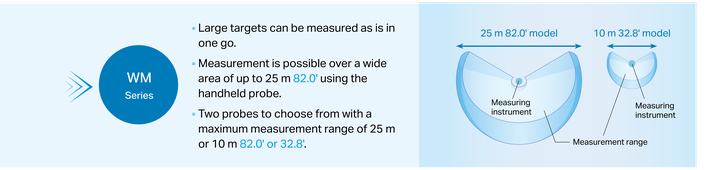

Conventional systems: The limited range of motion makes reaching desired locations difficult. The measurement range is insufficient. Sticker application and stripping are necessary. WM Series: Large targets can be measured as is in one go. Measurement is possible over a wide area of up to 25 m 82.0' using the handheld probe. Two probes: 25 m 82.0' or 10 m 32.8'.

02Product compatibility

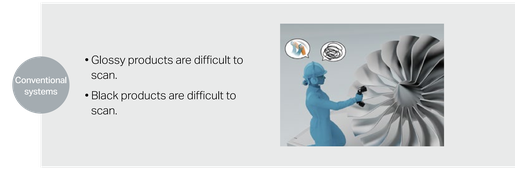

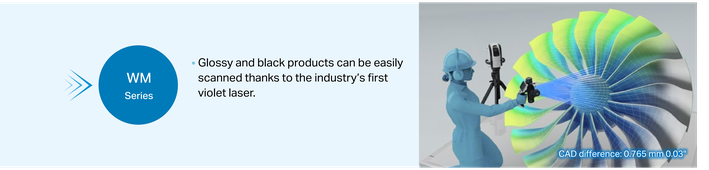

Conventional systems: Glossy products are difficult to scan. Black products are difficult to scan. WM Series: Glossy and black products can be easily scanned thanks to the industry’s first violet laser.

03Pre- and post-measurement preparation

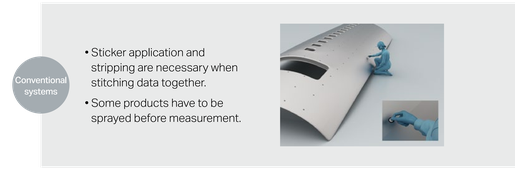

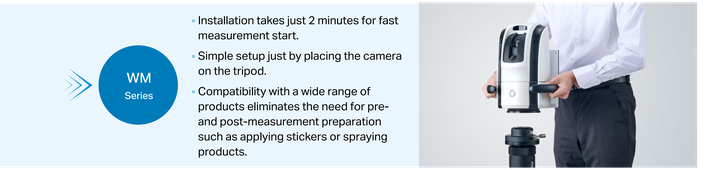

Conventional systems: Sticker application and stripping are necessary when stitching data together. Some products have to be sprayed before measurement. WM Series: Installation takes just 2 minutes. Simple setup just by placing the camera on the tripod. No pre- and post-measurement preparation such as applying stickers or spraying products.

04Repeated movements during scanning

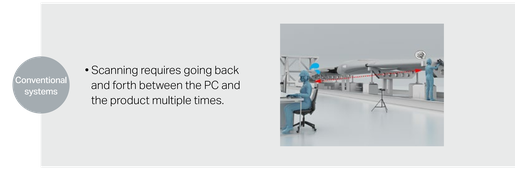

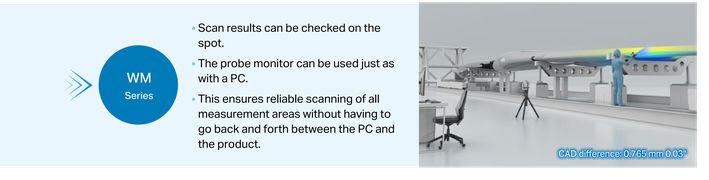

Conventional systems: Scanning requires going back and forth between the PC and the product multiple times. WM Series: Scan results can be checked on the spot. The probe monitor can be used just as with a PC, so no going back and forth between the PC and the product.

Specific Application Examples

CAD difference: 2.502 mm 0.10"

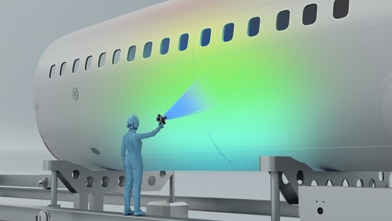

1Aircraft surface

  • • Aircraft surface shape measurement
  • • Rivet position measurement
  • • Strain measurement for joined and welded parts
CAD difference: 0.765 mm 0.03"

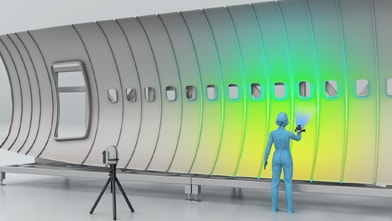

2Aircraft body

  • • Frame dimensional measurement
  • • Body outer plate shape/dimensional measurement
  • • Coordinate measurement referencing the center of the frame tip
CAD difference: 0.989 mm 0.04"

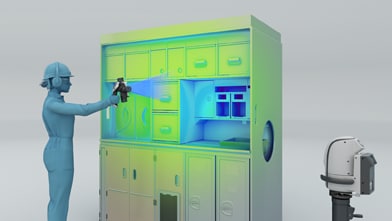

3Interior components

  • • Sheet dimensional and shape measurement
  • • Galley dimensional and installation accuracy measurement
  • • Interior panel dimensional measurement
  • • Stowage shape measurement
CAD difference: 2.325 mm 0.09"

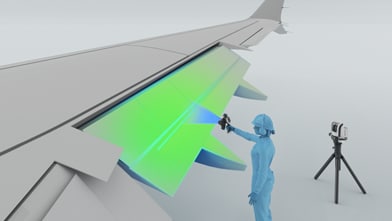

4 Wings

  • • Wing length measurement and curve shape measurement
  • • Wing surface roughness and distortion measurement
  • • Flap mounting position confirmation
  • • Aileron shape checking
CAD difference: 0.732 mm 0.03"

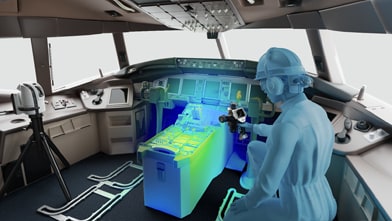

5Cockpit

  • • Dimensional and placement measurement within cockpit
  • • Exterior panel dimensional measurement
  • • Window frame assembly accuracy measurement
CAD difference: 0.503 mm 0.02"

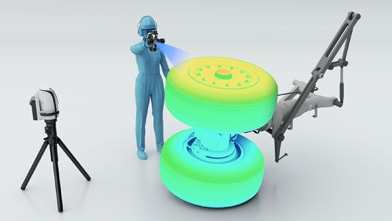

6Landing gear

  • • Landing gear dimensional and shape measurement
  • • Inter-component positional relationship measurement
  • • Curved surface and edge profile measurement
  • • Post-assembly deformation measurement
CAD difference: 0.082 mm 0.003"

7Aircraft doors

  • • Door exterior dimensional and shape measurement
  • • Mounting hole and hinge section position measurement
  • • Sealing surface flatness measurement
  • • Post-assembly deformation and strain measurement
CAD difference: 0.032 mm 0.001"

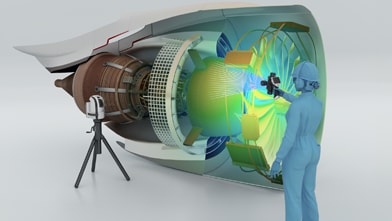

8Engines

  • • Turbine blade shape measurement
  • • Engine case dimensional measurement
  • • Long shaft dimensional measurement
  • • Wear and deterioration checking
CAD difference: 0.345 mm 0.01"

9Jigs

  • • Door assembly jig hole position measurement
  • • Frame assembly jig flatness measurement
  • • Fixing jig overall dimensional and shape measurement
CAD difference: 0.487 mm 0.02"

10Molds

  • • Highly accurate surface shape and dimensional measurement
  • • Defect and surface condition inspection
  • • Manufacturing process quality control
CAD difference: 0.921 mm 0.04"

11Gliders

  • • Wing section and wing surface shape measurement
  • • Body outer plate shape and dimensional inspection
  • • Control surface installation position measurement
CAD difference: 0.689 mm 0.03"

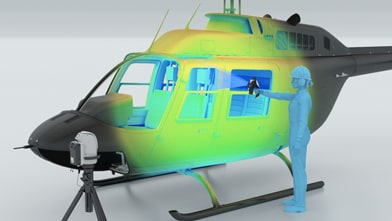

12Helicopters

  • • Aircraft frame and structural component dimensional inspection
  • • Large component positional relationship measurement
  • • On-site maintenance inspection

Contact us to learn more about how our advanced technology can help take your business to the next level.
