Reasons for Selecting the Wide Area CMM WM Series

You won’t go back to other measuring machines

Challenges of conventional equipment for measuring large products

Measurement of large products can be difficult. Here are some of the problems with conventional measuring equipment.

  • Hand tools, such as large calipers

    • Difficult to measure alone
    • Time-consuming to measure
    • Complex shapes cannot be measured

  • Arm-type CMMs

    • Limited measurement range
    • Limited portability and tricky to maneuver

  • Laser trackers

    • Difficult to handle
    • The distance between the object and the operating PC is far
    • Warm-up operation is required

  • Handheld scanners

    • Glossy or dark-colored objects require spraying, sealing, or other pre- and post-treatment

What is KEYENCE’s WM Series?

This KEYENCE measuring machine was developed for measuring large products. Dimension measurement with a contact probe and shape measurement with the laser scanning probe are available in a single unit. It is used in a wide range of industries, including the construction industry and manufacturing equipment as well as for measuring large items in the transportation and aviation industries.

  1. Reason 1 Single-person measurement

    Operating the system is easy, just touch the target with the probe. The touch probe makes it easy for just one person to measure large parts. The software is intuitive for not just dimensioning large parts, but also creating coordinates and inspecting GD&T elements.

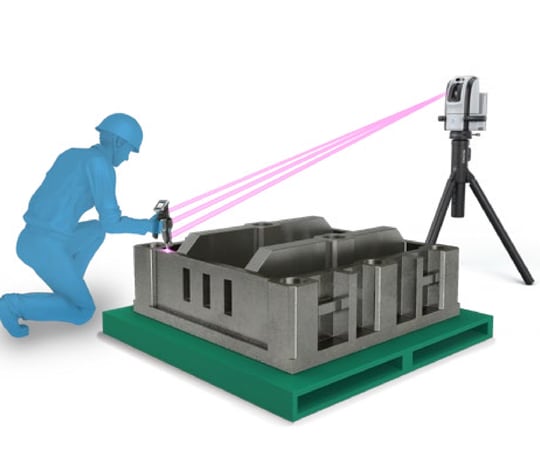

    One person touches the target with the probe while the main unit on a tripod tracks it

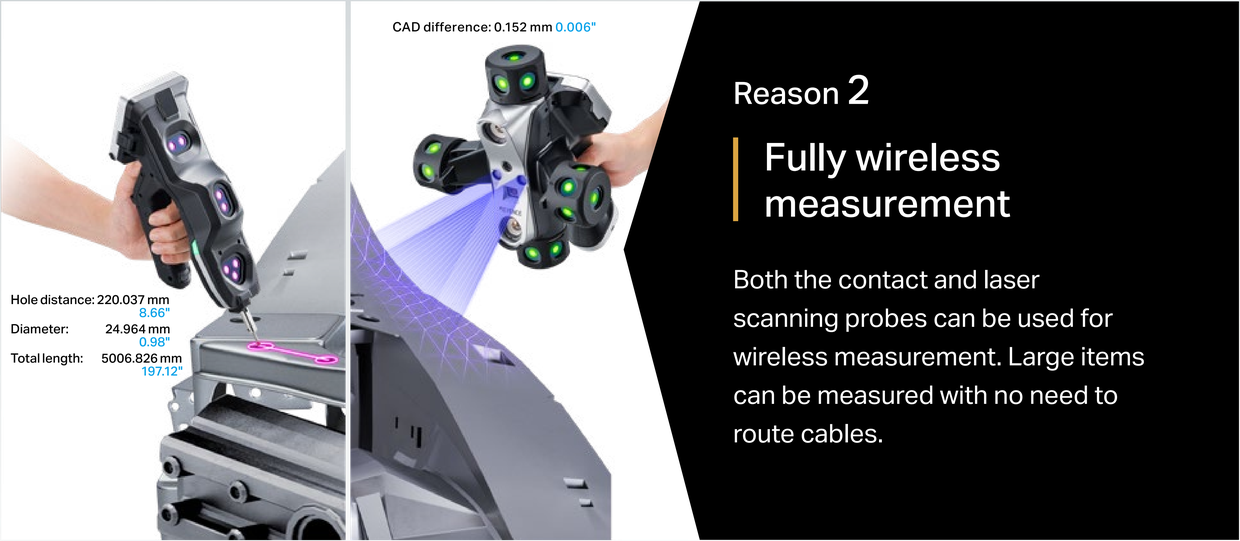

  2. Reason 2 Fully wireless measurement. Both the contact and laser scanning probes can be used for wireless measurement. Large items can be measured with no need to route cables.

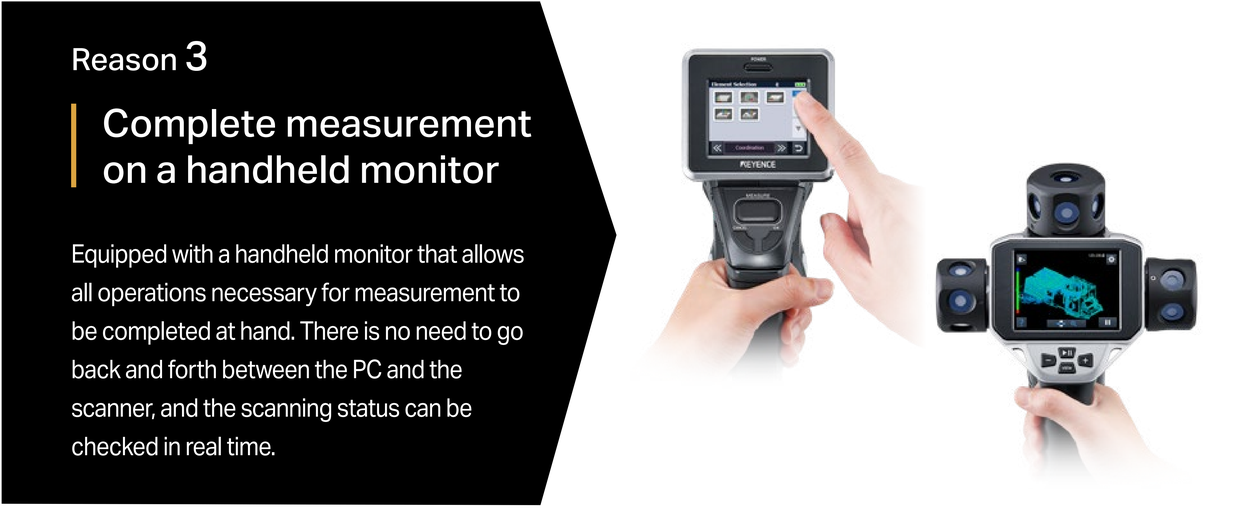

  3. Reason 3 Complete measurement on a handheld monitor. There is no need to go back and forth between the PC and the scanner, and the scanning status can be checked in real time.

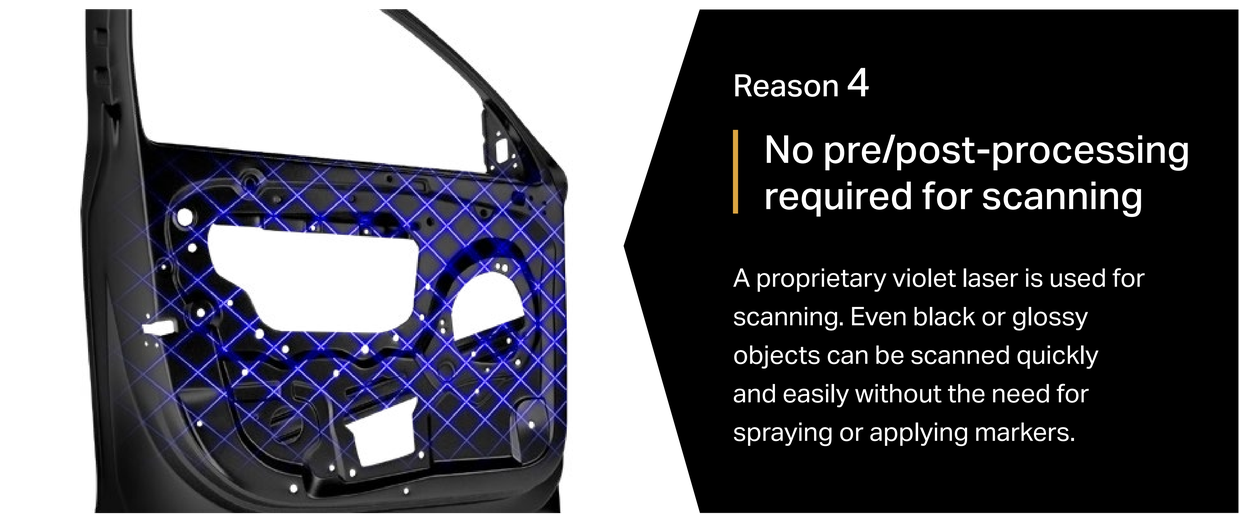

  4. Reason 4 No pre/post-processing required for scanning. Even black or glossy objects can be scanned quickly and easily without the need for spraying or applying markers.

The WM is recommended for measuring large items.

Use the WM for higher quality and faster manufacturing of large products. Simply touch the target with the probe. Wave the probe to scan the desired area.

Contact us to learn more about how our advanced technology can help take your business to the next level.
