Just place and press Two choices for fast dimensional measurements

Optical comparator, vernier caliper, and micrometer users

Fast and easy measurement over a large area

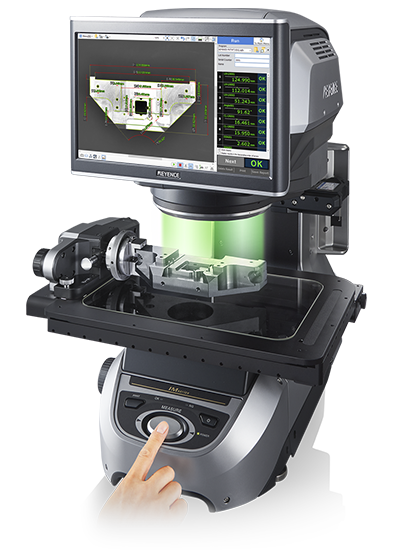

Image Dimension Measurement System IM-7500

Measuring microscope and optical CMM users

High-accuracy measurement regardless of user

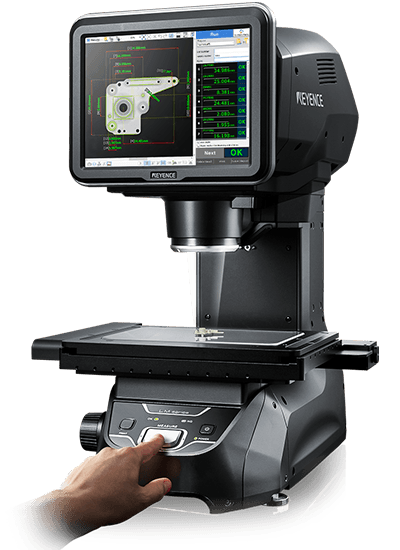

High Accuracy Image Dimension Measurement System LM-1000

Optical comparator, vernier caliper, and micrometer users

Fast and easy measurement over a large area

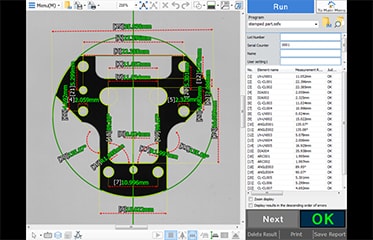

Measurement of 99 locations in just 3 seconds

Targets are captured using a lens with a wide field of view, and measurement is completed instantaneously.

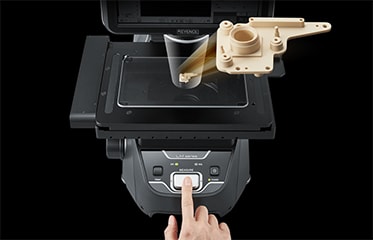

Uniform measurement results regardless of user

Place-and-press inspection means all users can obtain the same measurement results for any target.

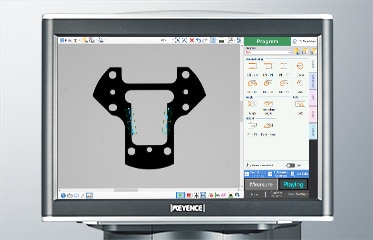

Easy configuration at the click of a button

Specifying measurement points is intuitive and simple, ensuring easy measurement even with single products.

Image Dimension Measurement System IM-7500

Measuring microscope and optical CMM users

High-accuracy measurement regardless of user

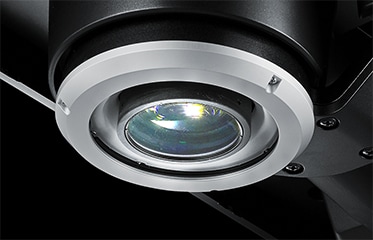

±0.1 μm high accuracy

The newly developed lens and stage ensure unprecedented accuracy.

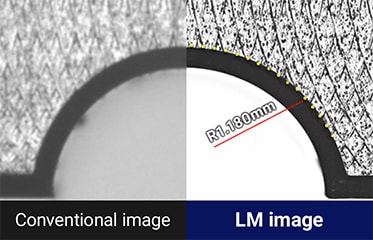

20 megapixels of high resolution

The built-in ultra-high-accuracy CMOS sensor captures measurement points with impressive clarity.

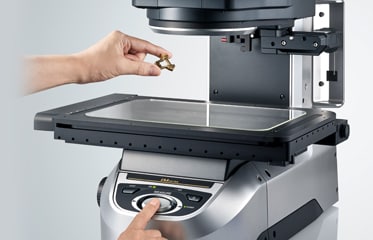

Measure instantly at the press of a button

Measurement of multiple locations is possible in seconds with no need for repositioning or focusing.

High Accuracy Image Dimension Measurement System LM-1000
