GL-R Wiring Example 2
NPN Wiring System: Optical Synchronization System (Transmitter: 5-Core Cable, Receiver: 11-Core Cable)
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 5 cores | Example) GL-RP5N |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5NM |
![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Not in use), Black (Not in use) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Blue (0 VDC)](/Images/gl-r_wiring_02-01_2093312.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | Not used | Not used |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5NM |

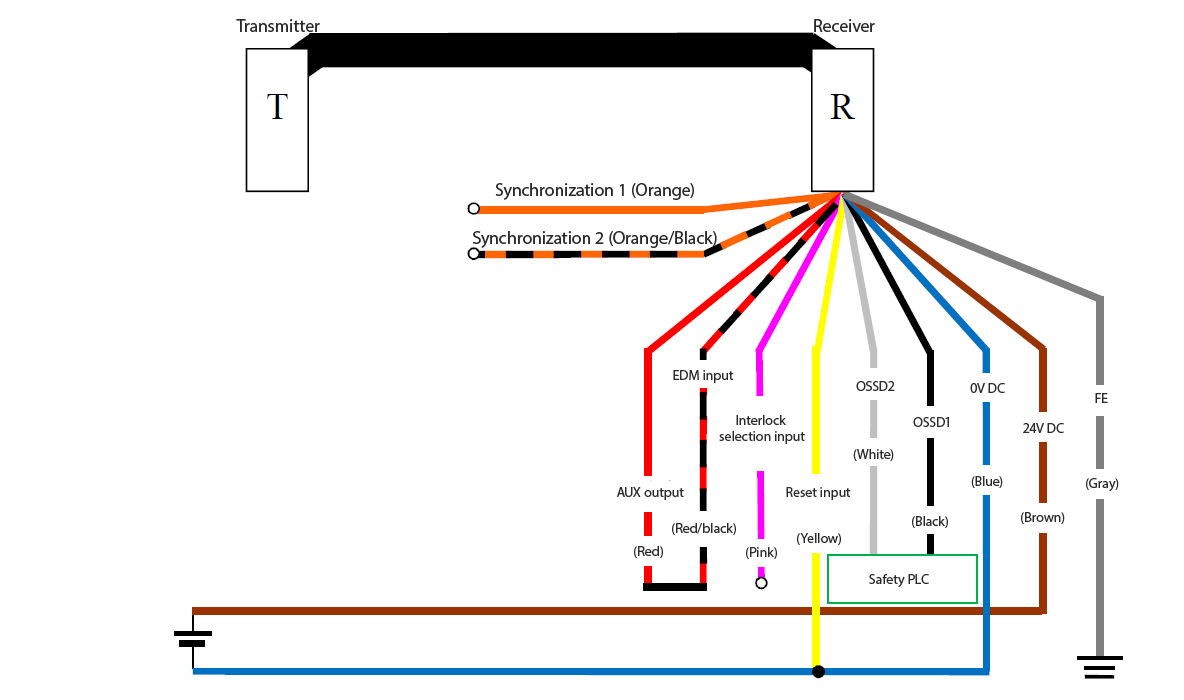

![Transmitter (T) - Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Blue (0 VDC)](/Images/gl-r_wiring_02-02_2093313.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
PNP Wiring System: Optical Synchronization System (Transmitter: 5-Core Cable, Receiver: 11-Core Cable)
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 5 cores | Example) GL-RP5P |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5PM |

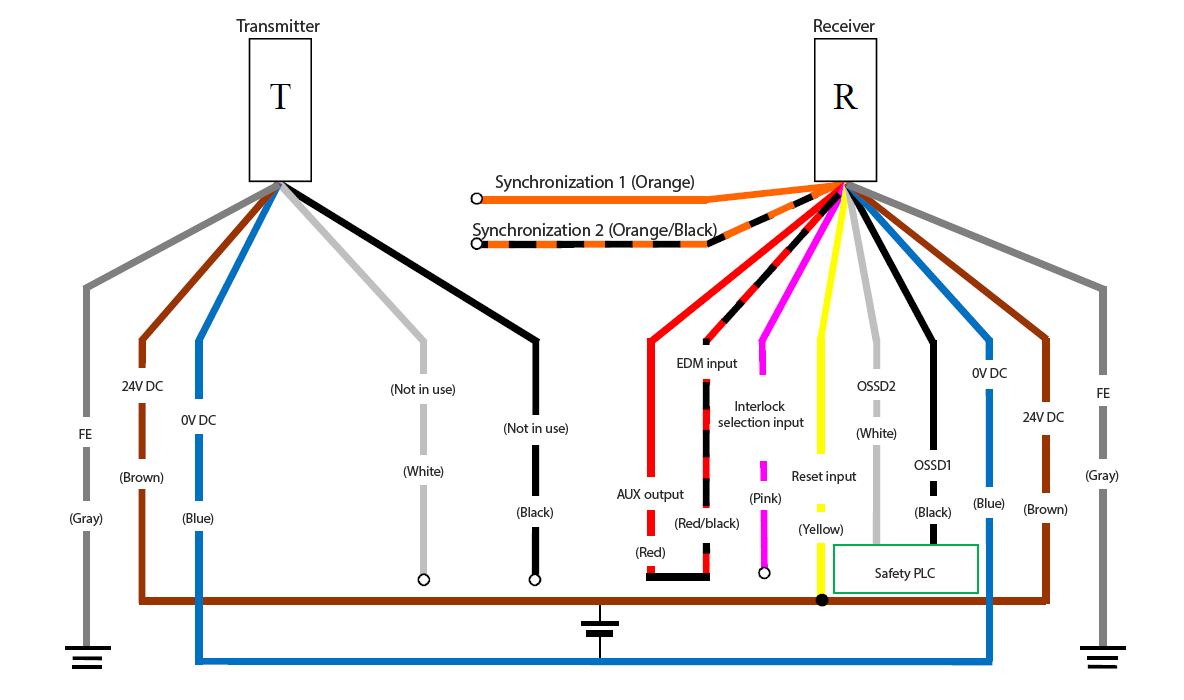

![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Not in use), Black (Not in use) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Brown (24 VDC)](/Images/gl-r_wiring_02-03_2093314.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | Not used | Not used |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5PM |
![Transmitter (T) - Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Brown (24 VDC)](/Images/gl-r_wiring_02-04_2093315.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
