GL-R Wiring Example 3
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 7 cores | Example) GL-RP5NS |
---|---|---|
Receiver cable | 7 cores | Example) GL-RP5NS |
![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Wait input), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1)](/Images/gl-r_wiring_03-01_2093316.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 7 cores | Example) GL-RP5NS |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5NM |

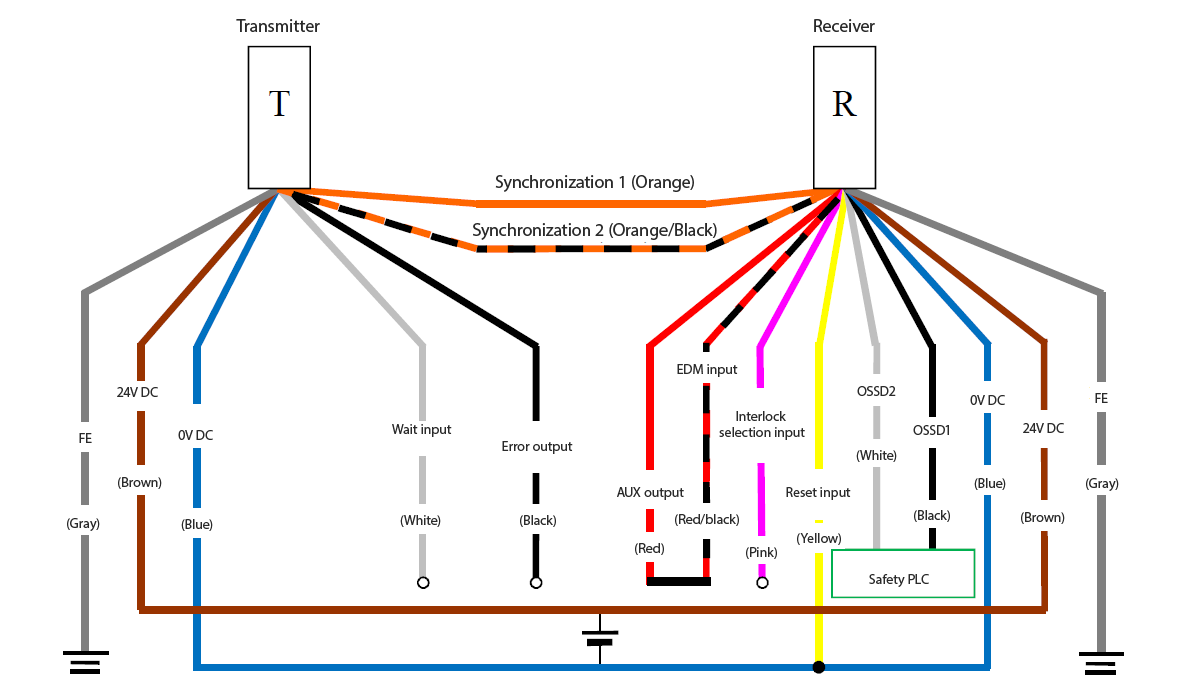

![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Wait input), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Blue (0 VDC)](/Images/gl-r_wiring_03-02_2093317.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
NPN Wiring System: Wire Synchronization System (Transmitter: 11-Core Cable, Receiver: 11-Core Cable)
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 11 cores | Example) GL-RP5NM |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5NM |

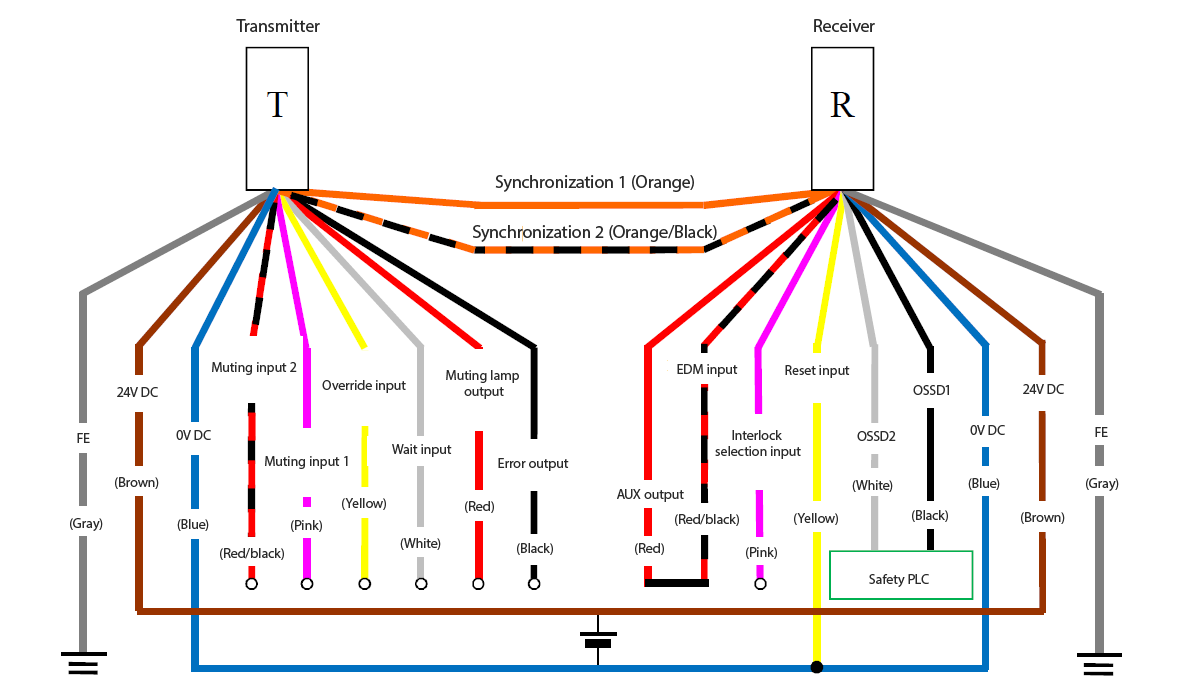

![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), Red/Black (Muting input 2), Pink (Muting input 1), Yellow (Override input), White (Wait input), Red (Muting lamp output), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Blue (0 VDC)](/Images/gl-r_wiring_03-03_2093318.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 7 cores | Example) GL-RP5PS |
---|---|---|
Receiver cable | 7 cores | Example) GL-RP5PS |

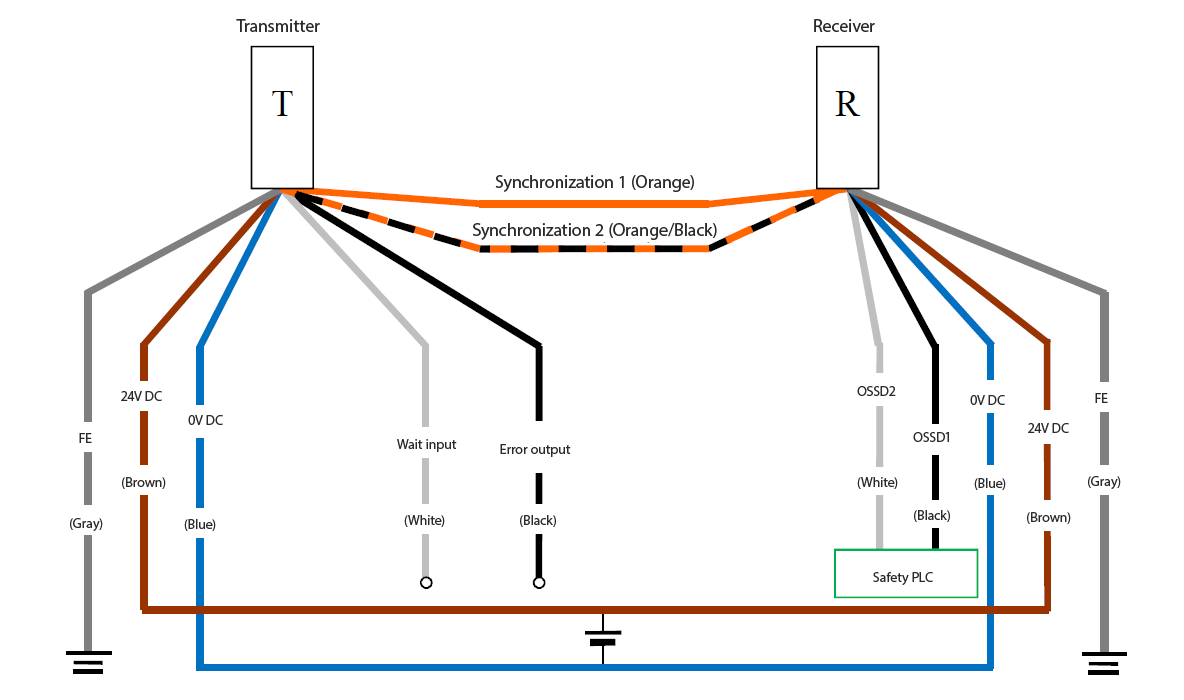

![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Wait input), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1)](/Images/gl-r_wiring_03-04_2093319.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 7 cores | Example) GL-RP5PS |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5PM |

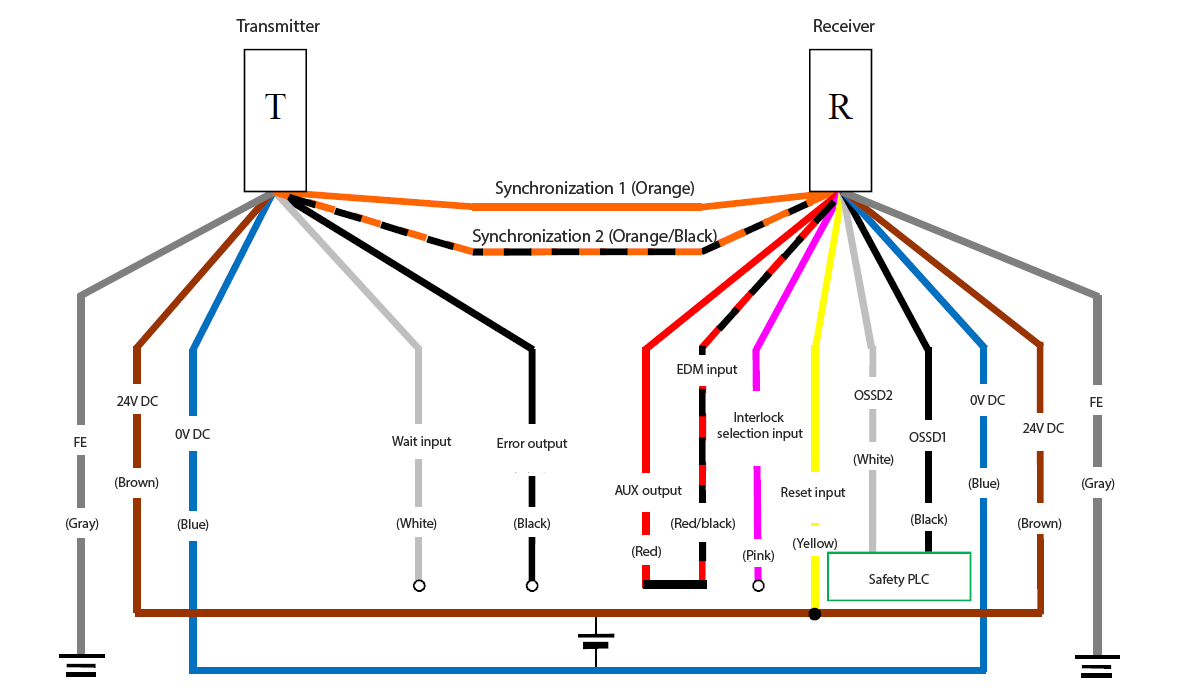

![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), White (Wait input), Black (Error output), Orange/Black (Synchronization 2), Orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Brown (24 VDC)](/Images/gl-r_wiring_03-05_2093320.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
PNP Wiring System: Wire Synchronization System (Transmitter: 11-Core Cable, Receiver: 11-Core Cable)
EDM | Not used |
---|---|
Start/Restart interlock | Automatic |
Transmitter cable | 11 cores | Example) GL-RP5PM |
---|---|---|
Receiver cable | 11 cores | Example) GL-RP5PM |

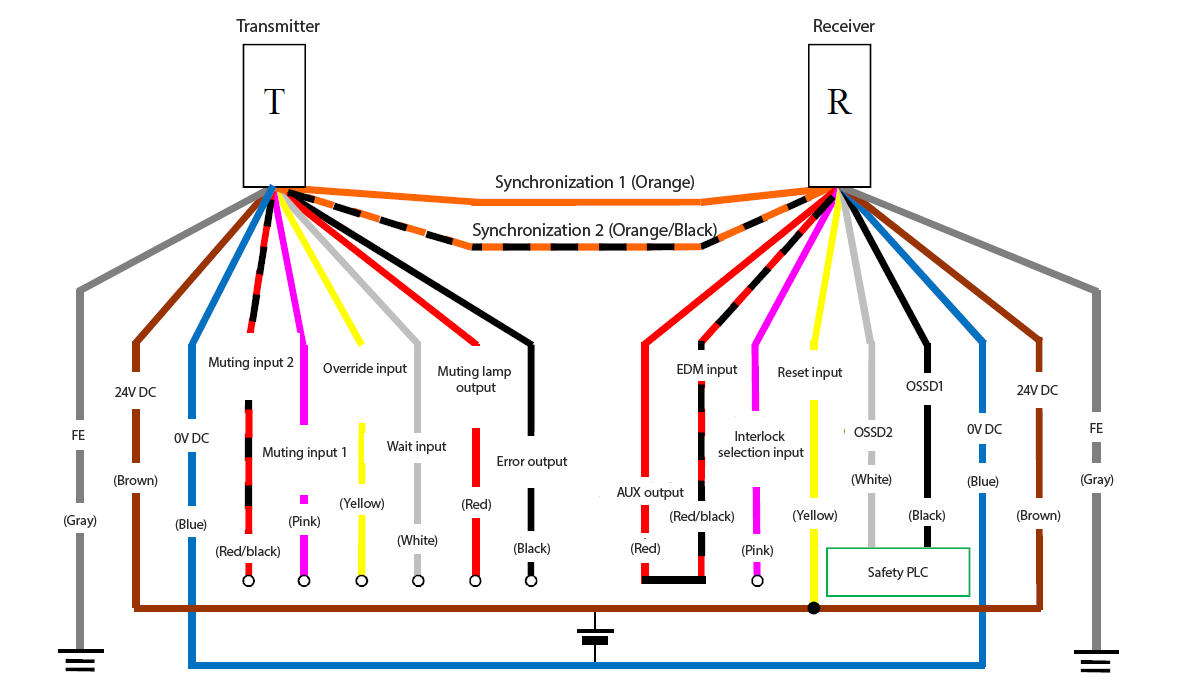

![Transmitter (T) - Gray (FE), Brown (24 VDC), Blue (0 VDC), Red/Black (Muting input 2), Pink (Muting input 1), Yellow (Override input), White (Wait input), Red (Muting lamp output), Black (Error output), Orange/black (synchronization 2), orange (Synchronization 1) | Receiver (R) - Orange (Synchronization 1), Orange/Black (Synchronization 2), Red (AUX output) - Red/Black (EDM input), Pink (Interlock selection input), Yellow (Reset input), White (OSSD2), Black (OSSD1), Blue (0 VDC), Brown (24 VDC), Gray (FE) | Safety PLC - White (OSSD2), Black (OSSD1) | Yellow (Reset input) - Brown (24 VDC)](/Images/gl-r_wiring_03-06_2093321.png)
- Independently insulate any unused wires. Do not bundle them together.
- A safety device such as a safety controller can be used in place of the safety PLC.
- Connect 0 V on the safety PLC to 0 V on the GL-R.
