GS-M Wiring Diagram Navigator

GS-M Wiring Example 7

Main Unit Model: GS-M53P/GS-M93P/GS-ML53P
PNP

OSSD operation Open/close link mode
Interlock function Manual
EDM function Not used
Applicable model Main unit
Hinged door, advanced function type GS-M53P
GS-M93P
Sliding door, advanced function type GS-ML53P

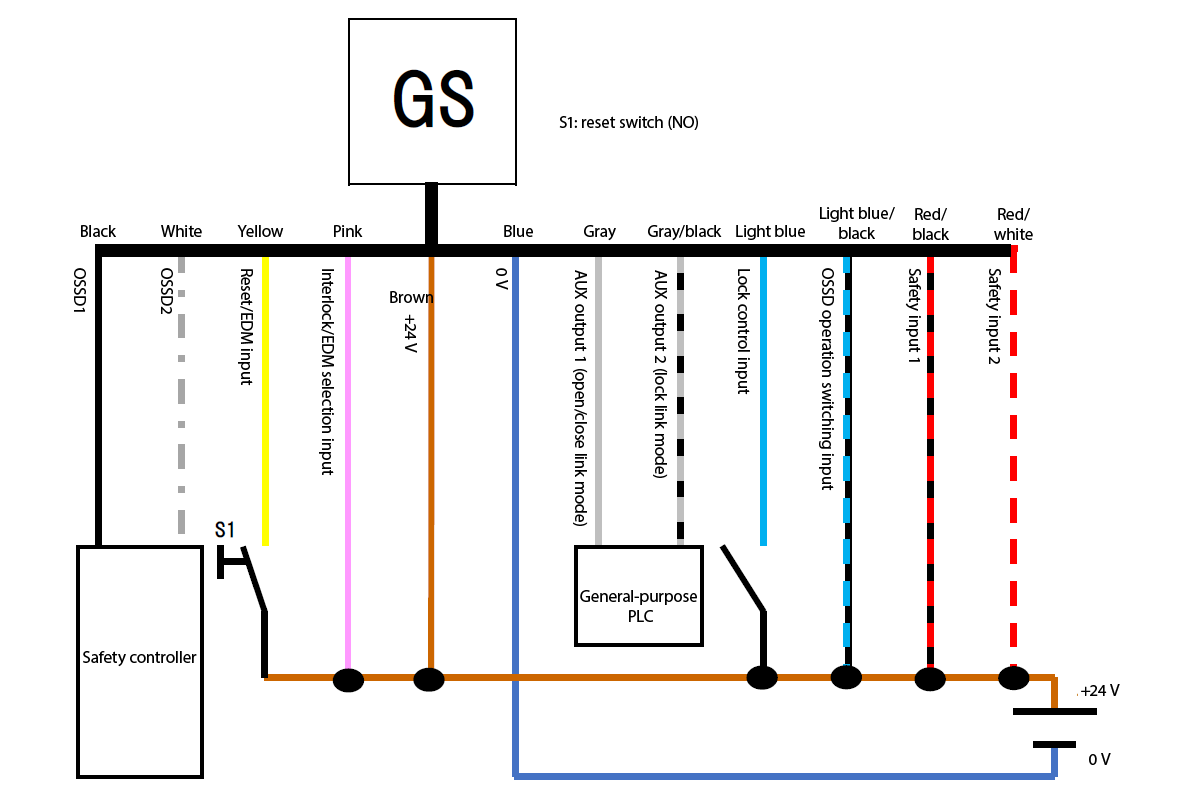

GS - black, white, yellow, pink, brown, blue, gray, gray/black, light blue, light blue/black, red/black, red/white | Safety controller - black, white | yellow - S1 - brown | General-purpose PLC - gray, gray/black | S1: reset switch (NO)
Required Pin Color Icon above Function
1 Brown +24 V
3 Blue 0 V
4 Black OSSD1
7 White OSSD2
2 Red/black Safety input 1
6 Red/white Safety input 2
5 Gray AUX output 1 (open/close link mode)
9 Gray/black AUX output 2 (lock link mode)
10 Light blue Lock control input
12 Light blue/black OSSD operation switching input
11 Yellow Reset/EDM input
8 Pink Interlock/EDM selection input
  • The required wiring ensures that the unit can be operated without entering the error state.
  • Independently insulate any unused wires. Do not bundle them together.
