GS-M Wiring Example 14

Main Unit Model: GS-M50P
PNP

OSSD operation Open/close link mode
Interlock function Automatic only
EDM function N/A
Applicable model Main unit
Hinged door, terminal block GS-M50P

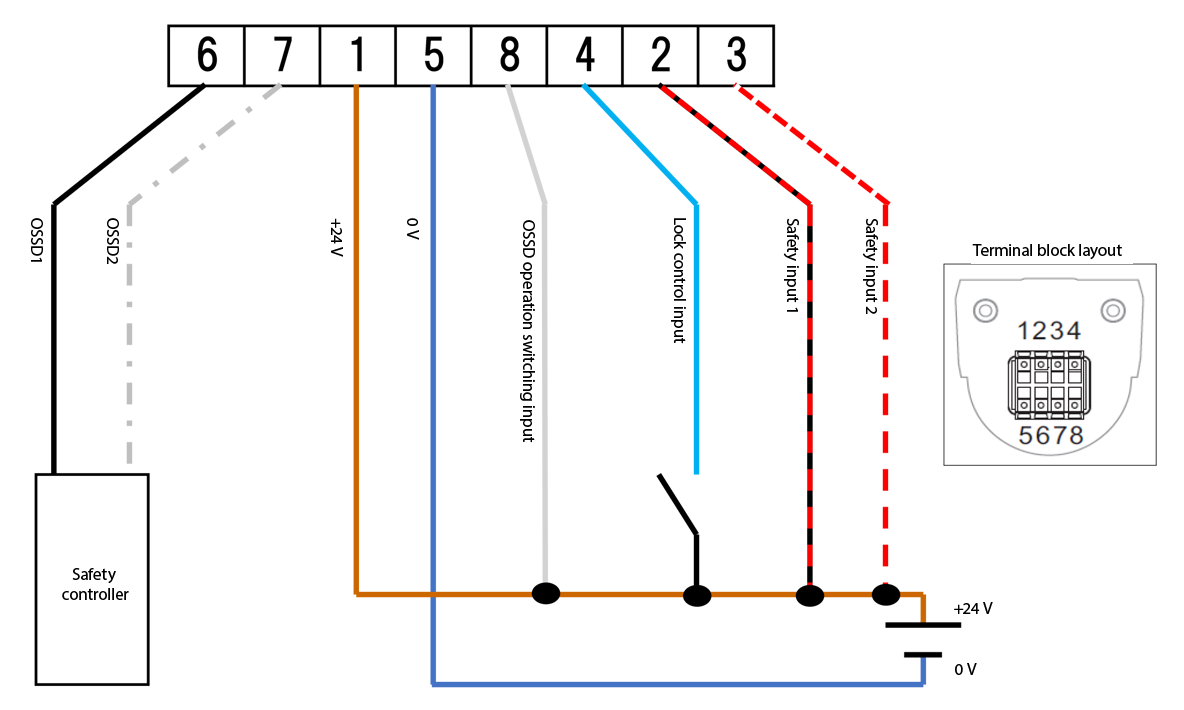

Terminal block layout: 1, 2, 3, 4, 5, 6, 7, 8 | Safety controller - OSSD1, OSSD2
Required Pin Color Icon above Function
1 Brown +24 V
5 Blue 0 V
6 Black OSSD1
7 White OSSD2
2 Red/black Safety input 1
3 Red/white Safety input 2
8 Gray OSSD operation switching input
4 Light blue Lock control input
  • The required wiring ensures that the unit can be operated without entering the error state.
  • The icons in the above figure match the wire colors of the connector type. You do not have to use wires of the same colors.
