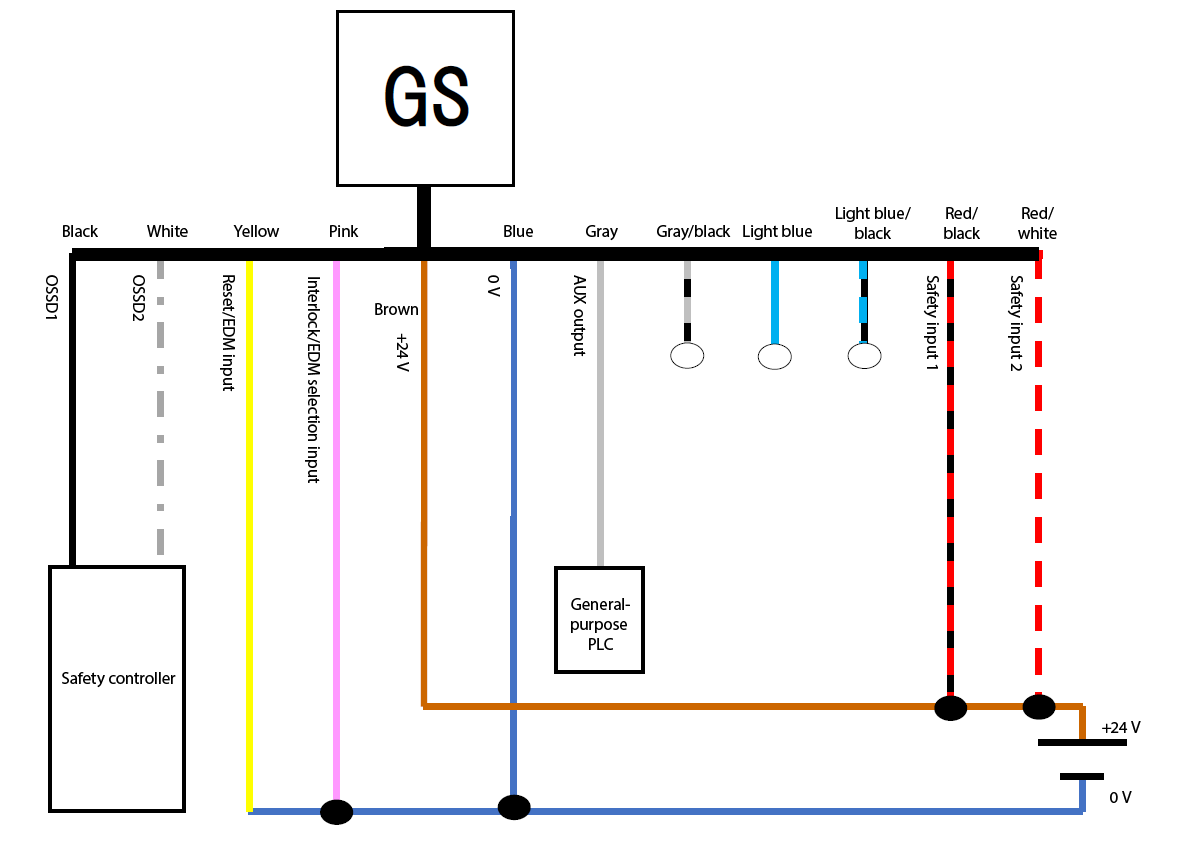

GS Wiring Example 15

Main Unit Model: GS-13PC/GS-13P5
PNP

OSSD operation Open/close link mode
Interlock function Automatic
EDM function Not used
Applicable model Main unit Cable
Non-contact type GS-13PC GS-P12C5, 10, 20
No extension cable
GS-13P5 Drawn from the main unit
GS - black, white, yellow, pink, brown, blue, gray, gray/black, light blue, light blue/black, red/black, red/white | Safety controller - black, white | General-purpose PLC - gray
Required Pin Color Icon above Function
1 Brown +24 V
3 Blue 0 V
4 Black OSSD1
7 White OSSD2
2 Red/black Safety input 1
6 Red/white Safety input 2
5 Gray AUX output
11 Yellow Reset/EDM input
8 Pink Interlock/EDM selection input
9 Gray/black No function
GS-13PC only
Unused
10 Light blue No function
GS-13PC only
Unused
12 Light blue/black No function
GS-13PC only
Unused
  • The required wiring ensures that operations can be checked without errors.
  • Independently insulate any unused wires. Do not bundle them together.
