Main Unit Model: GS-10PC
PNP
| OSSD operation | Open/close link mode |
|---|---|
| Interlock function | Automatic only |
| EDM function | N/A |
| Applicable model | Main unit | Cable |
|---|---|---|
| Non-contact type | GS-10PC | GS-P5C5, 10 For details on the extension cable, see the catalog. |

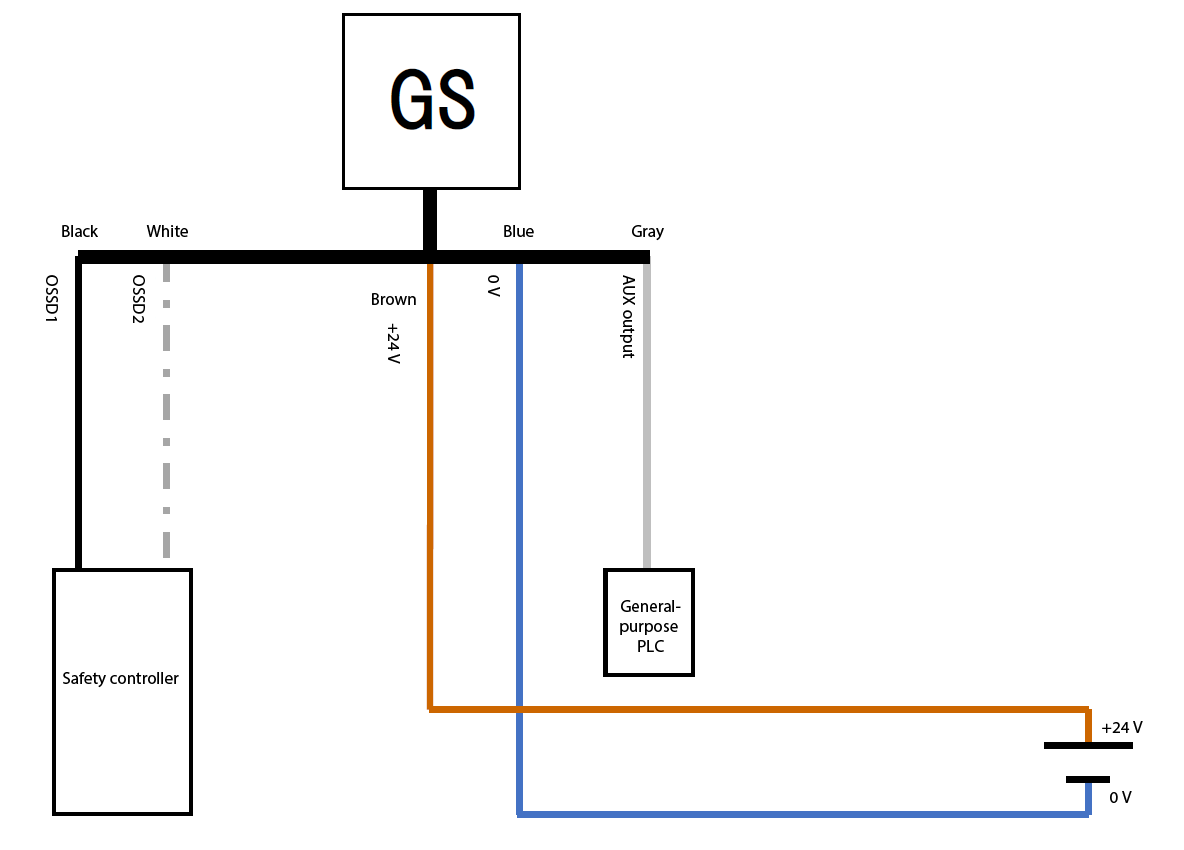

| Required | Pin | Color | Icon above | Function |
|---|---|---|---|---|
| 1 | Brown |  |
+24 V | |
| 3 | Blue |  |
0 V | |
| 4 | Black |  |
OSSD1 | |
| 2 | White |  |
OSSD2 | |
| 5 | Gray |  |
AUX output |
- The required wiring ensures that operations can be checked without errors.
- Independently insulate any unused wires. Do not bundle them together.
