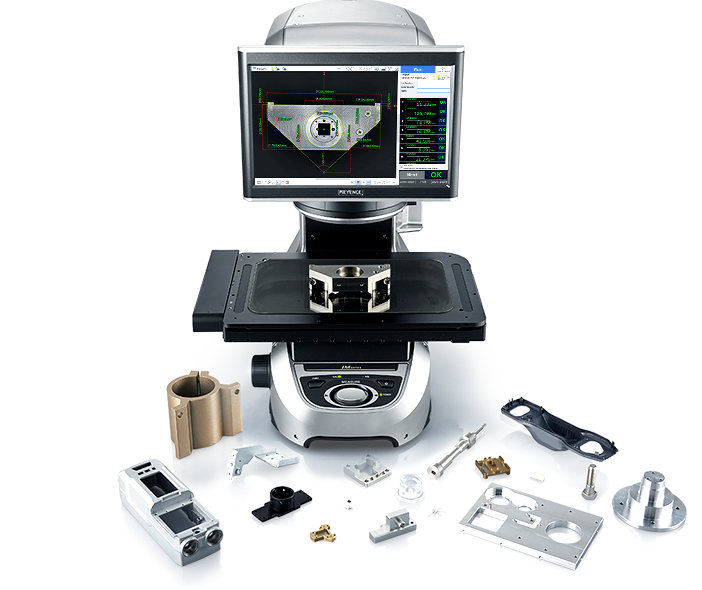

NEW March 2021 Release Image Dimension Measurement System IM-8000 Series INSTANT MEASUREMENT

For detailed measurement with higher accuracy, Click here.

360° multi-surface measurement

Three Times the Detection Performance of Conventional Models

20-megapixel CMOS Sensor,
Three Times More Than Conventional Systems

New Algorithm
for More Stable Edge Detection

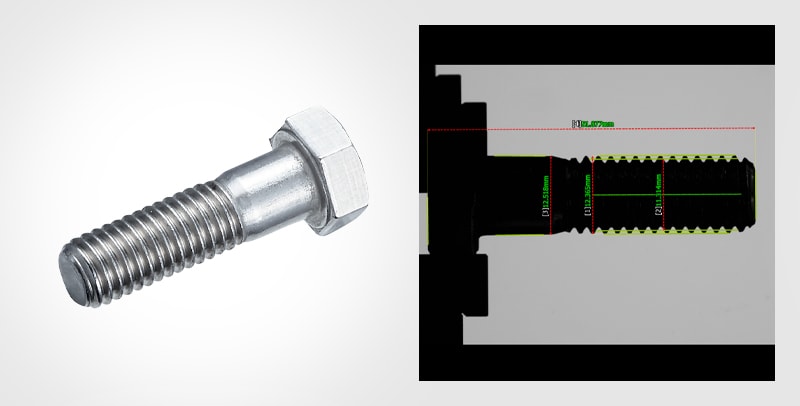

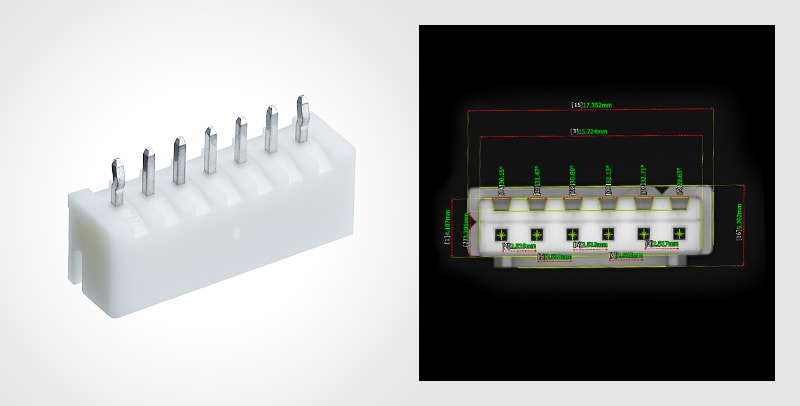

Equipped with a 20-megapixel CMOS sensor for crisp, clear resolution;
enabling it to capture and accurately measure fine edges that were previously difficult to see.

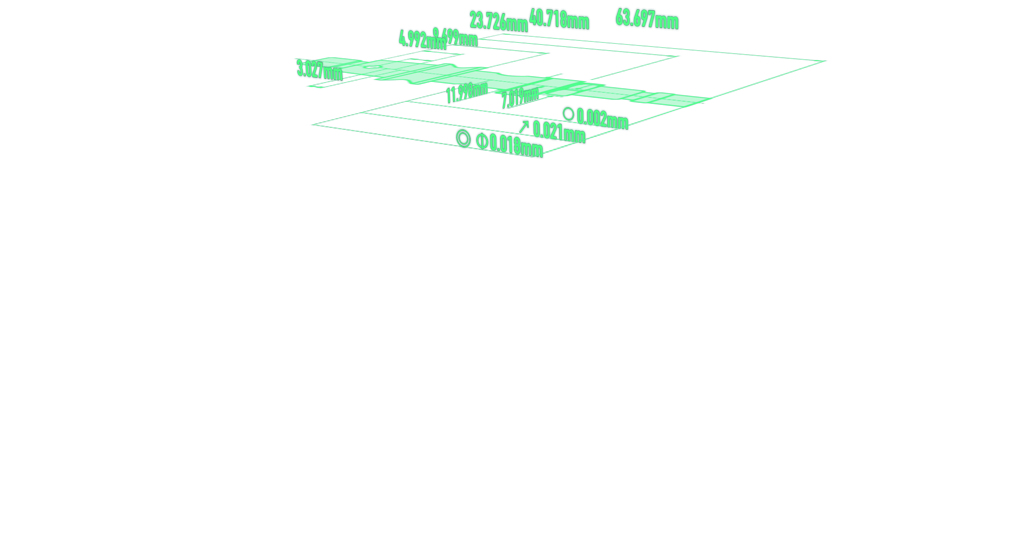

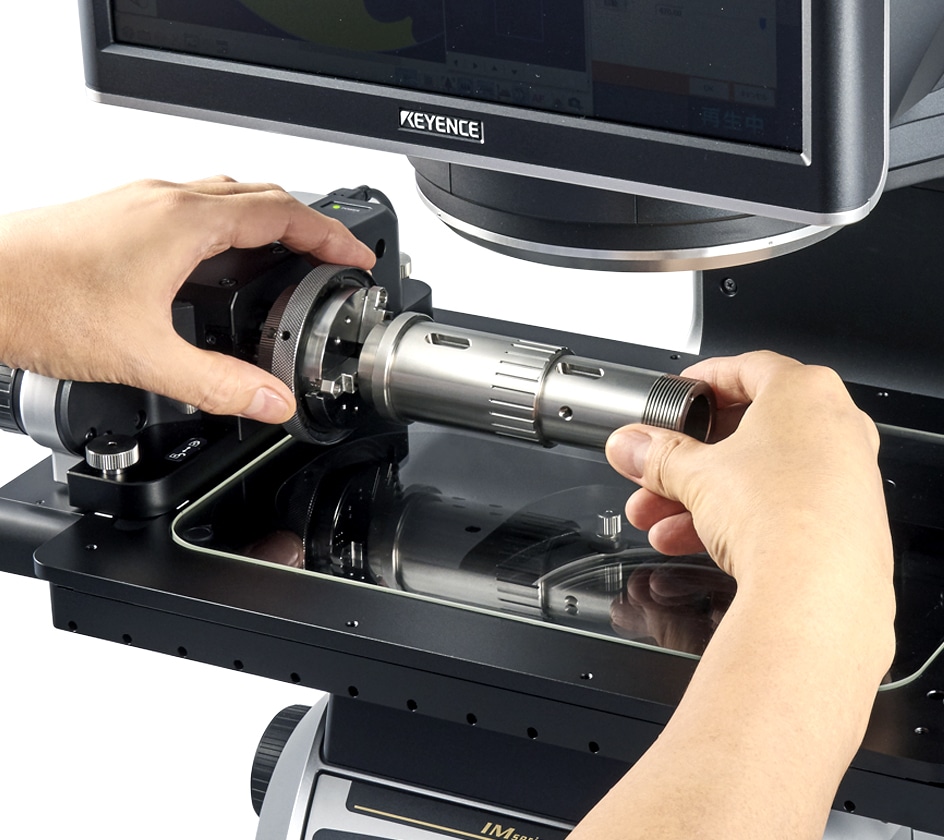

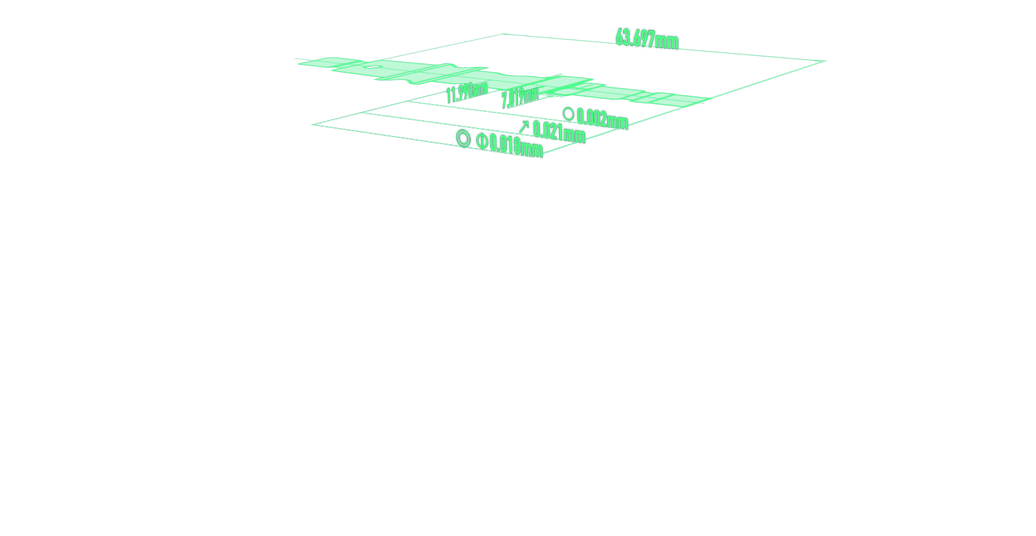

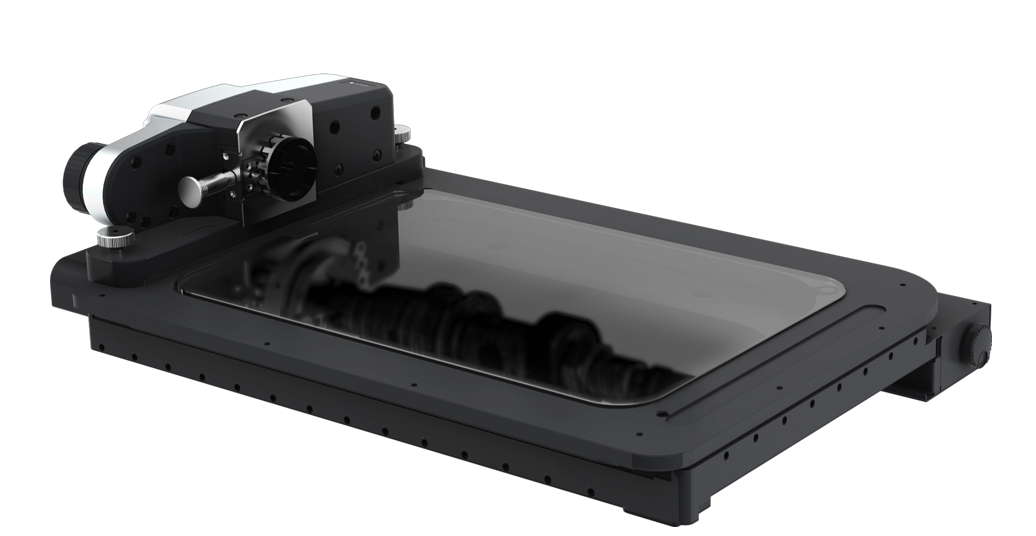

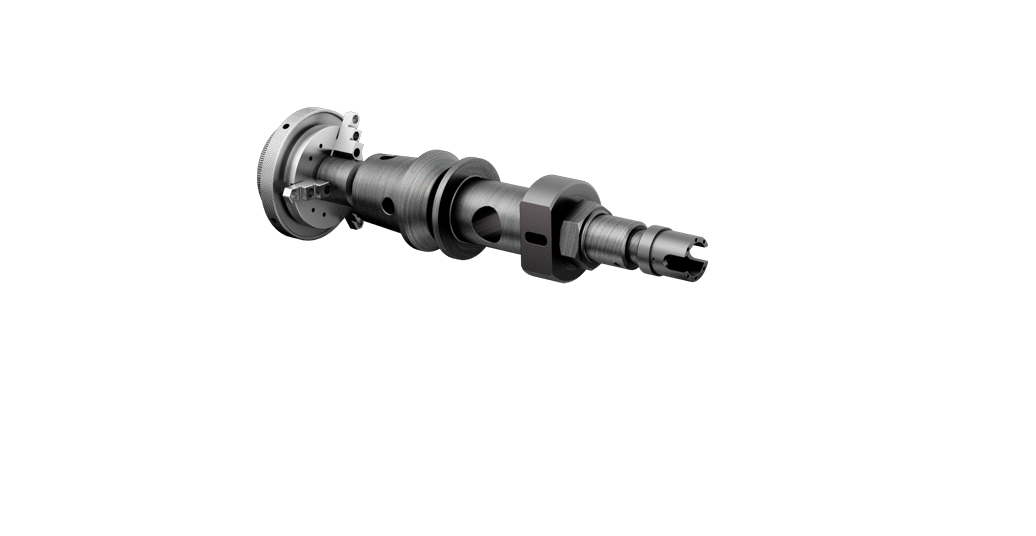

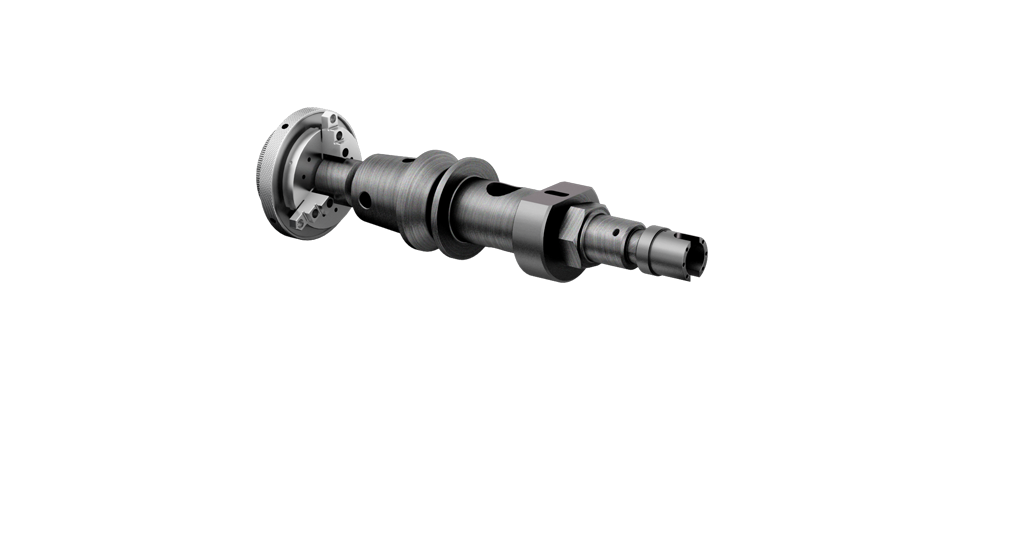

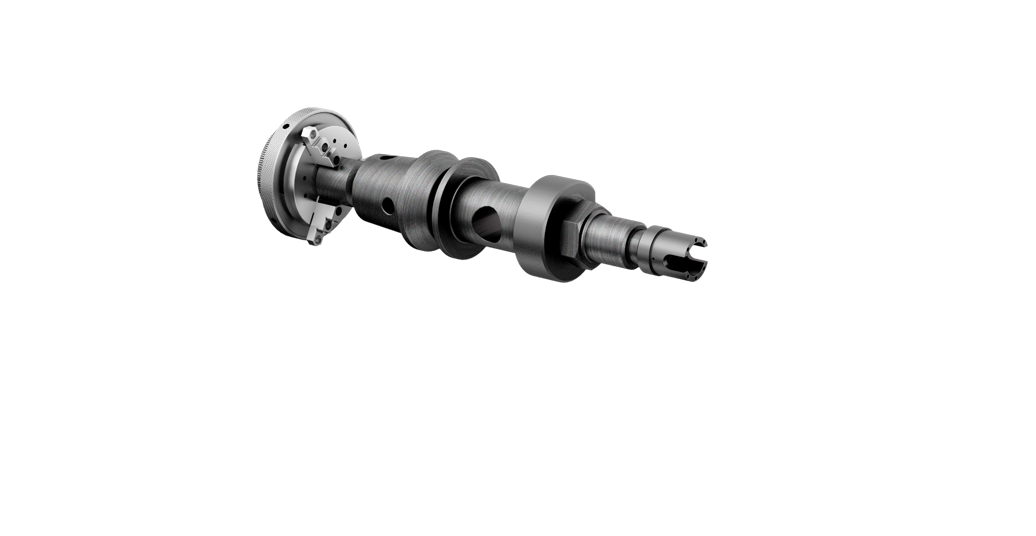

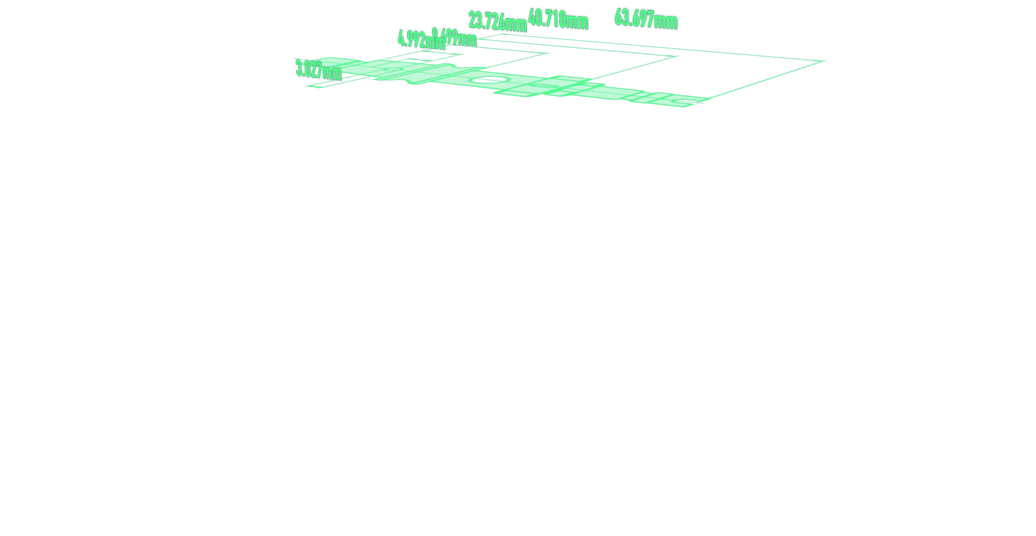

360° Rotary Fixture for Multi-surface Measurement

Simply fixture the part in the chuck. The unit automatically measures multiple surfaces while rotating the object; a jig is not required and complex, multi-surface measurements are taken in seconds.

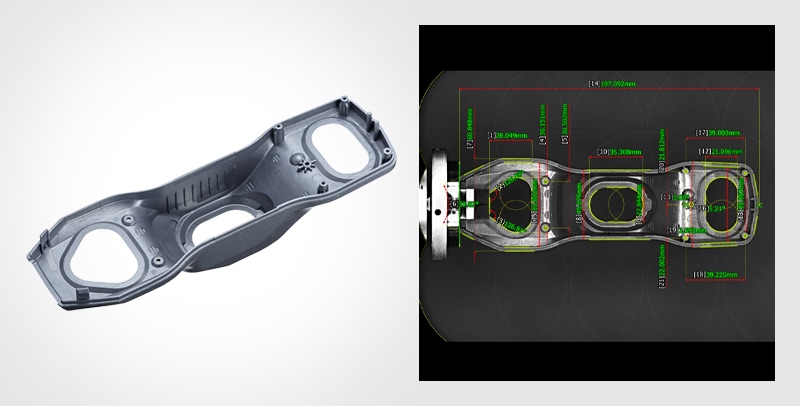

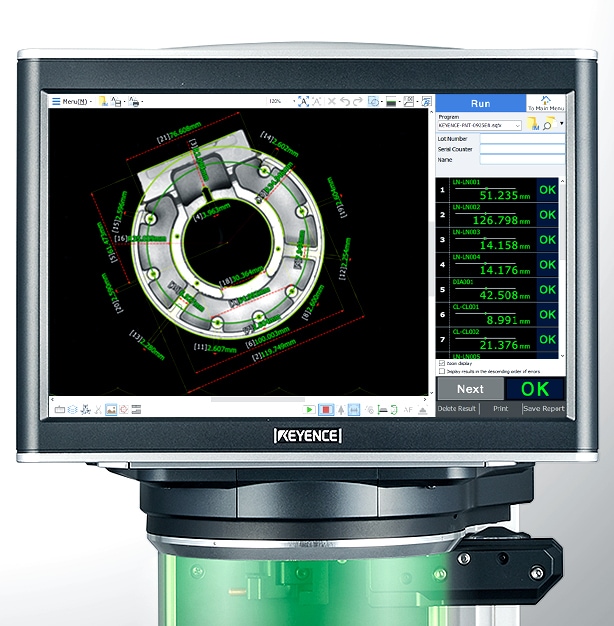

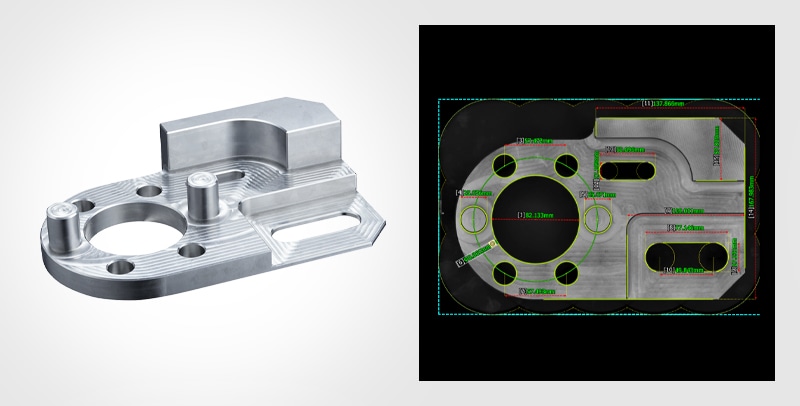

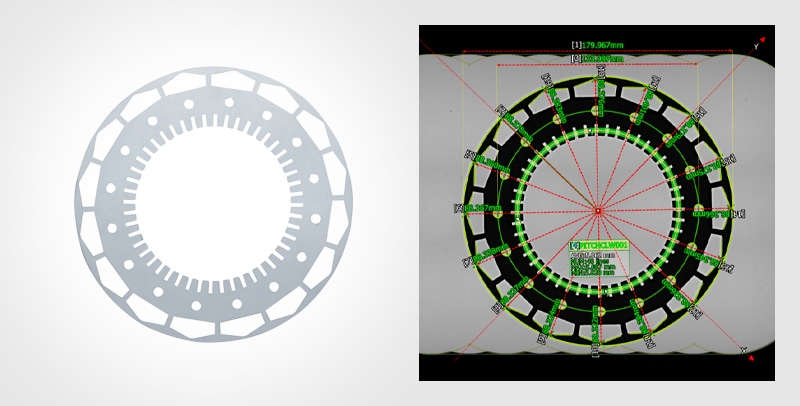

Automatic Measurement on up to 300 Part Features in Seconds

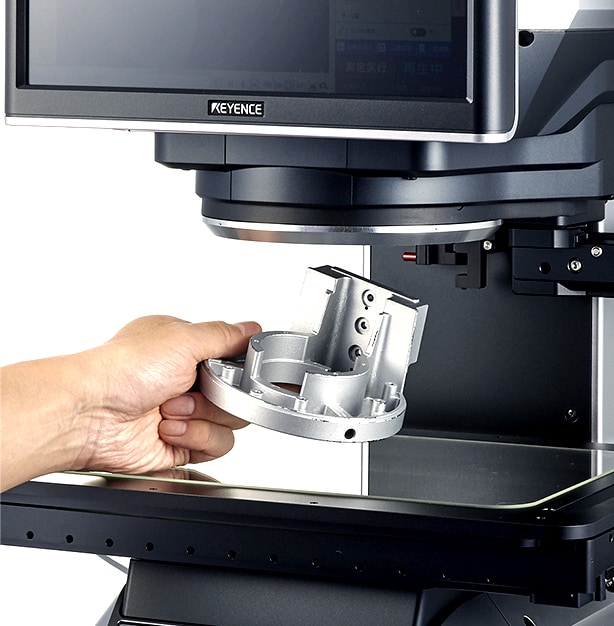

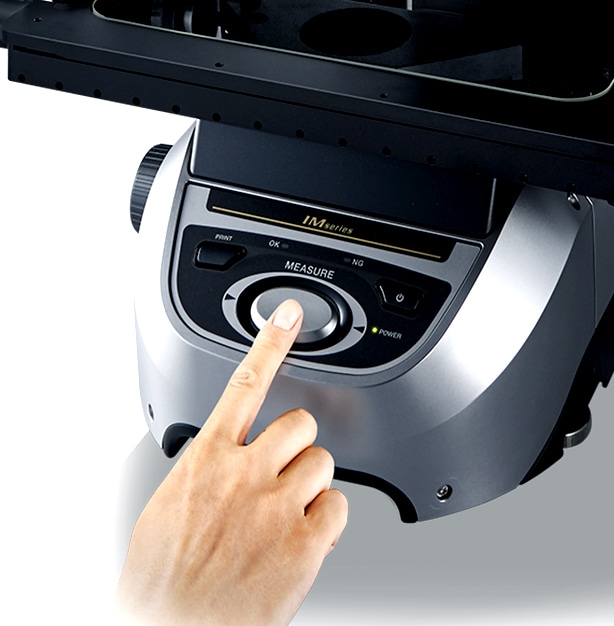

Anyone can measure a part by simply placing it on the stage and pressing one button.
Regardless of operator skill, the unit provides accurate and repeatable measurements instantly.

01
02
03

View catalog for more details.

You can also contact us at: 1-888-539-3623
