Expanding Robot Applications
with Height Data 3D Laser Snapshot Sensor LJ-S8000 Series

NEW Revolutionizing Versatile Applications with 3D Imaging for Robots

  • Inspect with End of Arm, Position Correction and Guidance
  • Laser x 3D – High Precision and Robustness
  • Adaptive and Various Applications

Robot + 3D Laser Snapsot Sensor Application Examples

  • Dimensional Measurement
  • Position Correction
  • Weld Seam Tracking
  • Sealing Application
  • Machine Tending

  • Door Assembly Position Correction

  • Hole Inspection with Machine Tending

  • Stacked Trays Inspection and Position Correction

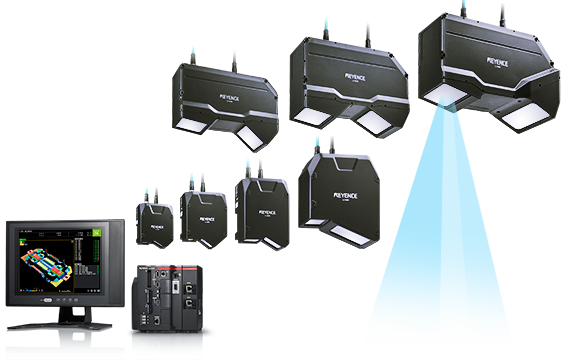

Sensor Head Lineup Supporting Various Applications

  • LJ-S015

    Repeatability
    Z (height): 0.3 µm 0.000012″

  • LJ-S025

    Repeatability
    Z (height): 0.4 µm 0.000016″

  • LJ-S040

    Repeatability
    Z (height): 0.5 µm 0.000020″

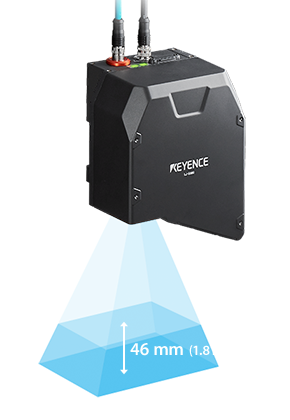

  • LJ-S080

    Repeatability
    Z (height): 1 µm 0.000039″

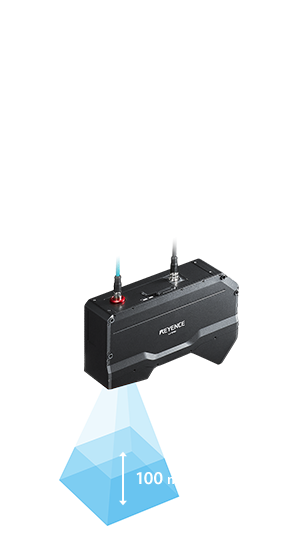

  • NEWLJ-S160

    Repeatability
    Z (height): 3 µm 0.000118″

  • NEWLJ-S320

    Repeatability
    Z (height): 5 µm 0.000197″

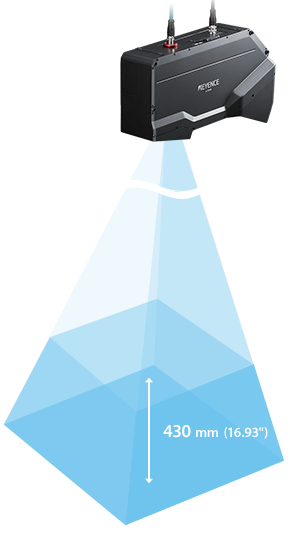

  • NEWLJ-S640

    Repeatability
    Z (height): 10 µm 0.0004″

LJ-S8000 Series

Hassle-Free 3D Inspection
3D Laser Snapshot Sensor

Learn more in the catalog

You can also contact us at: 1-888-539-3623
