3D Inspection and Measurement SystemNo Data DropoutHigh Accuracy XYZQuick 3D Image Setup NEW Inline 3D Appearance and Dimension Inspection Image Processing System3D Vision Series

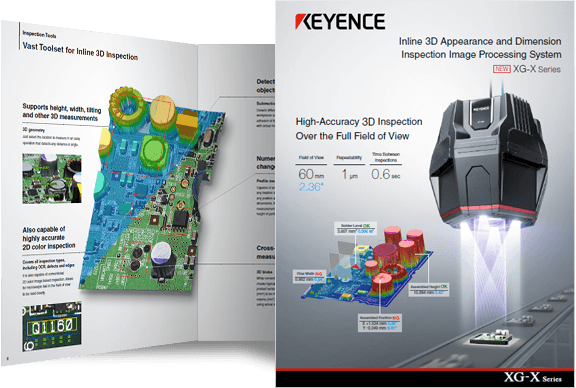

View Catalog

Extremely accurate 2D & 3D inspection and measurement over the entire field of view

Field of View
60 mm 2.36"
Repeatability
1 μm
Time Between Inspections
0.6 sec

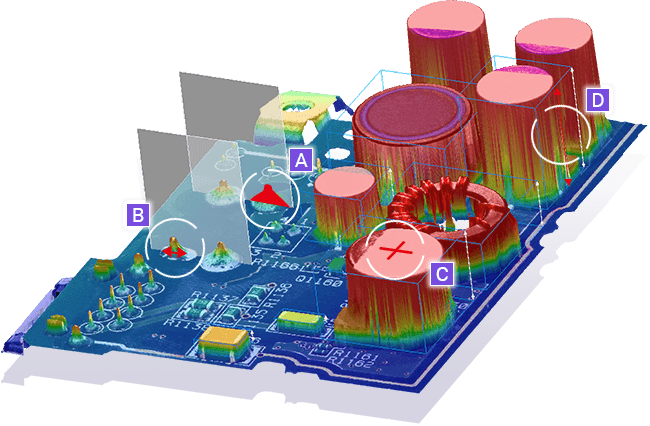

A
Solder Level OK3.607 mm2 0.006 in2
B
Fillet Width NG0.982 mm 0.04"
C
Assembled Position NGX +1.524 mm 0.06"
Y -0.249 mm 0.01"
D
Assembled Height OK10.894 mm 0.43"

View Catalog

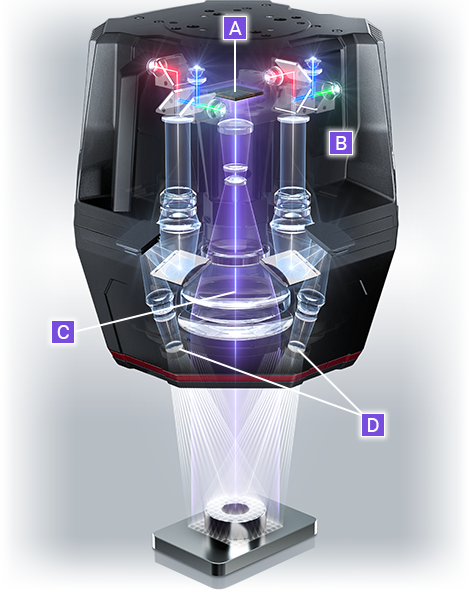

Hardware designed for high accuracy

A
9.44 megapixel CMOS image sensor for high-resolution images
B
In-head parallel processing that enables high-speed inline inspection
C
Large-diameter telecentric lens for high-accuracy full-scale inspection
D
4-transmitter RGB projector that imaging with no blind spots over the entire field of view

View Catalog

Stable inline 3D inspection for a variety of applications and industries

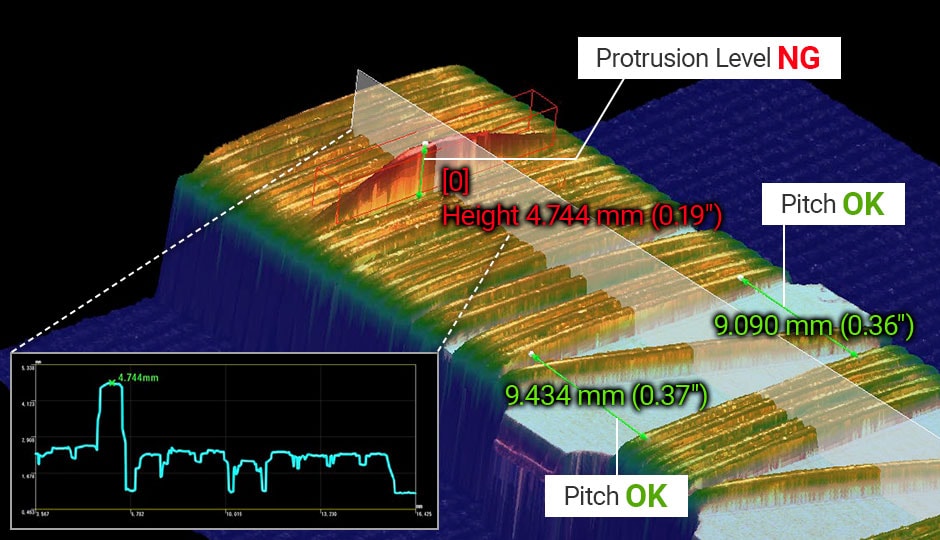

Coiled Wire 3D inspection and measurement

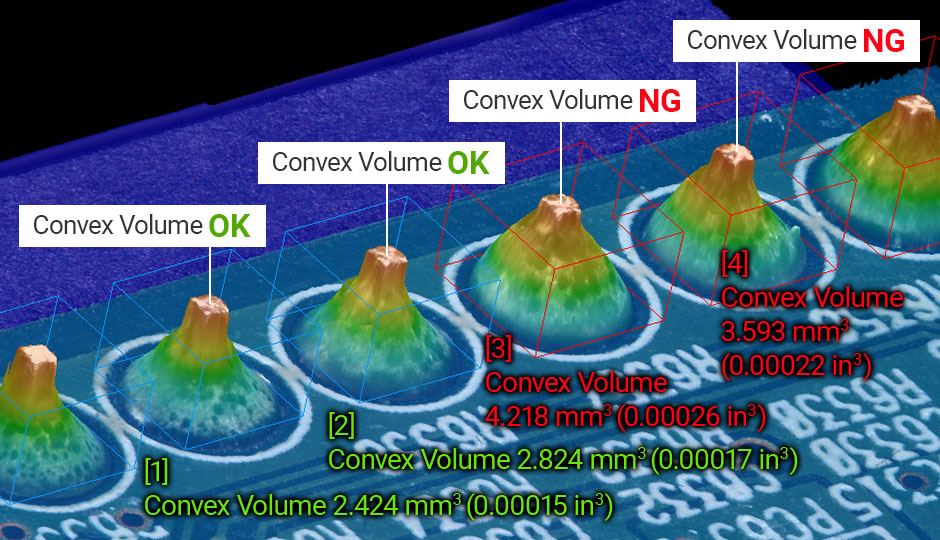

Solder Appearance Inspection

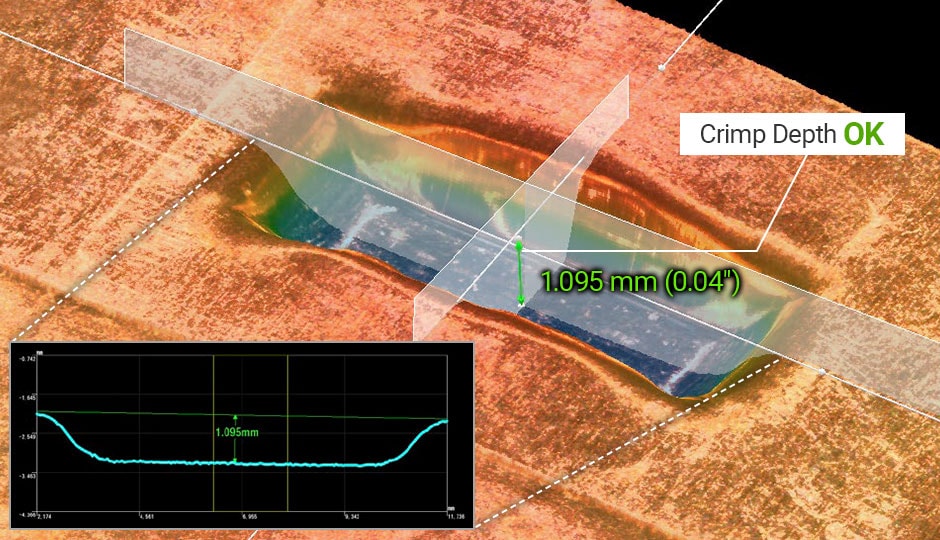

Crimp Dimension Inspection

Resin Molding Appearance Inspection

View catalog for more details.
