Checking the PC IP address

Be sure to check the PC IP address before connecting with the head.

Procedure details

  1. On the PC, click [Settings] and [Network & Internet].

  1. Click [Ethernet].

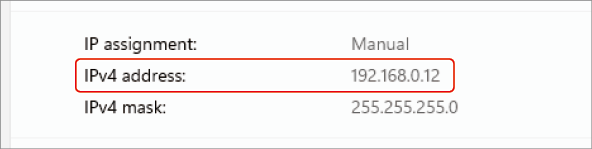

  1. Look for the number next to [Ipv4 address], which is the PC IP address.
