## Root mean square slope (RΔq, PΔq, WΔq)

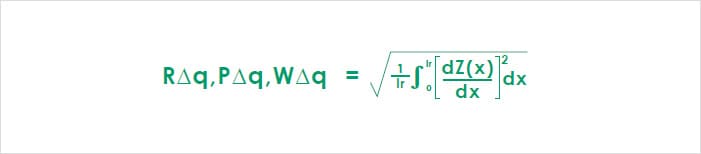

Root mean square slope indicates the root mean square of the local tilt dZ/dX along the sampling length.

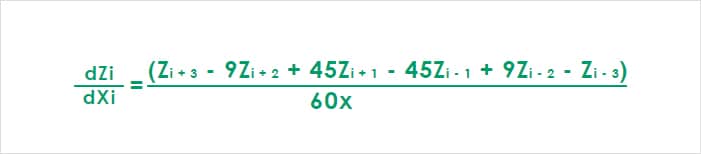

The local tilt refers to the derivative of Z(x). Derivatives generally use the seven-point formula shown below (because the first three points on either end lack sufficient data, three- or five-point formulae are used).

## Surface Roughness Parameters

This section explains the main parameters of ISO 4287:1997. Each parameter is classified according to primary profile (P), roughness profile (R), and waviness profile (W) in order to evaluate different aspects of the profile. (When the wavelengths of the waviness and primary profile components are compared, the surface roughness component is the asperity component of that which has the comparatively shorter wavelength.)
