Sku (Kurtosis) | Area Roughness Parameters

Sku (Kurtosis)

Sku value is a measure of the sharpness of the roughness profile.

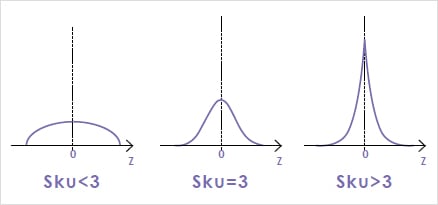

Sku<3: Height distribution is skewed above the mean plane.
Sku=3: Height distribution is normal. (Sharp portions and indented portions co-exist.)
Sku>3: Height distribution is spiked.
