LED Lighting Vision System Peripheral Equipment CA-D Series

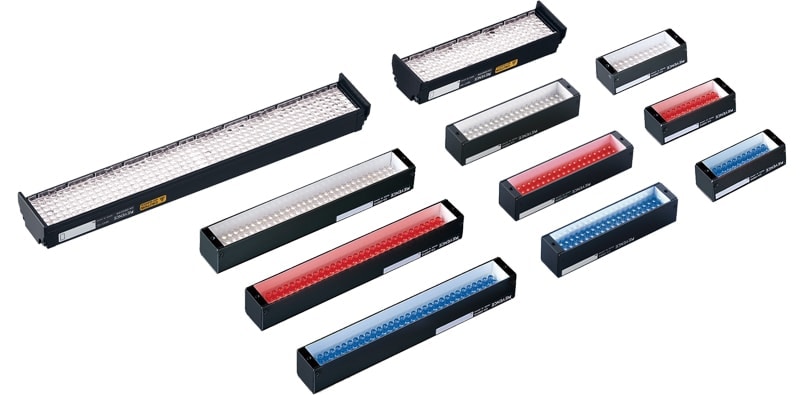

Bar Lights Strips of LED lights providing high flexibility for installation position and angle
CA-DB/CA-DBxW

Bar light illumination techniques

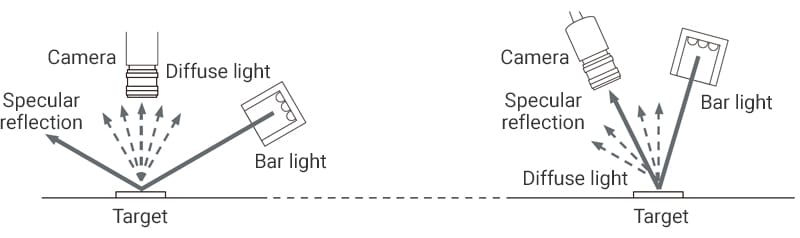

Camera/light arrangement

Bar lights can be used to apply a strip of light along a target edge. Depending on the angle of the light and the camera, the bar light can be used to enhance or reduce specular reflection from a target. For highlighting a feature with specular reflection (such as the tip of a pin), the direct reflection of light has to come back into the camera. For removing specular reflection (sometimes referred to as hotspots), the direct line of reflection needs to be away from the camera.

High-intensity model equipped with micro lenses

A high-intensity model equipped with micro lenses (CA‑DBxW) has been added to the lineup. Compared to the white type, this model achieves a light intensity that is approximately four times that of the conventional model. * This model can provide high-intensity lighting over a wide area. Also, no screws are needed to fix the diffusion plate (included) of the high-intensity model in place, which eliminates concerns regarding the screws falling out due to vibrations.

  • *Typical value with an LWD of 50 mm 1.97"

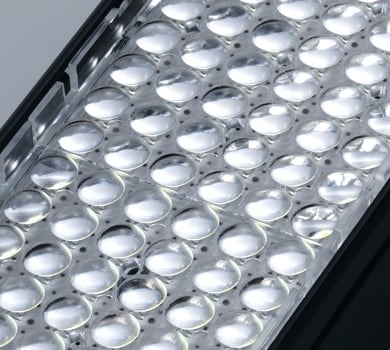

Newly developed micro lenses

Application

Plastic parts on a conveyor

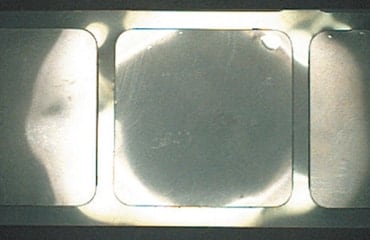

With standard lighting

The edges of the plastic part are unclear.

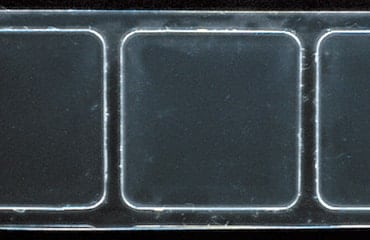

With bar lights

The edges have high contrast and are clearly defined.

Surface processing detection

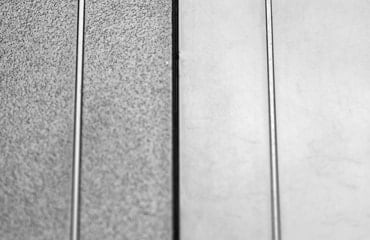

With standard lighting

It was possible to understand the surface processing differences, but the individuality of the workpieces led to color variations, which made it difficult to perform stable distinctions.

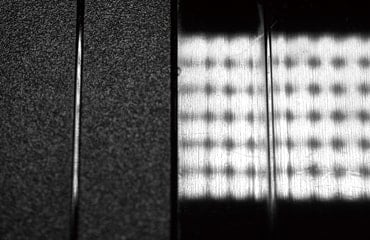

With bar lights

Specularly reflecting the bar light makes the differences in luster clear, which enables distinctions that ignore the color variations.
