LED Lighting Vision System Peripheral Equipment CA-D Series

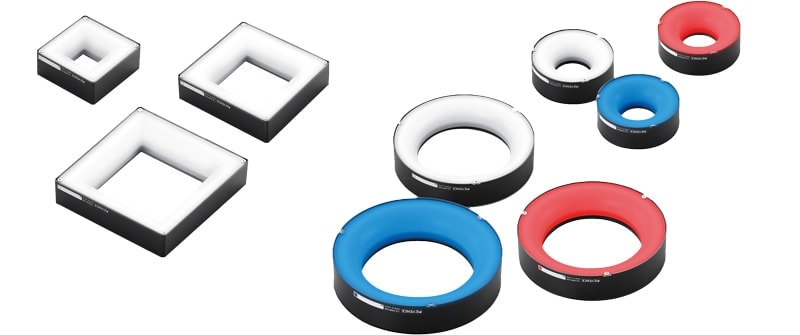

Multi-angle Lights (Ring/Square) Combines the principals of ring, dome and low angle light sources into one light.

Uniform illumination equivalent to dome lighting

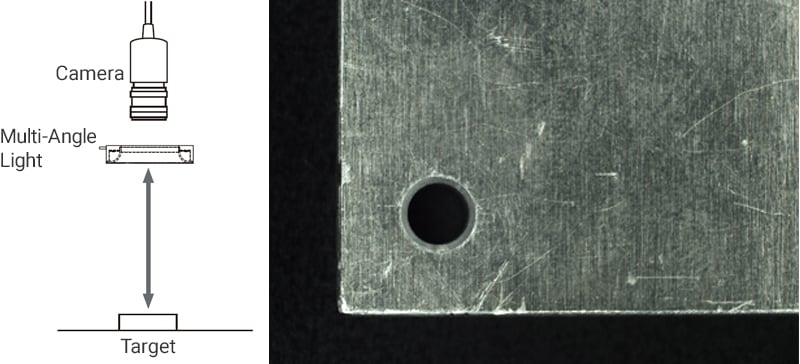

When the LWD is far

LWD: 150 mm 5.91"

When the light to target distance is far, the multi-angled, diffused light is applied across the entire target. This creates a uniform illumination effect without irregularities similar to using a dome light source.

Edge enhancement illumination equivalent to low angle lighting

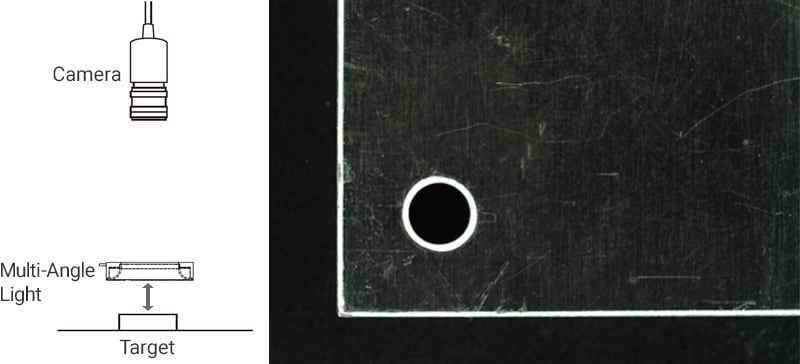

When the LWD is close

LWD: 10 mm 0.39"

When the light to target distance is short, the light emitted at a shallow angle reflects directly back to the camera. This causes the edges of the target to be highlighted, creating an effect similar to using a low angle light source.

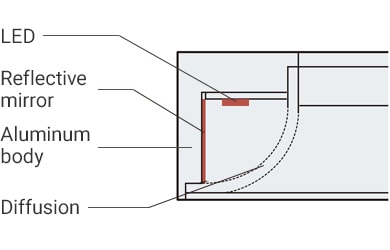

High-intensity mounting of power LEDs

Since LEDs are mounted at high intensity (narrow pitch), uniform high-intensity light is generated.

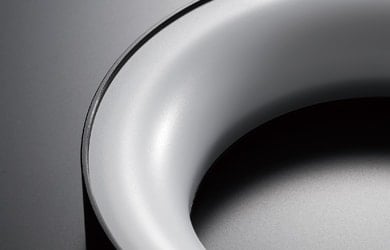

Matte-finished diffusion plate

To obtain maximum diffusion effect, the entire area of the diffusion plate has a matte finish.


Inside of a plastic cap

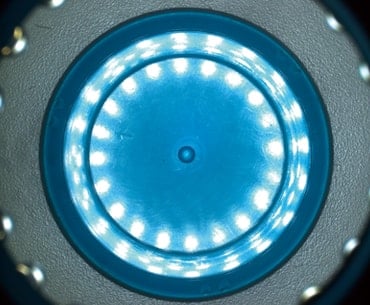

With standard lighting

LED reflection/imprint is seen by camera.

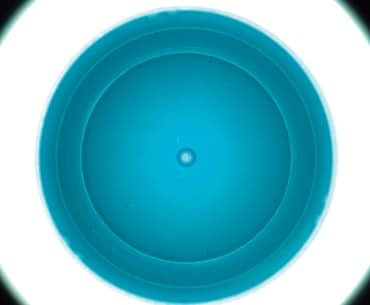

With multi-angle light (Ring)

Multi-angle, diffused light is radiated around the inner surface to give uniform illumination.

BGA/solder ball inspection

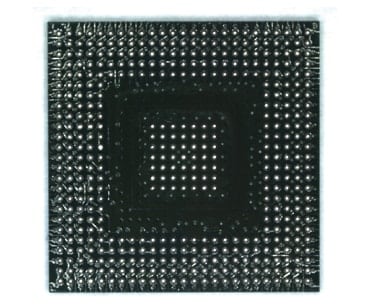

With standard lighting

Due to the differences in solder ball shape and size their appearance is inconsistent.

With multi-angle light (Square)

The multi-angle, diffused light results in consistent illumination of all the solder balls and an overall brighter image.
