LED Lighting Vision System Peripheral Equipment CA-D Series
![](/Images/peripheral_mv_img_02_1863312.png)
LumiTraxTM Specular Reflection Lights High-speed intelligent bar lights for line scan cameras.
CA-DZWxX
![](/Images/peripheral_ca_dzwxx_img_01_1863215.jpg)
The lights come equipped with a built-in control IC which synchronizes with high speed image capture from line scan cameras supporting LumiTraxTM without the need for complicated external operation.

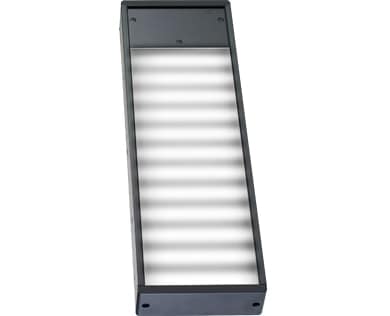

Creating a Stripe Pattern
Creates a stripe pattern by changing phases up to 142,800 lines/second in synchronization with image capture.
![](/Images/peripheral_ca_dzwxx_img_02_1863216.jpg)
Example Images Captured with LumiTraxTM Specular Reflection Mode
Burrows/uneven surfaces
![](/Images/peripheral_ca_dzwxx_img_03_1863217.jpg)
Streaks
![](/Images/peripheral_ca_dzwxx_img_04_1863218.jpg)
Abrasions
![](/Images/peripheral_ca_dzwxx_img_05_1863219.jpg)
