Lenses
for Machine Vision
Vision System Peripheral Equipment CA-L Series

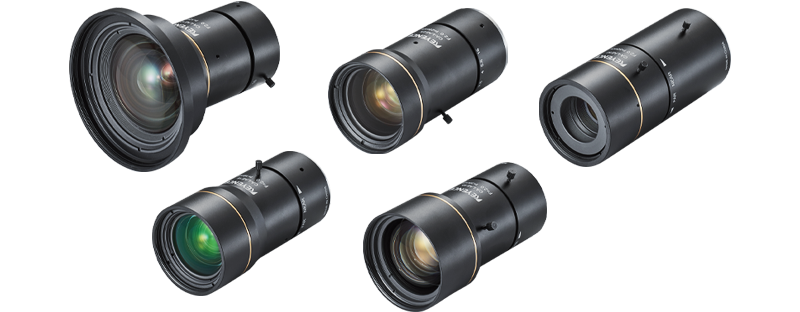

Ultra High-Resolution, Low-Distortion Lens Supporting 4/3" Image SensorsLarge format lenses supporting 21 megapixel, 4/3", ultra high-pixel cameras.
CA-LAE

High-resolution design

Even though these lenses support full-size C-mounts, they guarantee a resolution of 200 cycles/mm at the center of the lens, which enables the capturing of images with higher contrast. These lenses bring out the full capabilities of 4/3", 21 megapixel cameras.

21 megapixel camera image

CA-LAE

A clear image with minimal distortion right up to the edge of the image is obtained.

CA-LHW (lens supporting 1" images)

At the edge of the image, both the contrast and distortion are reduced.

4/3" image dedicated design

Achieves a TV distortion of 0.05% while compatible with 4/3" images (CA-LAE16). Also supports a working distance of 0.07 m 0.2' (CA-LAE12) while reducing aberration over a broad range up to infinite distance.
