Handheld Probe Coordinate Measuring Machine

XM series

Catalogs View Catalog

Flexibility Handheld Probe Coordinate Measuring Machine XM series

[Anywhere] Various Measurement Styles Measurement Capability for Any Situation

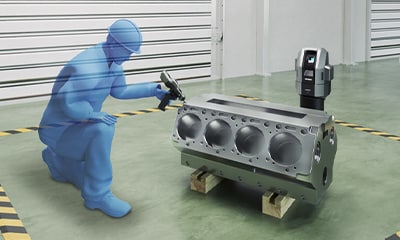

Worksite

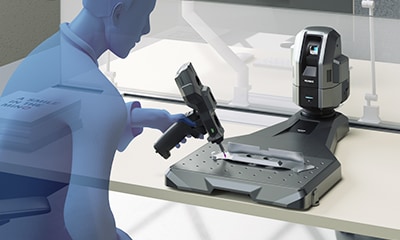

Office

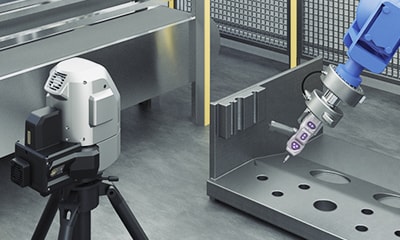

Robotic Cell

Flexible Installation

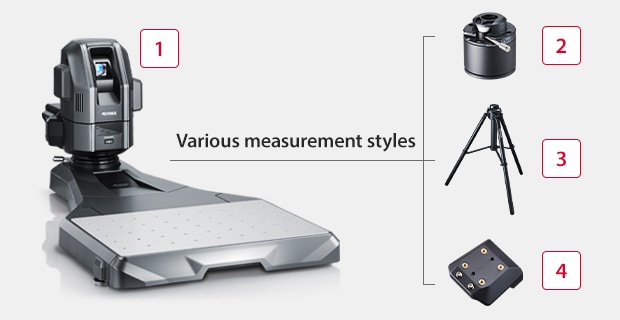

A wide-variety of available attachments to suit the installation needs of the actual worksite.
Whether in an office or on shop floors, the XM-5000 enables measurement in any setting.

  • 1
    Stage
  • 2
    Extension pole
  • 3
    Tripod
  • 4
    Probe mounting attachment

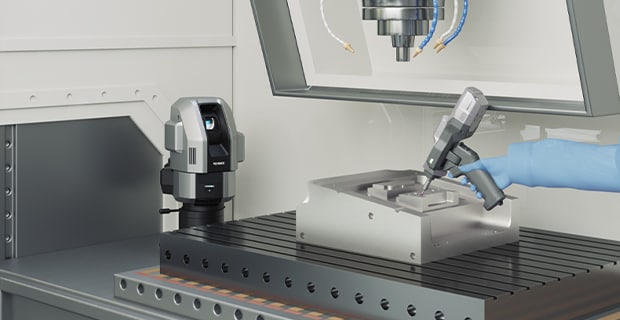

Advantages of In-Machine Measurement with the XM-5000

  • High-accuracy measurement by anyone
  • Complex measurements and GD&T measurements
  • Measurement with a calibrated measuring instrument
  • Faster measurement of target locations with less processing stop loss

Disadvantages of Conventional Tools

Hand Tools

  • Unable to measure complex shapes
  • Unable to measure GD&T
  • Measurement results vary between operators

On-Device Measurement Touch Probes

  • Measurement limited to machining axis
  • Difficult to configure measurement settings
  • Measurement takes time, so processing takes longer

[Anywhere] Environmental Resistance Install Wherever Measurements are Needed

On-Site Usability with No Need for a Quality Lab

Paying close attention to the measurement unit materials and device design, KEYENCE wanted to make a CMM that can be used anywhere. With no need for an environmentally controlled measuring room, the XM-5000 can be installed wherever necessary.

  • 1

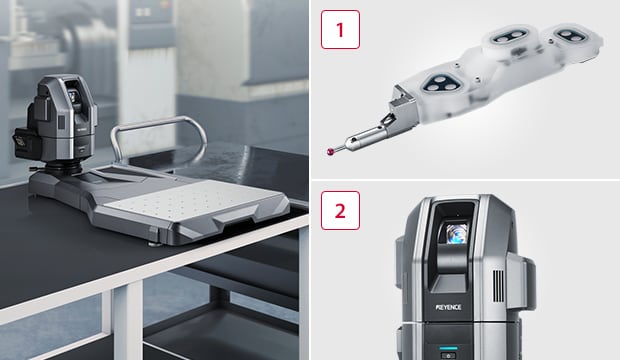

    Probe internals (quartz glass)
  • 2
    Specially designed ultra-robust camera

Robust Design for Use in Adverse Environments

The XM-5000 is designed to be durable and rigid for use even in harsh environments like manufacturing sites.

[Built-in environment diagnosis function]
A high-accuracy sensor in the camera unit diagnoses whether ambient vibrations will adversely affect measurement.

Accurate Measurement Even with Temperature Changes

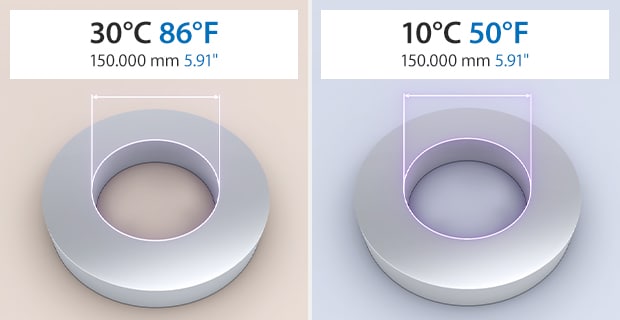

The XM-5000 includes a temperature compensation function that ensures measurement targets are measured under the same conditions, just like a climate-controlled measuring room, even if the ambient temperature is not constant.

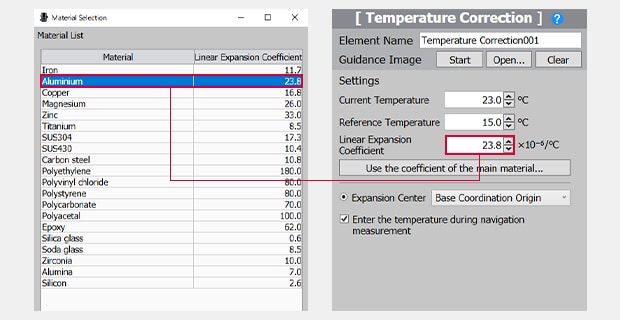

Simply select the current temperature and the material, and the device will automatically compensate for the standard temperature dimensions.
