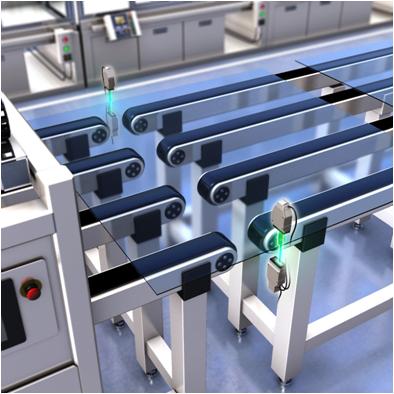

Positioning of LCD glass

Positioning of LCD glass

Glass manufacturing

High-speed stable measurements of edge defects in a liquid crystal substrate are possible

Benefit

Even highly transparent targets can be tracked due to the green LED and adjustable threshold

LEARN THE DETAILS OF THE PRODUCT

  • High-performance optical micrometers deliver the speed and accuracy required for dynamic measurement of diameter, gap, and width. This LED based micrometer offers improved durability over a typical laser micrometer. Single and multi-axis options are available.

  • Measure diameter, gap, and width without touching the target. This cost-performance model is ideal for simple inline or offline measurements. Like the LS-9000, this system uses an LED design that minimizes maintenance and improves lifespan over a conventional laser mic.

  • High-speed laser scan micrometer operates with up to 4 sets of sensor heads and a single controller. Provides sub micron measurements at production line speeds.

  • Laser-scanning Outer Diameter Measurement Device that can measure large diameter
